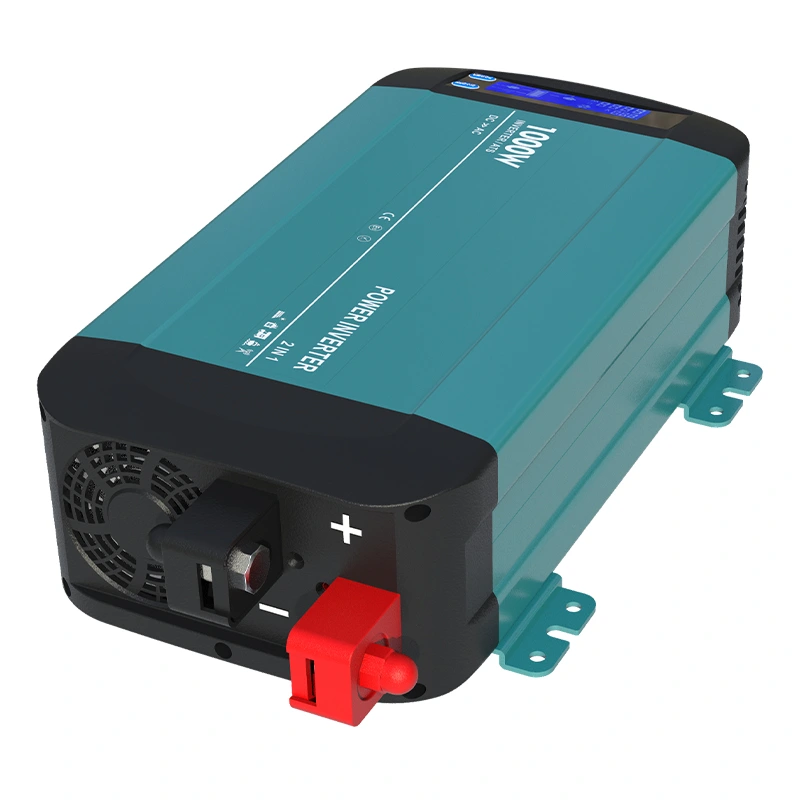

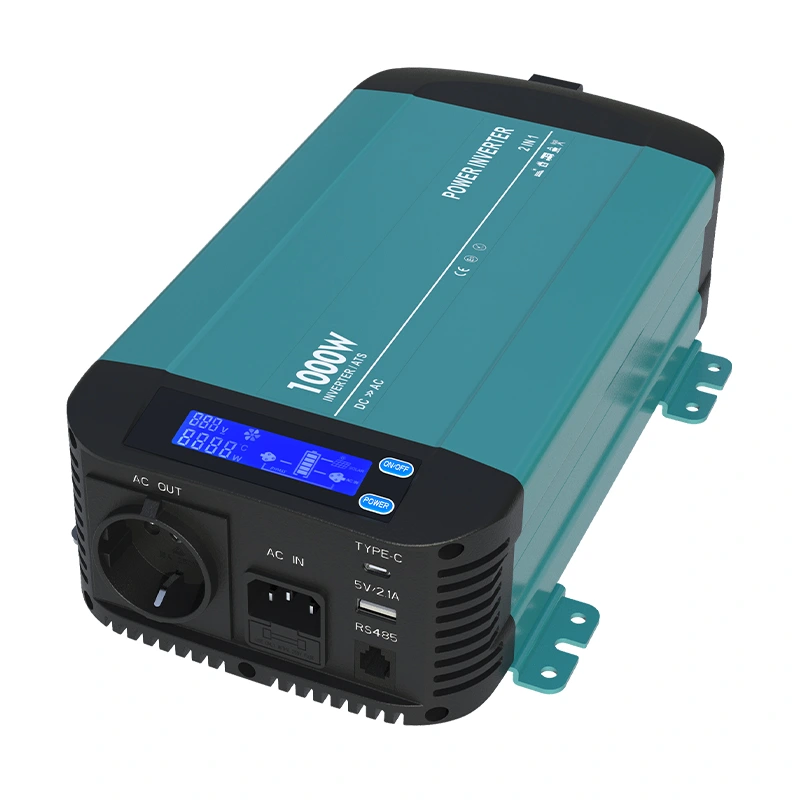

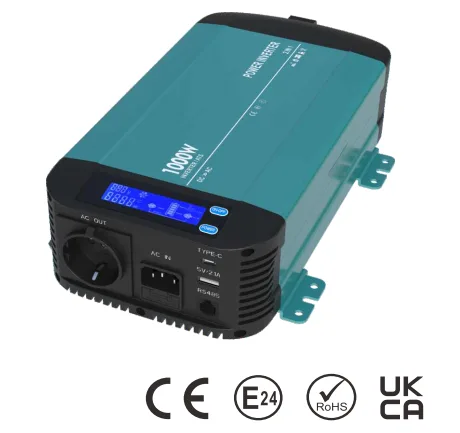

1000w Pure Sine Wave Inverter With Bypass Function HK1000PT

Model:HK1000PT

With years of experience in production Pure Sine Wave Inverter, Kosun can supply a wide range of Pure Sine Wave Inverter. High quality 1000w Pure Sine Wave Inverter With Bypass Function HK1000PT can meet many applications, if you need, please get our online timely service about it.

Send Inquiry PDF DownLoad

Product Description

The following is the introduction of high quality Pure Sine Wave Inverter, hoping to help you better understand 1000w Pure Sine Wave Inverter With Bypass Function HK1000PT. Welcome new and old customers to continue to cooperate with us to create a better future!

Features:

●Pure sine wave output (THD<5%)

●POWER ON/OFF Switch

●High Efficiency Up to 92%

●Built-in ATS and AC circuit breaker

●Transfer time less than 1 6ms .

●USB:5V /2.1A / Type-C:Max 35W

●RS-485 communication

●Input & Output fully isolation

●Input Protection: Reverse Polarity (Fuse)/ Under Voltage / Over Voltage

●Output Protection: Short Circuit/ Overload/ Over Temperature / Over Voltage

MODEL		HK1000PT-112	HK1000PT-124	HK1000PT-212	HK1000PT-224
Output	Rating Power	1000 Watt
	Peak Power(Max.2 sec.)	2000 Watt
	Waveform	Pure Sine Wave
	Efficiency(Min.)	89%
	Output Voltage(@rated VDC)	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Output Frequency	50/60HZ±1
	Total Harmonic Distortion(THD)	<5%		<5%
Output	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.0~16.0VDC	20.0~32.0VDC	10.0~16.0VDC	20.0~32.0VDC
	No load Power Consumption	@12.8VDC	@25.6VDC	@12.8VDC	@25.6VDC
	On Mode@No Load Mode	<0.42A	<0.21A	<0.42A	<0.21A
	Fuse	45A×3	45A×2	45A×3	45A×2
AC Input	AC Range	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Frequency Factory Setting	50/60 HZ
	Transfer Switch	Standard ATS:Inverter to utility AC:8~10ms.;Utility AC to inverter:16~25ms.
Protection	BAT.Low Alarm±0.2V	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	BAT.Low Shut-down±0.2V	10.0VDC	20.0VDC	10.0VDC	20.0VDC
	BAT.Low Restart±0.2V	12.5VDC	25.0VDC	12.5VDC	25.0VDC
	BAT.High Shut-down±0.2V	16VDC	32VDC	16VDC	32VDC
	BAT.High Restart±0.2	15.8VDC	31.6VDC	15.8VDC	31.6VDC
	Input Protection	Reverse Polarity(Fuse)/Under Voltage/Over Voltage Protection /AC over current(Breaker)
	Output Protection	Short Circuit /Overload/Over Temperature/Over Voltage
Environment	Working Temp.	0~+60℃
	Storage Temp.	0~+70℃
	Relative Humidity	Max.90%,non-condensing
Safety&EMC	Safety Standards	EN62109-1:2010,EN62109-2:2011
	EMC Standards	EN 55032:2015+A1:2020;EN 55035:2017+A11:2020;EN IEC61000-3-2:2019+A1:2021
		EN61000-3-3:2013+A1:2019+A2:2021
	E-mark	ECE-R10
Control&Signal	LCD Display	Input voltage/output wattage/temerature/output voltage/cooling/work status
	Remote control	RS485
Others	Dimension(W×H×D)	309×182×87 mm
	Weight	3.38KG
	Cooling	Thermal control fan
	Communication Port	RS-485(RJ-11 type connector)
Note	1.Value test by input voltage at 12.8V/25.6V/50.4V;2.All the parameters are measured at rated load, 25 of ambient temperature;3.the specifications are subject to change without prior notice for further improvement of products.

Mechanical Drawings:(309x182x87 mm)

MODEL :HK1000PT
