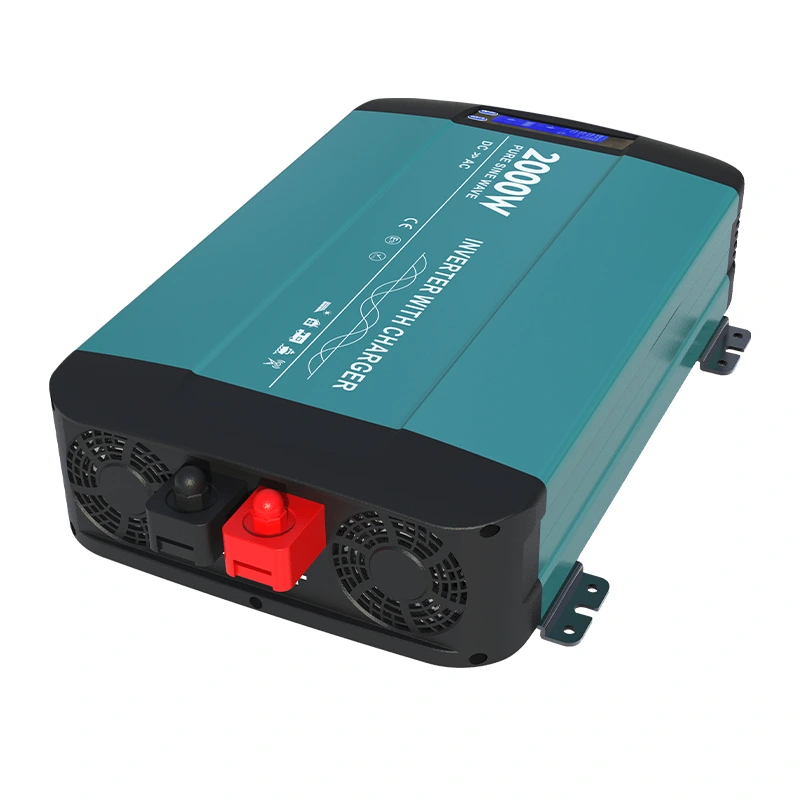

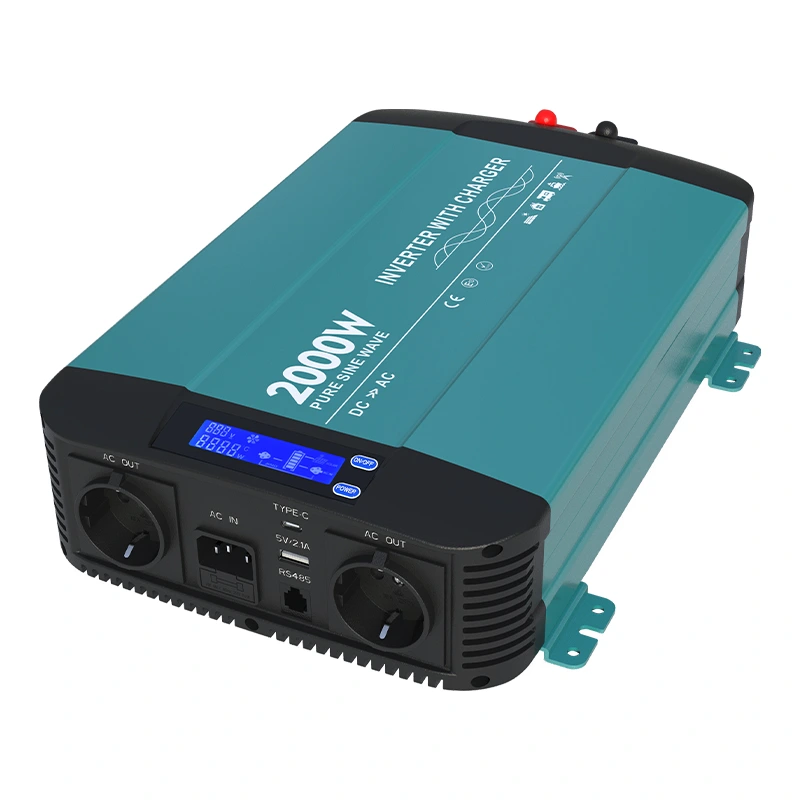

2000w Pure Sine Wave Inverter With Charger HK2000PC

Model:HK2000PC

You can rest assured to buy customized 2000w Pure Sine Wave Inverter With Charger HK2000PC from Kosun. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry PDF DownLoad

Product Description

With years of experience in production Pure Sine Wave Inverter, Kosun can supply a wide range of 2000w Pure Sine Wave Inverter With Charger HK2000PC. High quality 2000w Pure Sine Wave Inverter With Charger HK2000PC can meet many applications, if you need, please get our online timely service about it.

Features:

●Pure sine wave output (THD<5%)

●POWER ON/OFF Switch

●High Eficiency Up to 92%

●Built-in ATS and AC circuit breaker

●Transfer time less than 16ms

●USB:5V /2.1A / Type-C:Max 35W

●RS-485 communication

●Input & Output fully isolation

●Input Protection: Reverse Polarity (Fuse)/ Under Voltage / Over Voltage

●Output Protection: Short Circuit/ Overload/ Over Temperature/ Over Voltage

MODEL		HKC2000P-112	HKC2000P-124	HKC2000P-212	HKC2000P-224
Inverter Mode
Input	Normal Voltage	12VDC	12VDC	12VDC	12VDC
	Input Voltage Range(±0.5V)	10.8~16VDC	21.6~32.0VDC	10.8~16VDC	21.6~32.0VDC
	Input Over-Voltage Protection(±0.5V)	16VDC	32VDC	16VDC	32VDC
	Input Under-Voltage Protection(±0.5V)	10VDC	20VDC	10VDC	20VDC
	Input Under-Voltage Warning(±0.5V)	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	No Load Current	<0.63A	<0.32A	<0.63A	<0.32A
Output	Continuous Output Power	2000W±5%
	Surge Power	Load 4000W(2 Sec)
	Frequency	50/60Hz±1Hz(setting by factory)
	Output Voltage	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Min.Efficiency(Full Load)	89%	89%	89%	89%
	Output Waveform	Pure Sine Wave(THD<5%)
Protection	Input Protection	Over/Under Voltage,Reverse Polarity(Internal Fuse)
	AC Output Protection	Short-Circuit,Overload
	AC Input Protection	30 Amp Circuit Breaker		16 Amp Circuit Breaker
	Temperature protection	Shutdown
Charger Mode
AC input	Nominal Voltage/Frequency	110VAC,50/60Hz(setting by factory)		230VAC,50/60Hz(setting by factory)
	Input Voltage Range	90~130VAC		180~260VAC
	Input Frequency Range	50Hz:47~53Hz/60Hz:57~63 Hz
	Efficiency(Max.)	>88%
	Power Factor Correction(PFC)	>0.95(Max.)
DC Output	Charging Current Range	Max.10A	Max.5A	Max.10A	Max.5A
	Max.Output Voltage	14.4VDC	28.8VDC	Max.14.4VDC	Max.28.8CDC
	Battery Control (3-stage Battery Chargers)	Bulk /Absorption /Float

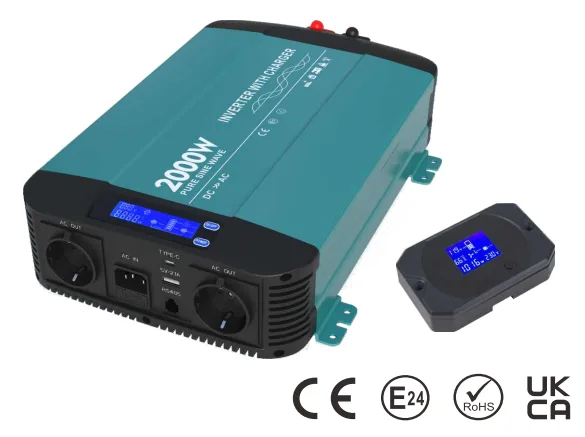

Signal and Control	Remote Control Panel (Optional)	LCD display
	Remote Control Terminal	RS485
	LCD display	voltage,wattage
	Relay Specification	30 Amp/120VAC@110V system		16Amp/250VAC@230V system
Environment
Temperature Range	Full Load	0~+40℃;60℃@70%power load
	Storage	0℃~70℃
Humidity Range		Max93%,Non-condensing
Cooling		Temperature &Load Controlled Cooling Fan
Others	Dimension (W×H×D)	439×252×88mmmm
	Weight	6.2KG
	Communication Port	RS-485(RJ-11 type connector),Ethernet(optional)

Mechanical Drawings:(439x252*88mm)

MODEL :HKC2000P

Charging Curve
