●Universal Ac input 12.0V-30.0V士0.2V For Solar/1 2.0V-15.BV士0.2V For car
●Compatible with Lead Acid, Li-ion, Gel and AGM batteries
●High efficiency and high reliability
●Battery type select function
●Protection: Short Circuit/ Over-temperature 1 Reverse polarity

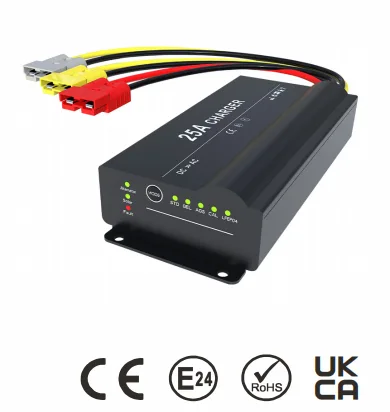

●E24/CE/RoHs approved
| Model | DCDC 1225B | ||||||
| lnput voltage | Solar charging | Cargenerator charging | |||||
| 12.0V-30.0V±0.2V | 12.0V-15.8V±0.2V | ||||||
| Output voltage | Battery mode | ||||||
| GEL | CAL | STD | AGM | LiFePo4 | |||
| 14.2V±0.2V | 15.2V±0.2V | 14.4V±0.2V | 14.8V±0.2V | 14.6V±0.2V | |||
| Output current | 25A±0.5A | ||||||
| Charging efficiency | Full load ≥90%;Maximum efficiency reaches 97% | ||||||
| Protection function | Short circuit protection |
When there is a short circuitin the output,the fault light remains on;Long term short circuit,charger restarts every90 seconds;Remove the short circuit and the charger will resume output after 90 seconds |
|||||
| Over temperature protection |
When the temperature of the intemal casing exceeds 70℃,the fault light flashes;the charger will automaticallyadjust the output power to maintain a constant temperature of 70℃ inside and outside the machine. |
||||||
| Reverse protection |
When the polarity of the input and output terminals is reversed,the charger do not work;after olarity correction,the charger retums to normal operation. |
||||||
| Working mode |

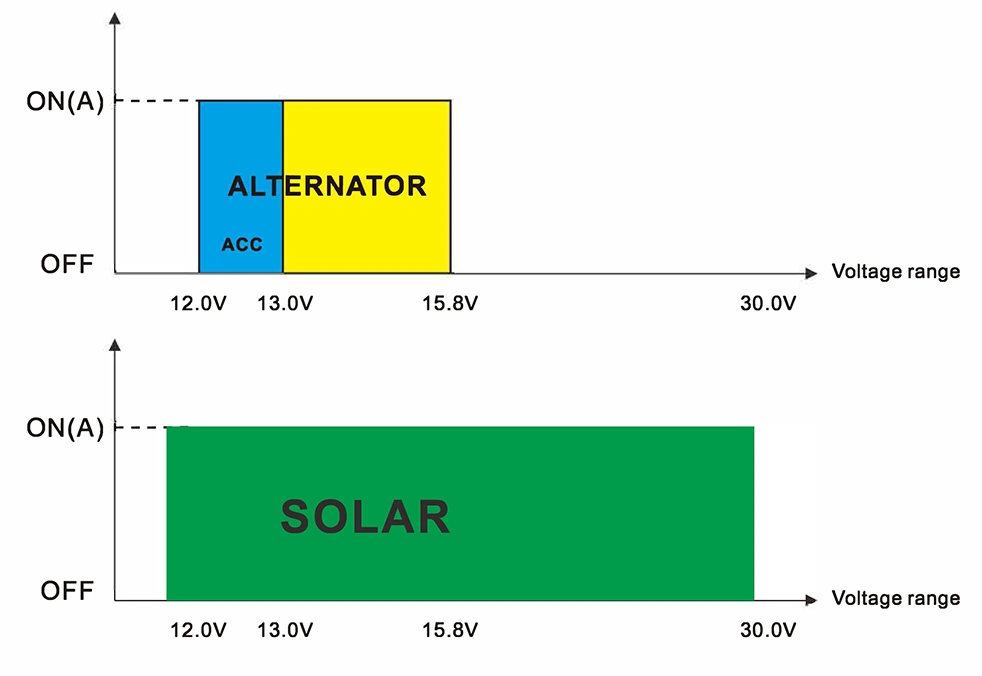

1.Solar charging(default priority) 2.Car generator charging 3.Five speed battery type adjustment |
||||||
| Working temperature | 0℃~45℃ | ||||||
| Relative humidity | 45%~75%RH | ||||||
|
Storage temperature |
-20℃~45℃ | ||||||
| Port type | 30A Anderson interface*3,with a wire length of approximately 30CM | ||||||

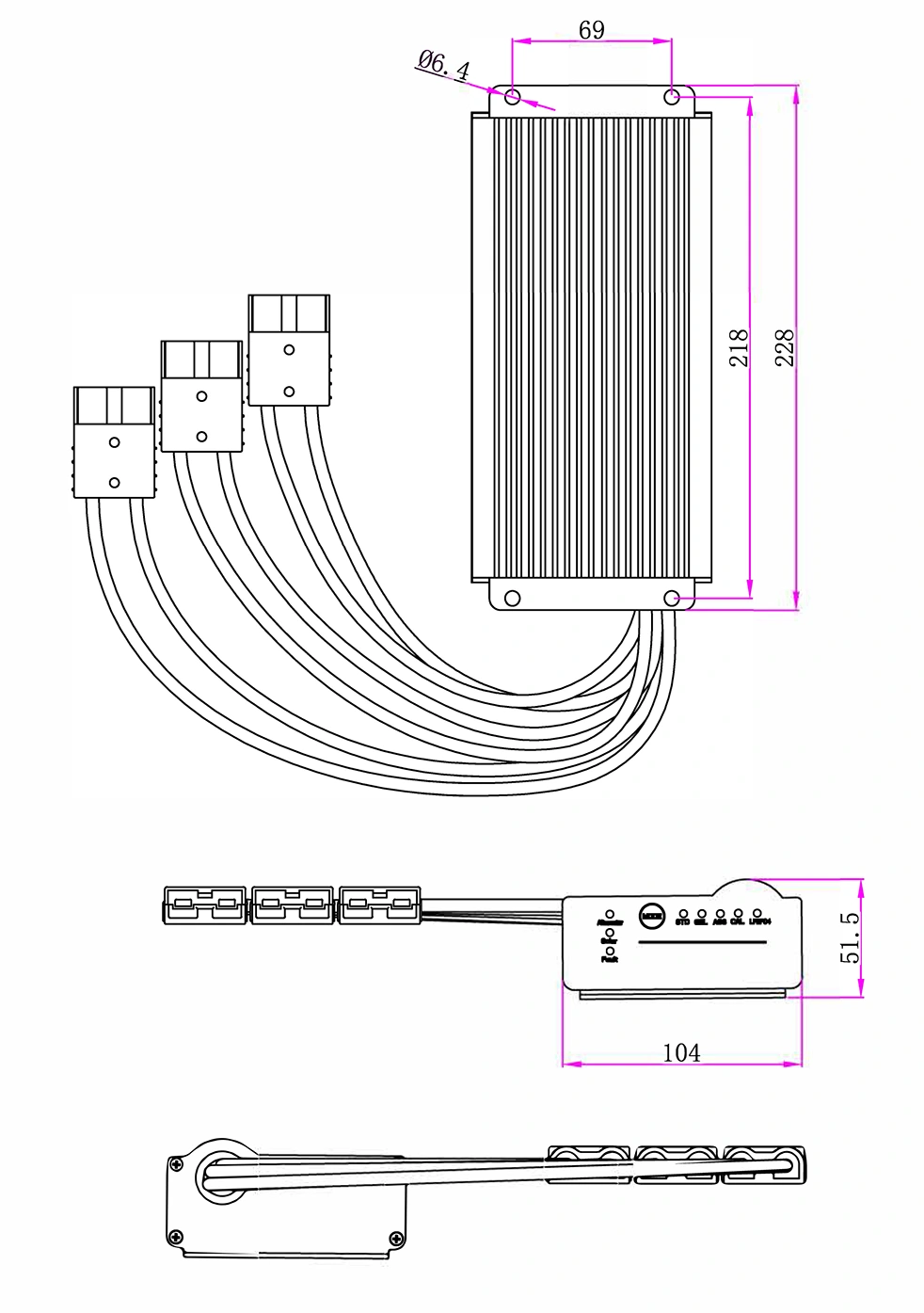

| Product size | 180*104*51MM | ||||||
| Product weight | 1.2KG | ||||||
| Outside carton | 37*30.5*32.5CM(L*W*H) | ||||||
| Shipping weight | 6 PCS/CTN,7.2KG/9.35KG | ||||||
MODEL:DCDC1225B
