●Universal Ac input 12.0V-30.0V士0.2V For Solar/12.0V-15.BVH0.2V For car
●Compatible with Lead Acid, Li-ion, Gel and AGM batteries
●High efficiency and high reliability
●Battery type select function
●Protection: Short Circuit/ Over-temperature/ Reverse polarity
●E24/CE/RoHs approved
| Model | DCDC 1240B | |||||
| Input voltage | Solar charging | Car generator charging | ||||
| 12.0V-30.0V±0.2V | 12.0V-15.8V±0.2V | |||||
| Output voltage | Battery mode | |||||
| GEL | CAL | STD | AGM | LiFePo4 | ||
| 14.2V±0.2V | 15.2V±0.2V | 14.4V±0.2V | 14.8V±0.2V | 14.6V±0.2V | ||
| Output current | 40A±0.5A | |||||
| Charging efficiency | Full load≥90%;Maximum efficiency reaches 97% | |||||
| Protection function |
Short circuit protection |
When there is a short circuit in the output,the fault light remains on;Long term short circuit,charger restarts every 90 seconds;Remove the short circuit and the charger will resume output after 90 seconds |
||||
|
Over temperature protection |
When the temperature of the internal casing exceeds 70℃,the fault light flashes;the charger will automatically adjust the output power to maintain a constant temperature of 70℃ inside and outside the machine. |
|||||
| Reverse protection |
When the polarity of the input and output terminals is reversed,the charger do not work;after olarity correction,the charger returns to normal operation. |
|||||
| Working mode |
1.Solar charging(defaultpriority) 2.Car generator charging 3.Five speed battery type adjustment |
|||||
|
Working temperature |
0℃~45℃ | |||||
| Relative humidity | 45%~75%RH | |||||
|
Storage temperature |
-20℃~45℃ | |||||
| Port type | 50A Anderson interface*3,with a wire length of approximately 30CM | |||||
| Product size | 200*130*55MM | |||||
| Product weight | 1.55KG | |||||
| Outside carton | 44*31*32.5CM(L*W*H) | |||||
| Shipping weight | 6 PCS/CTN,9.3KG/11.7KG | |||||

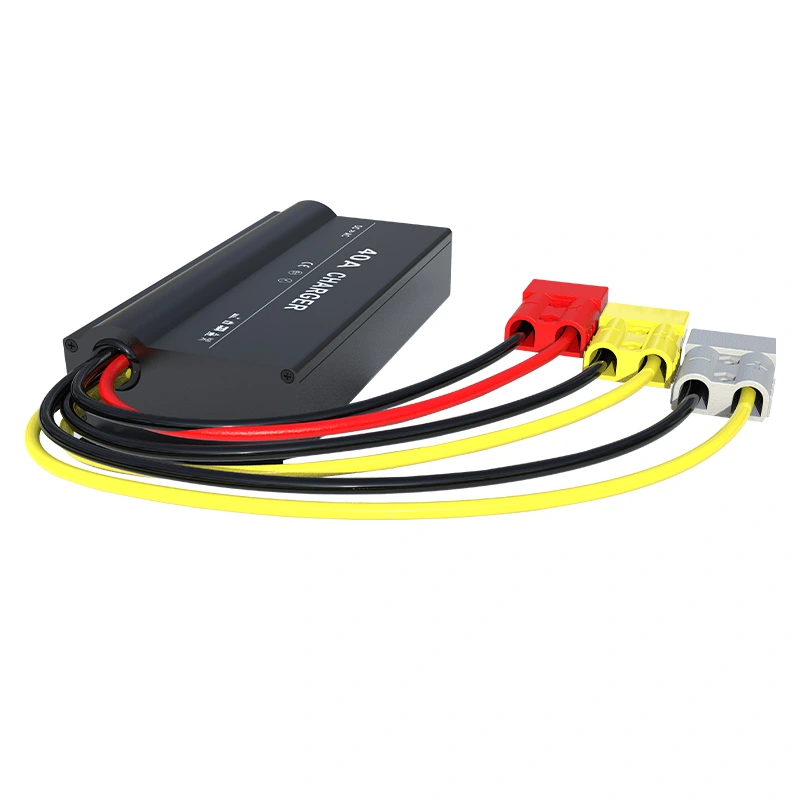

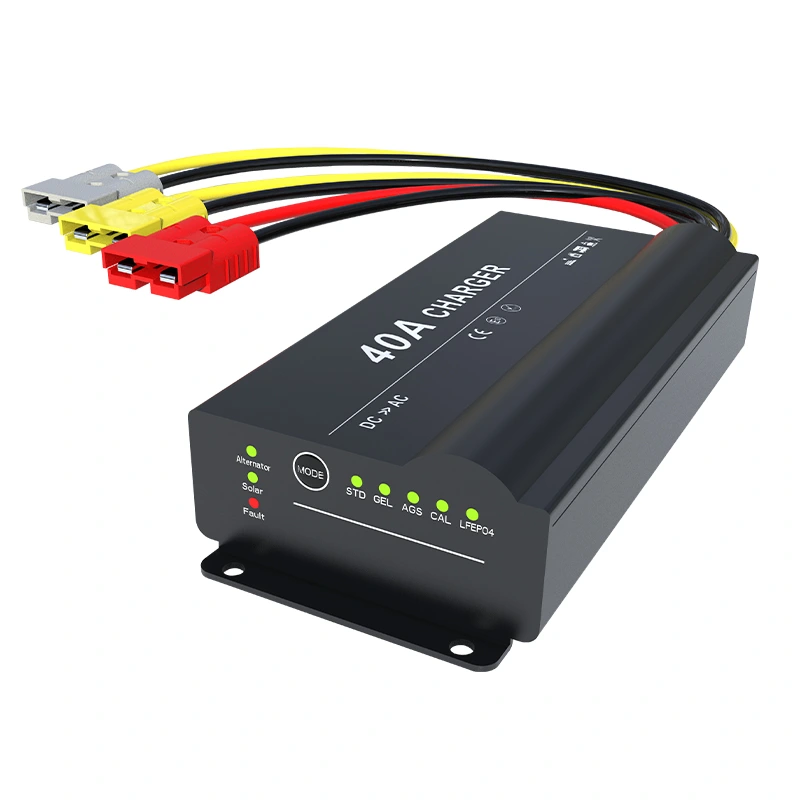

MODEL :DCDC1240B
