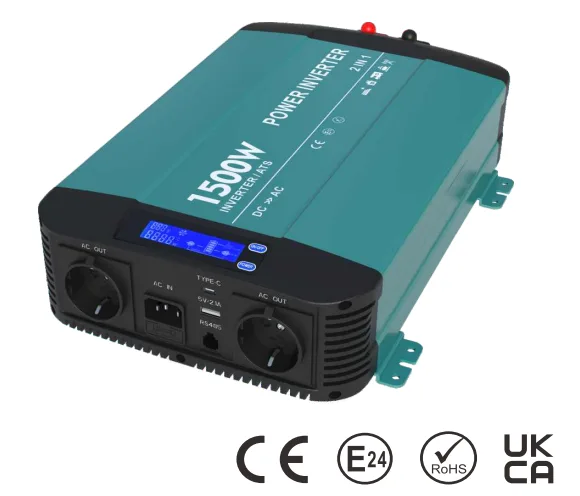

●Pure sine wave output (THD<5%)
●POWER ON/OFF Switch
●High Efficiency Up to 92%
●Built-in ATS and AC circuit breaker
●Transfer time less than 1 6ms
●USB:5V /2.1A / Type-C:Max 35W
●RS-485 communication
●Input & Output fully isolation
●Input Protection: Reverse Polarity (Fuse)/ Under Voltage / Over Voltage
●Output Protection: Short Circuit/ Overload / Over Temperature / Over Voltage
| MODEL | HK1500PT-112 | HK1500PT-124 | HK1500PT-212 | HK1500PT-224 | ||||||
| Output | Rating Power | 1500 Watt | ||||||||
| Peak Power(Max.2 sec.) | 3000 Watt | |||||||||
| Waveform | Pure Sine Wave | |||||||||
| Efficiency(Min.) | 89% | |||||||||
| Output Voltage(@rated VDC) | 100/110/115/120VAC±10% | 200/220/230/240VAC±10% | ||||||||
| Output Frequency | 50/60HZ±1 | |||||||||
| Total Harmonic Distortion(THD) | <5% | <5% | ||||||||
| Output | DC Voltage | 12VDC | 24VDC | 12VDC | 24VDC | |||||
| Voltage Range | 10.0~16.0VDC | 20.0~32.0VDC | 10.0~16.0VDC | 20.0~32.0VDC | ||||||
| No load Power Consumption | @12.8VDC | @25.6VDC | @12.8VDC | @25.6VDC | ||||||
| On Mode@No Load Mode | <0.63A | <0.32A | <0.63A | <0.32A | ||||||
| Fuse | 45A×4 | 45A×2 | 45A×4 | 45A×2 | ||||||
| AC Input | AC Range | 100/110/115/120VAC±10% | 200/220/230/240VAC±10% | |||||||
| Frequency Factory Setting | 50/60 HZ | |||||||||
| Transfer Switch | Standard ATS:Inverter to utility AC:8~10ms.;Utility AC to inverter:16~25ms. | |||||||||
| Protection | BAT.Low Alarm±0.2V | 10.8VDC | 21.6VDC | 10.8VDC | 21.6VDC | |||||
| BAT.Low Shut-down±0.2V | 10.0VDC | 20.0VDC | 10.0VDC | 20.0VDC | ||||||
| BAT.Low Restart±0.2V | 12.5VDC | 25.0VDC | 12.5VDC | 25.0VDC | ||||||
| BAT.High Shut-down±0.2V | 16VDC | 32VDC | 16VDC | 32VDC | ||||||
| BAT.High Restart±0.2 | 15.8VDC | 31.6VDC | 15.8VDC | 31.6VDC | ||||||
| Input Protection | Reverse Polarity(Fuse)/Under Voltage/Over Voltage Protection /AC over current(Breaker) | |||||||||
| Output Protection | Short Circuit /Overload/Over Temperature/Over Voltage | |||||||||
| Environment | Working Temp. | 0~+60℃ | ||||||||
| Storage Temp. | 0~+70℃ | |||||||||
| Relative Humidity | Max.90%,non-condensing | |||||||||
| Safety&EMC | Safety Standards | EN62109-1:2010,EN62109-2:2011 | ||||||||
| EMC Standards | EN 55032:2015+A1:2020;EN 55035:2017+A11:2020;EN IEC61000-3-2:2019+A1:2021 | |||||||||
| EN61000-3-3:2013+A1:2019+A2:2021 | ||||||||||
| E-mark | ECE-R10 | |||||||||
| Control&Signal | LCD Display | Input voltage/output wattage/temerature/output voltage/cooling/work status | ||||||||
| Remote control | RS485 | |||||||||
| Others | Dimension(W×H×D) | 279×252×88mm | ||||||||
| Weight | 4.7KG | |||||||||
| Cooling | Thermal control fan | |||||||||
| Communication Port | RS-485(RJ-11 type connector) | |||||||||
| Note |
1.Value test by input voltage at 12.8V/25.6V/50.4V;2.All the parameters are measured at rated load, 25 of ambient temperature;3.the specifications are subject to change without prior notice for further improvement of products. |
|||||||||
MODEL :HK1 500PT
