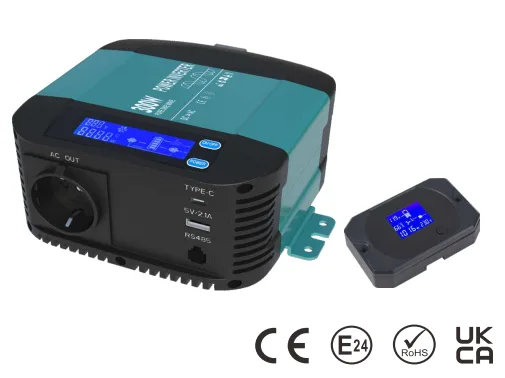

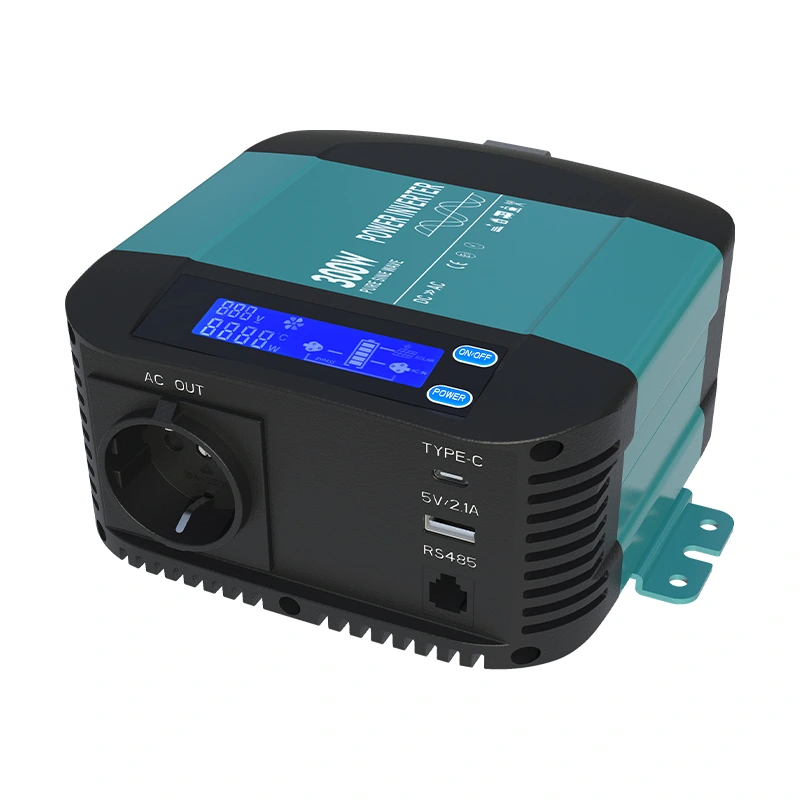

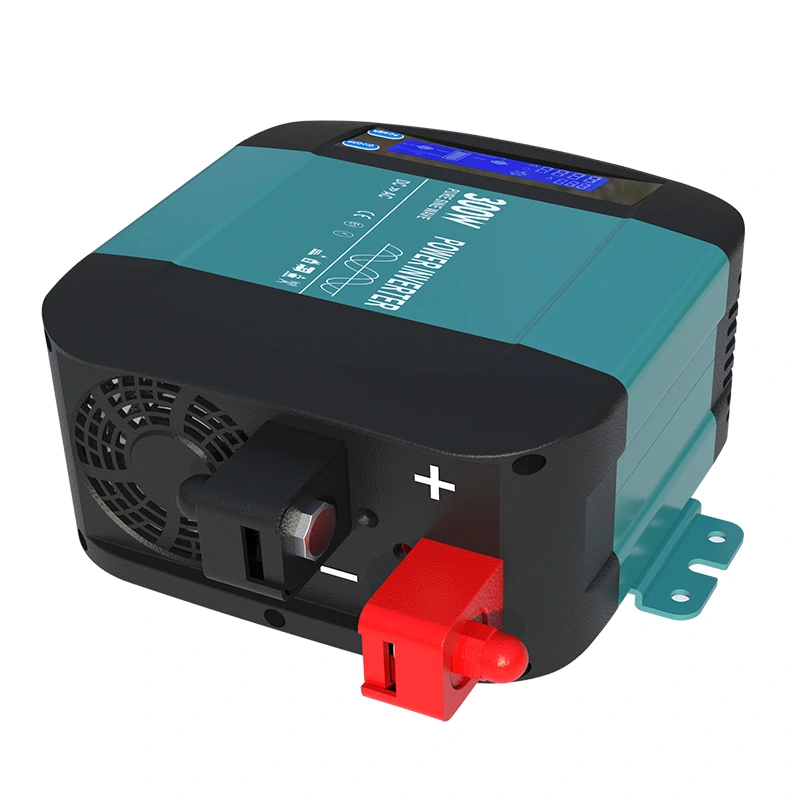

300w Pure Sine Wave Inverter HK300P

Model:HK300P

You can rest assured to buy customized 300w Pure Sine Wave Inverter HK300P from Kosun. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry PDF DownLoad

Product Description

The following is the introduction of high quality Pure Sine Wave Inverter, hoping to help you better understand 300w Pure Sine Wave Inverter HK300P. Welcome new and old customers to continue to cooperate with us to create a better future!

Features:

●Pure sine wave output

●Power ON/ OFF Switch

●Remote controller RS485 Connetor

●Input & Output fully isolation

●Temperature controlled cooling fan

●Built in advance microprocessor to provide friendly interface

●Input protection: Reverse Polarity (Fuse)/ Under Voltage / Over Voltage

●Output protection: Short Circuit/ Overload / Over Temperature

●E13/CE/RoHs approved

MODEL		HK300P-112	HK300P-124	HK300P-212	HK300P-224
Output	AC Voltage	100/110/115/120VAC		200/220/230/240VAC
	AC Regulation	±10%
	Rated Power	300Watt
	Surge Power(1 sec)	600Watt
	Output Wave form	Pure Sine Wave(THD<5%@Normal Load)
	Frequency	50/60Hz±1 setting by factory
Input	DC Voltage	12VDC	24VDC	12VDC	24VDC
	Voltage Range	10.5-16VDC	21.0-32.0VDC	10.5-16VDC	21.0-32.0VDC
	NO Load Current	≤0.35A	≤0.17A	≤0.35A	≤0.17A
	Elficiency(Min.)	89%	89%	89%	89%
	Fuse	45A×1	45A×1	45A×1	45A×1
Protection	Input Under-Voltage Protection	10.5VDC±0.2	21.0 VDC±0.5	10.5VDC±0.2	21.0 VDC±0.5
	Input Under-Voltage Recovery	12.5VDC±0.2	25.0 VDC±0.5	12.5VDC±0.2	25.0 VDC±0.5
	Input Over-Voltage Protection	16VDC±0.2	32.0 VDC±0.5	16VDC±0.2	32.0 VDC±0.5
	Input Over-Voltage Recovery	15.8VDC±0.2	31.6VDC±0.5	15.8VDC±0.2	31.6VDC±0.5
	Over Temperature	Shutdown output voltage.restart to recover
	Output Short	Shutdown output voltage,restart to recover
	Over Temperature	Heat sink temperature over 75℃±2℃ shutdown output voltage
	DC Input Reverse Polarity	By fuse or By Mosfet
Environment	Operating Temp.	0~+40℃;60℃@70%power load
	Storage Temp	0℃-+70℃
	Storage Temp.&Humidity	10-95%RH
Control & Signal	Accessory(Optional)	remote Control
	LCD Display	Input voltage/output wattage/temerature/output voltage/cooling/work status
	Remote Control Termina	R485
Others	Dimension(W×H×D)	259×182×87mm
	Product Weight	1.6kgs
	Packing	Per product 2kg;Per Carton 5 pcs/10kg
	Cooling	Temperature cooling fan
	Application	home and office appliances,portable power equipment,vehicle,yacht and off-grid Solar system,ect.
Note	1.Value test by input voltage at 12.8V/25.6V/50.4V;2.All the parameters are measured at rated load,25 of ambient temperature; 3.the specifications are subject to change without prior notice for further improvement of products.

Mechanical Drawings:(259x182x87mm)

MODEL :HK300P
