Reliable quality power converter 12v to 220v 500w pure sine wave inverter with CE/RoHS/LVD/E-Mark/REACH/UL/TUV certificates and test report,KOSUN inverter 500w have stable quality and multi protections, inverter design with plastic terminals for customers safety operation.KOSUN is a professional manufacture for over 10 years with mature R&D as well as marketing for various types of power inverter,thus,KOSUN could make you win more market share.
RS500P KOSUN 500w 100% loading power inverter with various optional sockets like:Universal/South Africa/Australia/Brazil/USA/UK/Germany/France using for different countries.The KOSUN inverter do with popular round shell and attractive colors as well as silk-screen label to make better selling on the market on the basis of OEM ODM.
New KOSUN solar inverter 12v/24v/48v dc to 110v/120v/220v/230v/240v ac with built-in fuse for reverse polarity protection.Multi protections such as low voltage,over voltage,over load,high Temp,short circuit of the inverter & converter supply with factory price and 18 months warranty.

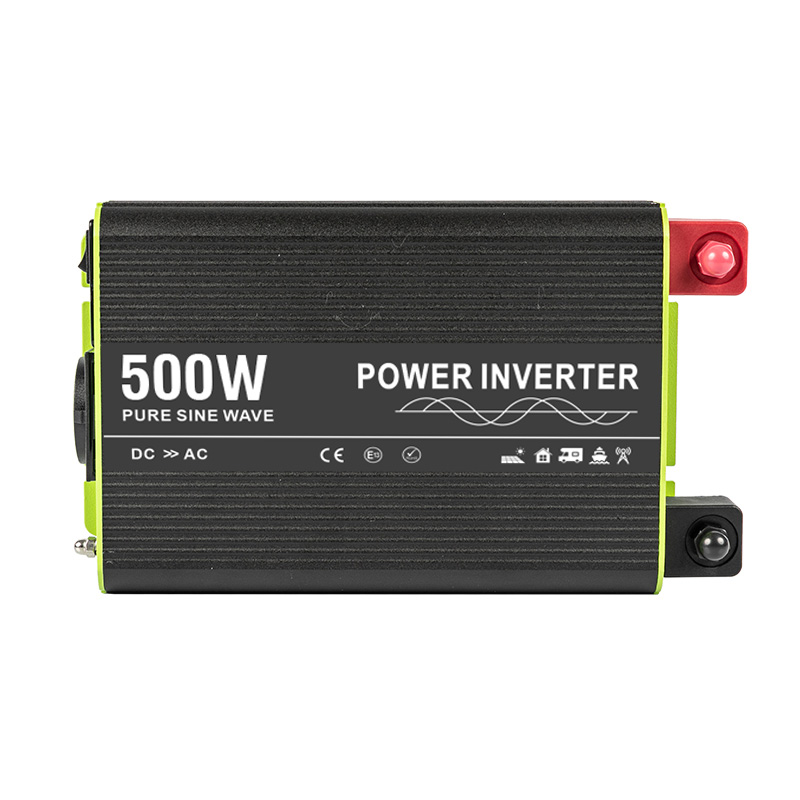

Product Parameter (Specification) of the 500W pure sine wave inverter
|
MODEL |
|
RS500P-112 |
RS500P-124 |
RS500P-148 |
RS500P-212 |
RS500P-224 |
RS500P-248 |
|
OUTPUT |
RATED POWER |
500W |
|||||
|
SURGE POWER |
1000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Ture sine wave(THD<3%) at rated input voltage |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
|
|
DC CURRENT |
50A |
25A |
12.5A |
50A |
25A |
12.5A |
|
|
NO LOAD CURRENT DRAW |
<0.32A |
<0.25A |
<0.12A |
<0.32A |
<0.25A |
<0.12A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.5±0.2V |
21±0.3V |
42±0.5V |
10.5±0.2V |
21±0.3V |
42±0.5V |
|
BAT.LOW SHUTDOWN |
10.2±0.2V |
20±0.3V |
40±0.5V |
10.2±0.2V |
20±0.3V |
40±0.5V |
|
|
BAT.OVER SHUTDOWN |
16±0.2V |
32±0.3V |
64±0.5V |
16±0.2V |
32±0.3V |
64±0.5V |
|
|
REVERSE POLARITY |
yes |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H(mm) |
160*150*70 |
||||||
|
PACKING(cm) |
42*34*44 ;6pcs/CTN,18KG |
||||||

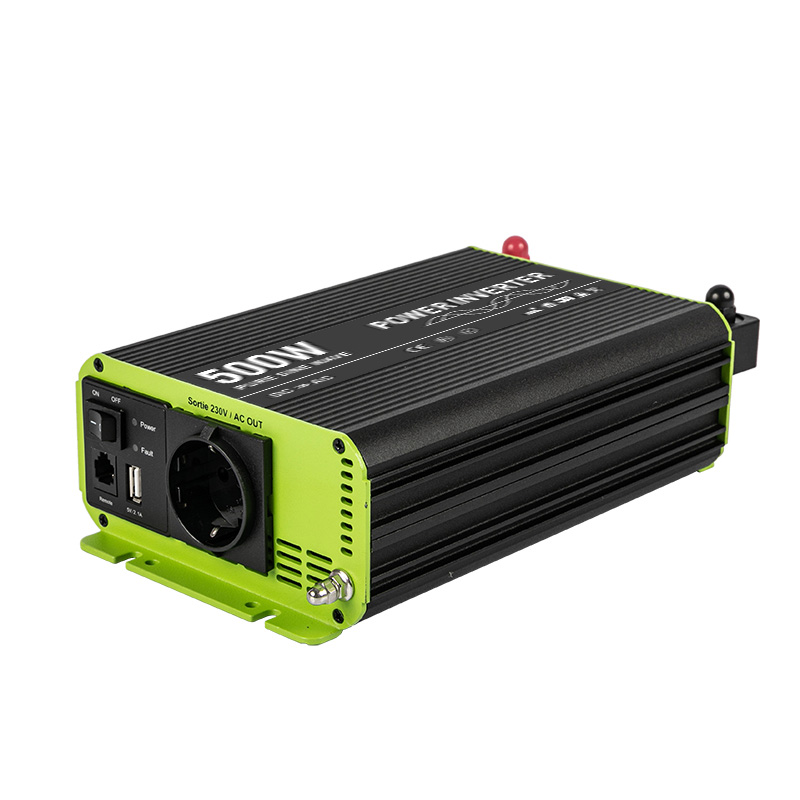

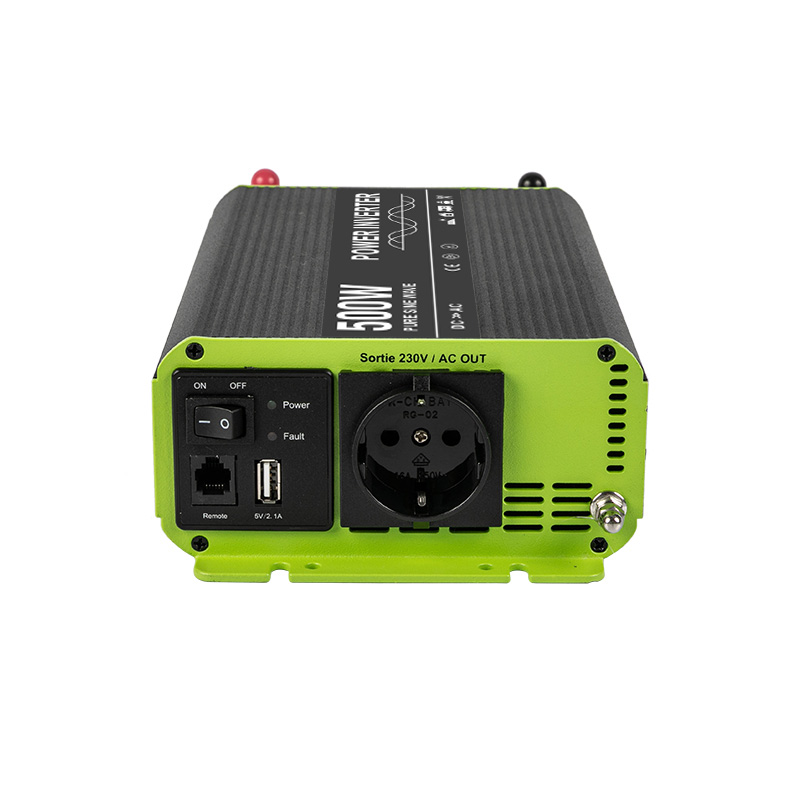

Product Feature And Application of the KOSUN 500W pure sine wave inverter
①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;

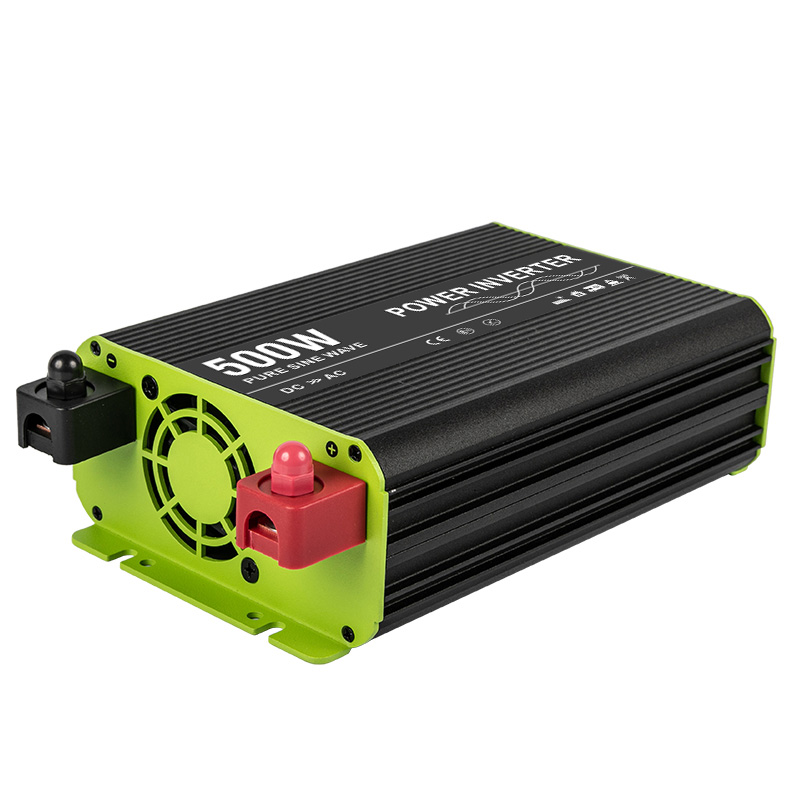

④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.
Product Qualification of the KOSUN 500w continue loading pure sine wave power inverter
A. CE Compliance to EN55032
B. RoHS Compliance to EN50581
C. LVD Compliance to EN60950-1
D. E-Mark E13
E. IATF 16969
F. REACH/UL/TUV report
Deliver,Shipping And Serving of the 500w continue loading power inverter
The factory will arrange the order after confirming the goods with customers,500w Kosun pure sine wave power inverter pack with customized color box or neutral packages for various orders.
Customers will choose multi methods of transportation such as express DHL/TNT/UPS/FEDEX, train,ocean and so on.
We will design,research with more professional service to solve the issue from clients OEM ODM for the power converter to clients with 18 months warranty.
FAQ
A. What character of the manufacture and the 500w inverter?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.We could provide you real loading 500w power inverter with OEM ODM for the stronger market requirement
B. Do you accept OEM produce?
Yes,of course.KOSUN accept the OEM ODM for clients to improve the market share and ideal benefits for the clients in local market.
C. Whether KOSUN accept small order?
Yes,small trial order,bulk order all supply to you according to your real requirement.Please contact with us by free for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
