1000w Pure Sine Wave Inverter with Charger
  • 1000w Pure Sine Wave Inverter with Charger1000w Pure Sine Wave Inverter with Charger
  • 1000w Pure Sine Wave Inverter with Charger1000w Pure Sine Wave Inverter with Charger
  • 1000w Pure Sine Wave Inverter with Charger1000w Pure Sine Wave Inverter with Charger
  • 1000w Pure Sine Wave Inverter with Charger1000w Pure Sine Wave Inverter with Charger

1000w Pure Sine Wave Inverter with Charger

KOSUN new design dc to ac 1000w pure sine wave inverter with charger single phase do with various types of sockets like Germany, French, US, Australia, Universal, UK, Brazil, South Africa which could reach different market.DC 12V/24V/48V and AC 110v/120v/220v/230v/240v optional according to the real market requirement.

Send Inquiry

Product Description

Real loading 1000w surge power 2000w pure sine wave inverter with charger auto-transfer within 16ms to ensure the appliances regular operating from the AC Main power to battery, high performance apply for various types applications equip with USB port and multiple sockets use for laptops, desktop computers, fluorescent lamps, light bulbs, fans, home hair dryer, electric drill, printer, digital camera etc and the movable & portable functions make it used for the emergency power supply,leisure outside,outdoors working etc.

The hybrid inverter has passed CE/RoHS/LVD/E-Mark/SAA 4763 certificate, IATF 16949 management system certificate and REACH/UL/TUV test report according to the different region standard.1000W UPS inverter could do with OEM ODM for the concrete customer’s demands.


Product parameter(Specification) of the 1000w pure sine wave inverter with charger

New Series Pure Sine Wave Inverter With Charger

★★★★★ Highly recommended products

■ Pure sine wave output(THD<3%);
■ High surge power up to 2 times of real loading power;
■ Loading 1.5times rated power for 10s,2times for 2s;
■ High efficiency up to 92%;
■ Power ON-OFF switch;
■ Soft start;
■ Built-in fuse;
■ More stable working functions with TP56 safety terminals
■ Front panel indicator for operation status;
■ Thermostatically and load controlled cooling fan;
■ Protections:Bat. low alarm/Bat. low shutdown/Bat. over shutdown/output short/input reverse protection/overload/over Temp.
■ 18 months wattanty

MODEL


RSC1000P-112

RSC1000P-124

RSC1000P-148

RSC1000P-212

RSC1000P-224

RSC1000P-248

OUTPUT

RATED POWER

1000W

SURGE POWER

2000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

100A

50A

25A

100A

50A

25A

NO LOAD CURRENT DRAW

<0.6A

<0.48A

<0.39A

<0.6A

<0.48A

<0.39A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

AC INPUT

Nominal voltage/Frequency

115V/60Hz

230V/50Hz

Input voltage range

100V-130V AC

180V-260V AC

Efficiency full load

92%

90%

88%

87%

89%

91%

by pass

ATS transfer

The power switch to battery within 2s if the city power cut off.

DC output

charging current range

10A

5A

2.5A

10A

5A

2.5A

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

370*150*70

PACKING(cm)

55*42*31 ;4pcs/CTN,17KG


Product feature and application of the 1000w pure sine wave inverter with charger

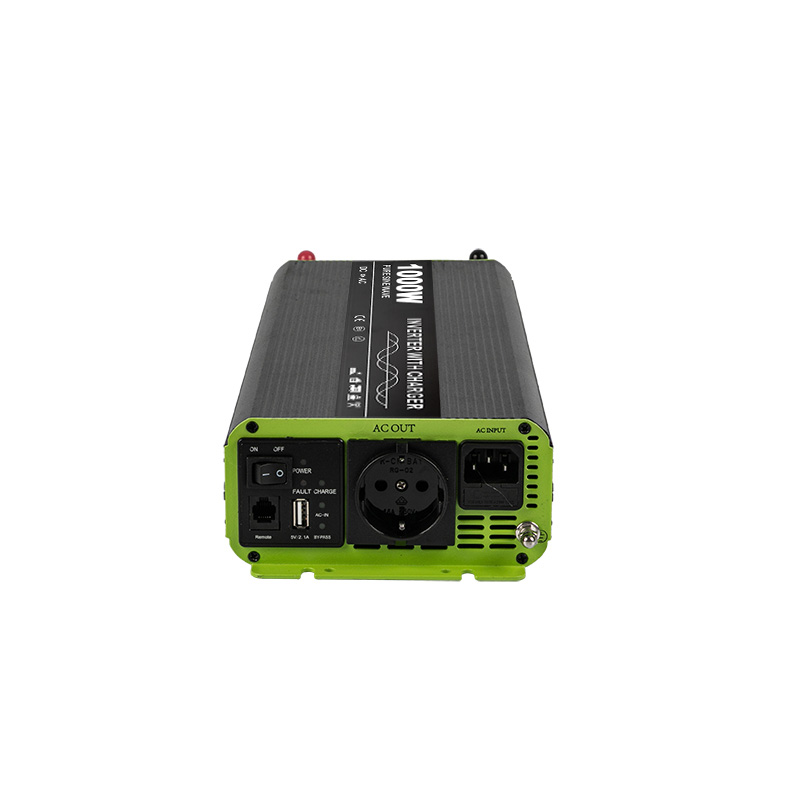

①. multi-function conversion socket, in line with the requirements of multiple national electrical appliances.

②. ②.5V 2.1A USB interface More than one mobile phone at the same time leisure, office, entertainment, games and other needs.

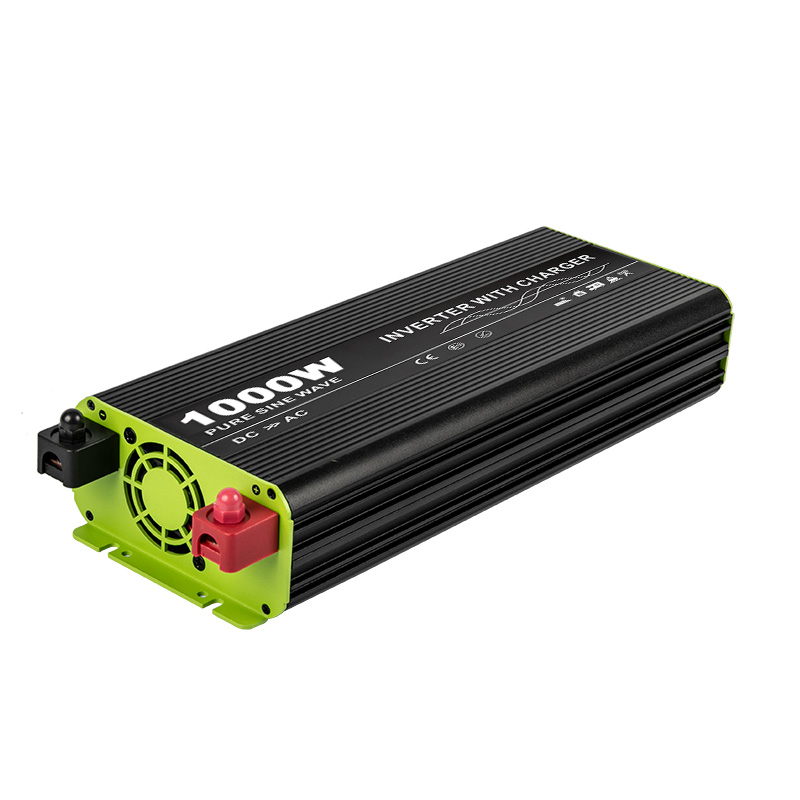

③. ③. miniature intelligent ball fan, low noise, high heat dissipation.

④. ④.Car cigarette lighter socket, easy to connect a variety of trucks, cars, large trucks.

⑤. ⑤thick double-layer PCB board, more high temperature, voltage, current resistance, product quality, longer life expectancy, quality assurance.

⑥. ⑥SMT chip technology, the use of wave soldering technology, product components rugged, shock resistant.

⑦. ⑦ auto-transfer switch by pass and battery charger function

⑧.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;

⑨Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 1000w pure sine wave inverter with charger

A. CE Compliance to EN55032

B. RoHS Compliance to EN50581

C. LVD Compliance to EN60950-1

D. E-Mark E13

E. IATF 16969

F. REACH/UL/TUV report


Deliver,Shipping And Serving of the 1000w pure sine wave inverter with charger

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.1000w pure sine wave inverter with charger pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your company?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Why your quotation is higher than other suppliers?

C. In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter;

D. Is the output voltage of our inverter stable ?

E. Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable;

F. What is a resistive load appliances?

G. Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.

H. What is the inductive load appliances?

I. It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.


The advantages to choose our team:

1. Our sales staff has extensive sales experience through continuous training and practice which they have the ability to efficiency cooperate development between company and clients and provide satisfied service to customers;

2. The company buy modern equipment for automated production line;

3. Training professional technical staff is essential process to improve the quality of produce;

4. Meeting before order production determine relative details to reduce error output;

5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/several times full test on-line/sampling test before shipment);

6. OEM/ODM accept by workshop;

Good after-sales service for long-term development.
