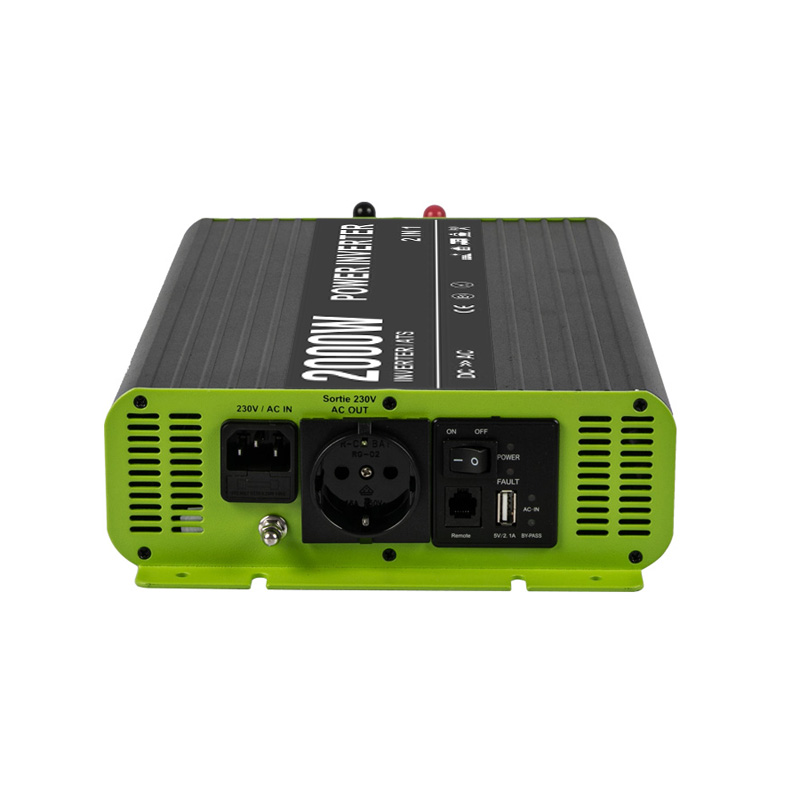

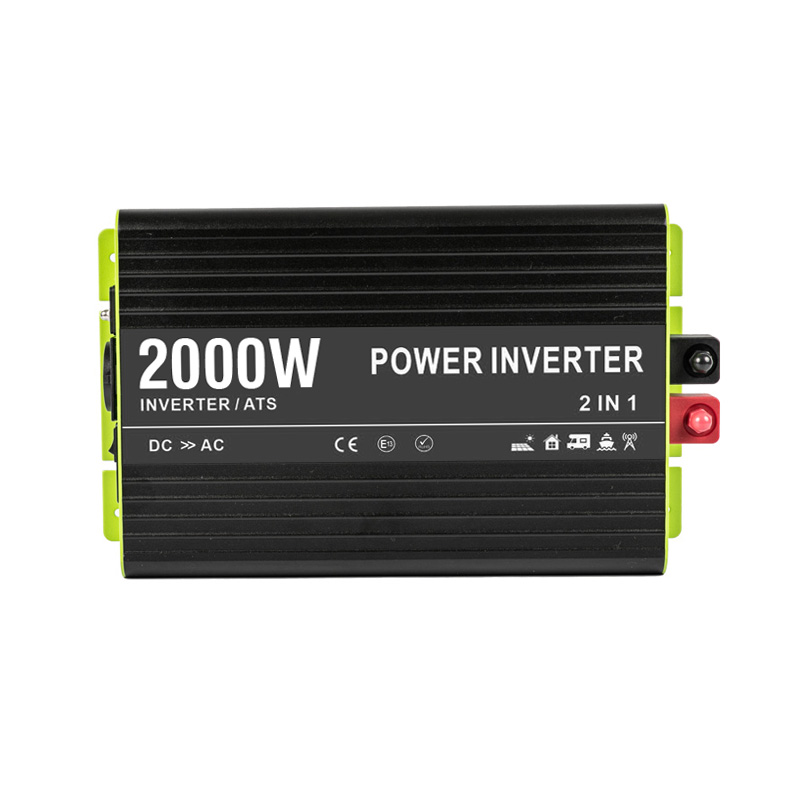

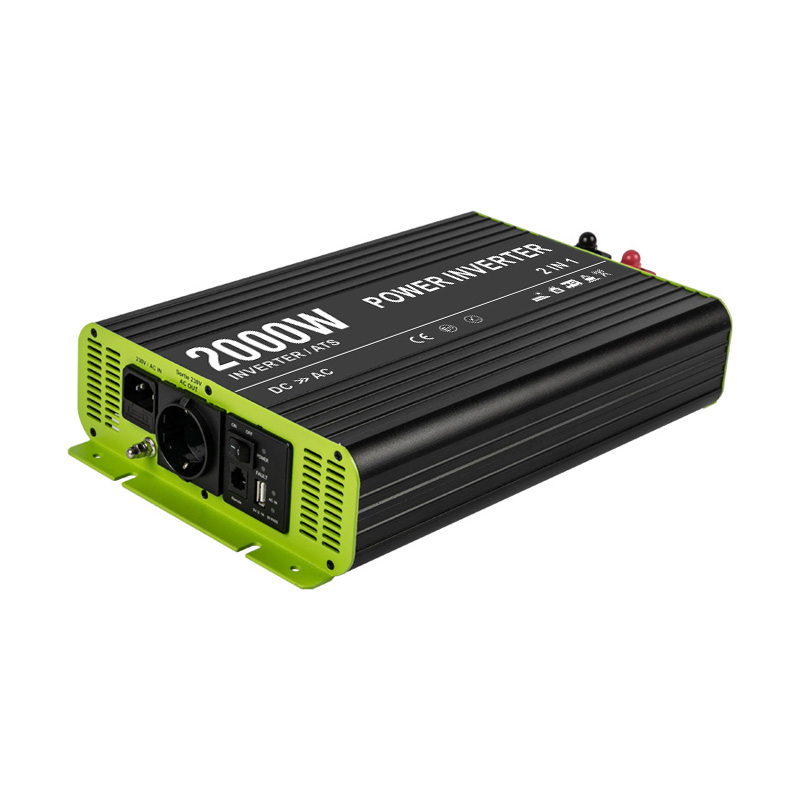

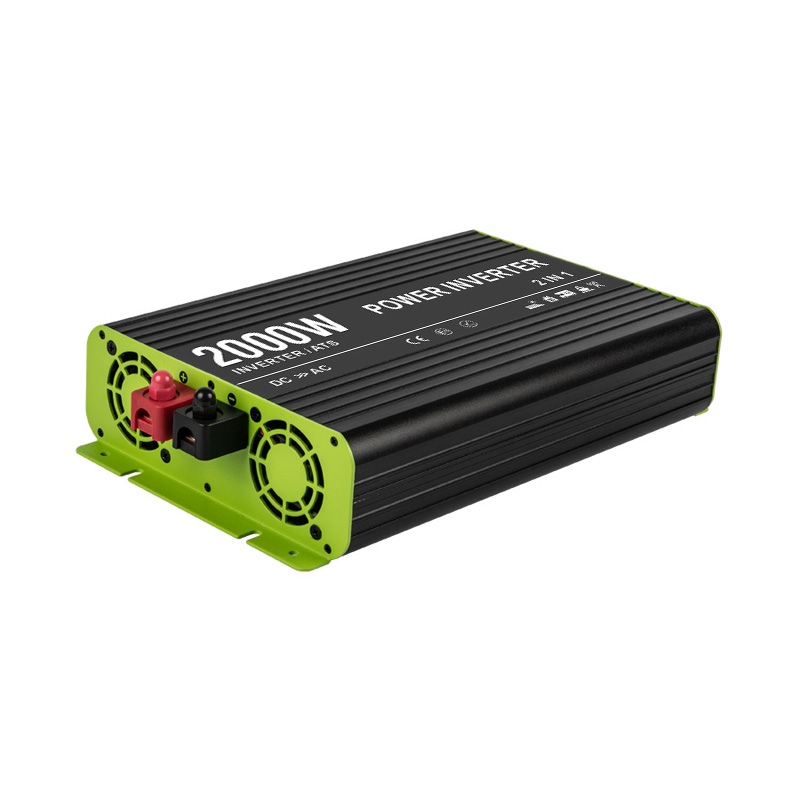

2000w inverter with ATS function

KOSUN dc to ac power converter 2000w inverter with ATS function works with multi advantages,the inverter makes the application uninterrupted power supply if the AC Mains power shut off in a sudden,and inverters auto transfer to the AC mains power when the battery discharge all power,the AC mains works with by-pass station for the appliances continue working .KOSUN factory has built over 10 years and develop with well-established system for the standard process of produce with ERP system,the inverter & converter are more reliable quality and reasonable factory price for the stronger market demands.The power inverter 2000w use for the RV,yacht,vessel,camping energy supply,mobile energy and the emergency power supply.

Send Inquiry

Product Description

Constant power 2000w inverter with ATS function with peak power 4000w load electric appliance with high efficiency for long-time working which is more cleaner and portable in the urgent use.The pure sine wave inverter 2000W with by pass function not only use indoors but also outdoors such as the out-door work,camping,travelling,welder machine and so on.The aluminium case design with more durable in operation and good cooling function for the long term work.real loading power 2000w inverter and surge power 4000w pure sine wave with bypass function from AC mains to ensure the regular power supply of the appliances.


Product parameter(Specification) of the 2000w inverter with ATS transformer

Pure Sine Wave Inverter With ATS Function

★★★★★ Highly recommended products


■ Pure sine wave output(THD<3%);
■ High surge power up to 2 times of real loading power;
■ Loading 1.5times rated power for 10s,2times for 2s;
■ High efficiency up to 92%;
■ Power ON-OFF switch;
■ Soft start;
■ Built-in fuse;
■ More stable working functions with TP56 safety terminals
■ Front panel indicator for operation status;
■ Thermostatically and load controlled cooling fan;
■ Protections:Bat. low alarm/Bat. low shutdown/Bat. over shutdown/output short/input reverse protection/overload/over Temp.
■ 18 months wattanty

MODEL


RST1500P-112

RST1500P-124

RST1500P-148

RST1500P-212

RST1500P-224

RST1500P-248

OUTPUT

RATED POWER

2000W

SURGE POWER

4000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

200A

100A

50A

200A

100A

50A

NO LOAD CURRENT DRAW

<0.8A

<0.65A

<0.55A

<0.8A

<0.65A

<0.55A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

by pass

ATS transfer

The power switch to battery within 2s if the city power cut off.

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

380*220*90

PACKING(cm)

50*30*36 ;2pcs/CTN,13.4KG


Product feature and application of the 2000w pure sine wave inverter with ATS function

①. Fuse:built-in

②. 1.5 times rated power for 10s,2 times for 2s(inverter)

③. USB:5V/2.1A

④. Plastic terminal TP-56 for more safety operation

⑤. Protection:LED indicator & Audible alarm

⑥. Input voltage range:‐15%~+25%

⑦. Output voltage regulation:±10%

⑧. auto-transfer switch by pass function

⑨. .protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;

⑩. Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 2000w pure sine wave inverter with ATS Function

A. CE Compliance to EN55032

B. RoHS Compliance to EN50581

C. LVD Compliance to EN60950-1

D. E-Mark E13

E. IATF 16969

F. REACH/UL/TUV report


Deliver,Shipping And Serving of the 2000w pure sine wave inverter with ATS function

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.1500w pure sine wave inverter with ATS function pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your company?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Do you accept OEM produce?

Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.


The advantages to choose our team:

1. Our sellers have with experienced and professional for the technical information by continuous training and practicing which they have the ability to serve you more satisfied service between the both parties friendly cooperate;

2. The company produce with modern equipment for automated production line;

3. Training professional technical staff is essential process to improve the quality of produce;

4. Pre-production meeting discuss with production department to confirm the clearing and special requirement from customers which will save more time and reduce the error output during the whole process of produce.

5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/casual inspection on-line/sampling test before shipment);

6. OEM/ODM accepted;

7. Good after-sales service for long-term development.
