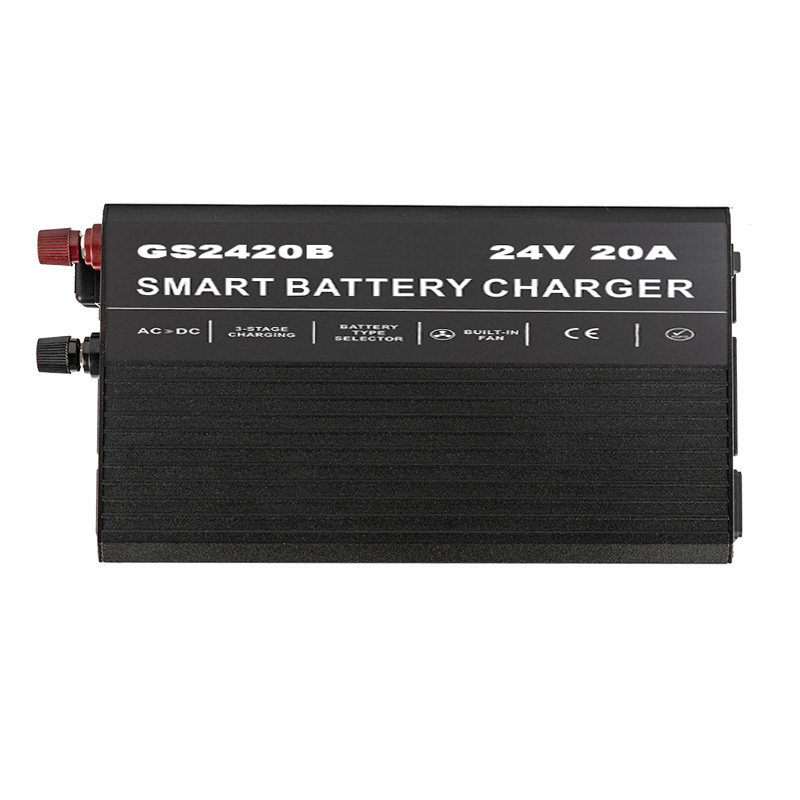

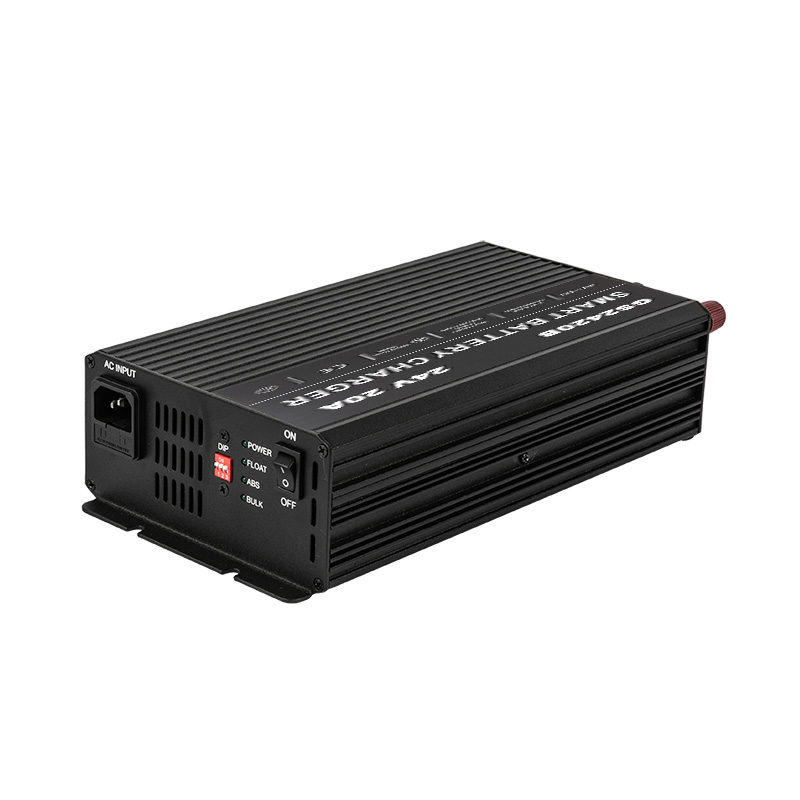

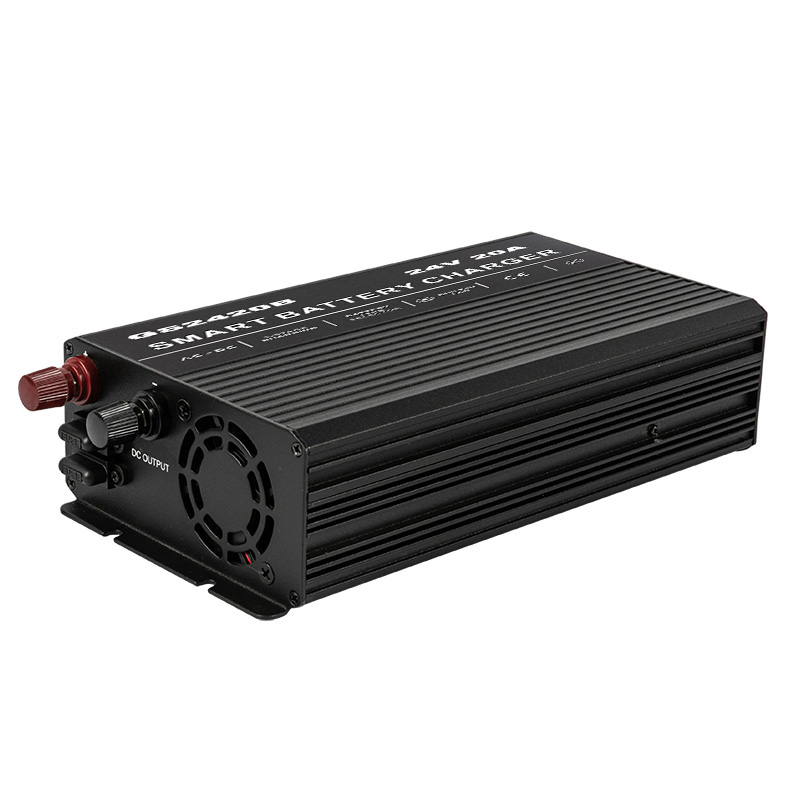

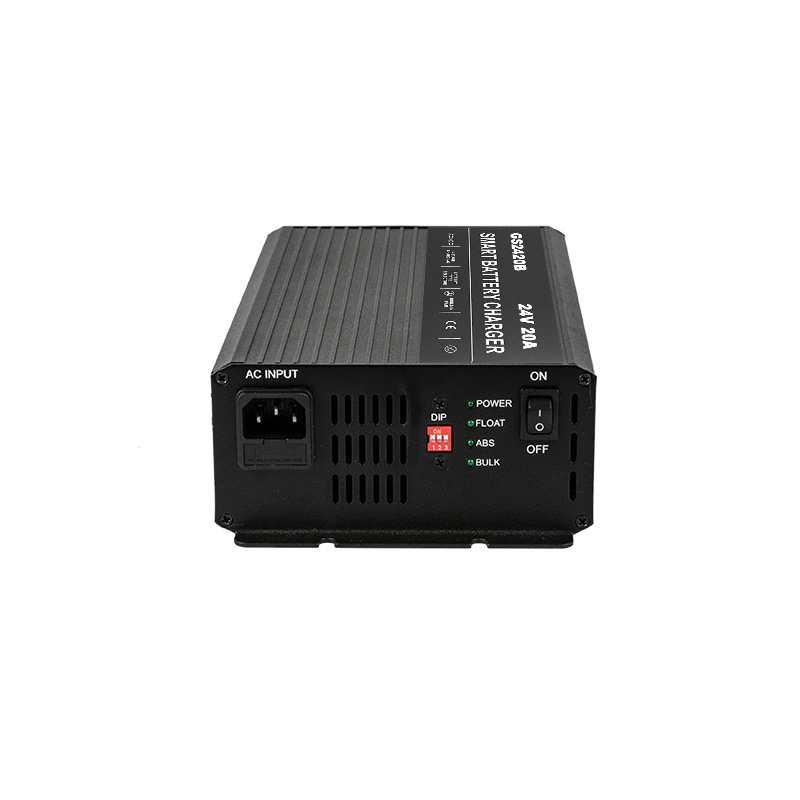

24V 20A Battery Charger

KOSUN 24V 20A battery charger is a smart multi-stage lithium battery charger which uses the latest switch-mode battery charging technology, to ensure fast and efficient charging of your batteries.The multi-stage charging algorithm delivers a fast, efficient, and consistent charge with no voltage drop. The smart charger will prolong the longevity of the battery cells and prevents premature battery failure.

Model:KS2420B

Send Inquiry    PDF DownLoad

Product Description

KOSUN portable 24V 20A battery charger make AC main power input to DC output for battery power, high quality battery charger design with multiple protections for the safety working,hot sale market intelligent battery charger utilises a 3-stage charging algorithm to deliver a fast,efficient,and consistent charge,prolonging the life of your battery.The stages can be visualised in the digital LED light.Stage 1 boost charge(constant current) supply the maximum rated current of the charger at a constant rate until the battery reaches the final charging voltage(absorption voltage) this ensures,that the battery is charged to approximately 80% capacity in the shortest amount of time.Stage 2 absorption charge(constant voltage) the charging voltage is held constant for the remaining 20% capacity of the battery,and the current is gradually decreased as the battery approaches full charge;Stage 3 Float charge:once the battery has reached full charge,the charger voltage is then lowered and held constant.This prevents over charging the battery and prolongs the life and the stage is often referred to as a maintenance mode,rather than charging a battery,it keeps an already charged battery from discharging while providing power to any additional loads connected to the battery,such as fridges and lights.


Product parameter(Specification) of the 24V 20A battery charger

New Series Battery Charger

★★★★★ Highly recommended products

■ LED indicator light show charging states;
■ Temperature controlled cooling fan;
■ 3-stage battery charging:Bulk charge,absorption charge,float charge
■ Reverse polarity protection:connect to battery,no harm. Not connect to battery,no output
■ Short circuit protection
■ Over Temperature Protection
■ Battery Type Selector

SPECIFICATION

MODEL

GS1210B

GS1220B

GS1230B

GS1240B

GS1280

GS2410B

GS2420B

GS2440B

GS4805B

GS4810B

GS4820B

GS3625B

Input voltage

AC 110V(90-120V)/AC 220V(189V-240V)

Output voltage

DC 12V

DC 24V

DC 48V

DC 36V

Max charing current

10A

20A

30A

40A

80A

10A

20A

40A

5A

10A

20A

25A

Output frequency

47~63HZ

Charging way

Automatic 3 stage charging

Stage 1:bulk charge; Stage 2:absorption charge; Stage 3:float charge

Float charge voltage

13.8V

27.6V


55.2V

41.4

Absorption charge voltage

14.2V(G); 14.4V(S); 14.6V(F/Li)

28.4V(G); 28.8V(S); 29.2V(F/Li)


56.8V(G); 57.6V(S); 58.4V(F/Li)

42.6V(G);43.2V(S);
43.8V(F/Li)

Efficiency

>85%

Protection function

Reverse polarity;output short circuit;over temperature;over voltage;over load;over current

LED indicator

5 LED indicators for different charge status

Product dimension(CM)

13*15*5

16*15*7

26*15*7

26*15*7

25*22*7.5

16*15*5

26*15*7

25*22*7.5

16*15*7

26*15*7

25*22*7.5

25*22*7.5

Product net weight

0.75KG

0.85KG

2.1KG

2.2KG

3.9KG

2.1KG

2.2KG

3.64KG

0.85KG

2.2KG

3.58KG

3.9KG

Certification

CE-EMC/LVD,RoHS

Case color

Optional(black/orange/yello/green/gray/red ect.),factory default color is blue

Packing

Poly bag+EPE+inner box+carton 1pc/inner box

12PCS/CTN

5PCS/CTN

6PCS/CTN

6PCS/CTN

2PCS/CTN

2PCS/CTN

6PCS/CTN

2PCS/CTN

5PCS/CTN

6PCS/CTN

2PCS/CTN

2PCS/CTN

Replaceable fuse+instruction book+connection wire

CTN dimension(CM)

54*42*30

32*45*38

42*42*46

42*42*46

43*31*36

32*45*38

42*42*46

43*31*36

32*45*38

42*42*46

43*30*36

43*31*36

N.W./G.W./CTN(KG)

16.5/17.5

4.5/6.5

12.6/17.3

13.2/17.9

8.7/9.7

7.0/10.5

13.2/17.9

8.52/9.21

4.5/6.5

13.2/16.39

8.61/9.21

8.52/9.11


Product feature and application of the 24V 20A battery charger

①. LED indicator light show charging status.

②. Temperature controlled cooling fan;

③. 3-stage battery charging:bulk charge,absorption charge,float charge

④. Reverse polarity protection:connect to battery,no harm;not connect to battery,no output.

⑤. Short circuit protection

⑥. Over temperature protection

⑦. Battery type selector


Deliver,Shipping And Serving of the smart charger

It is a flexible transportation for the battery charger to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.Chargers pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your company?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Do you accept OEM produce?

Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.
