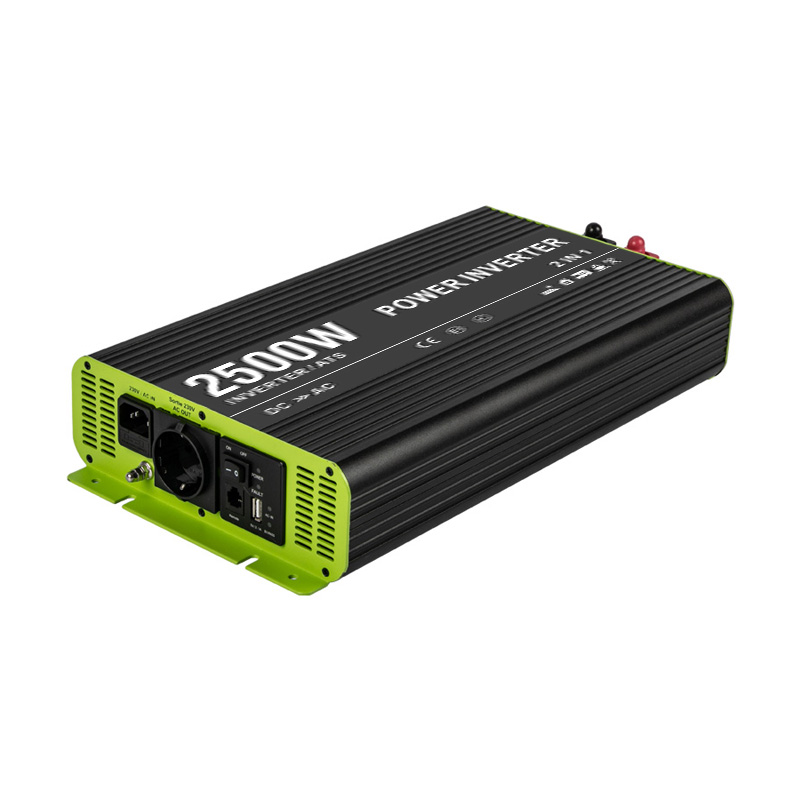

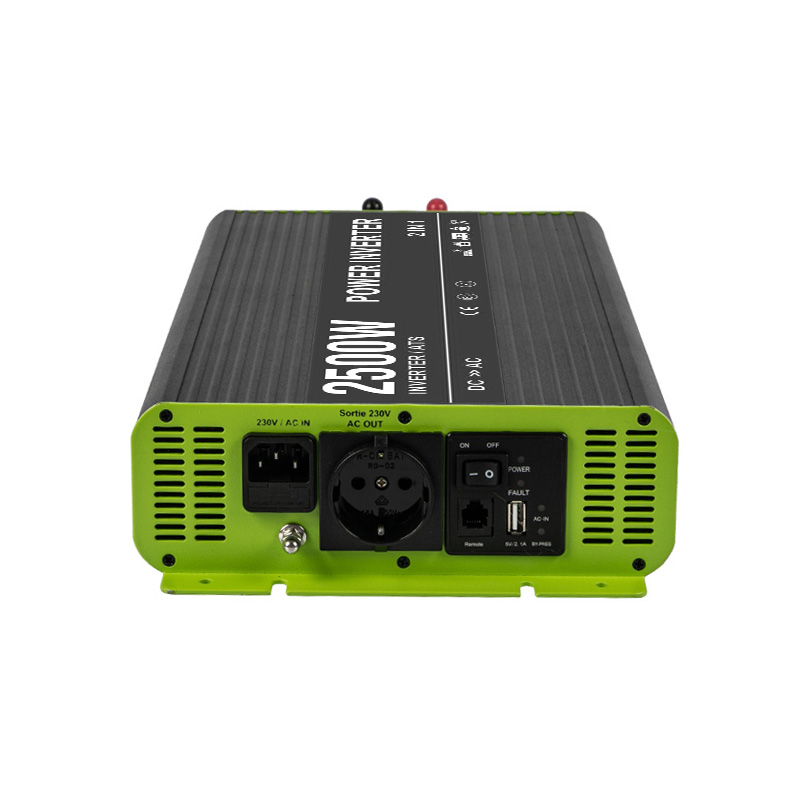

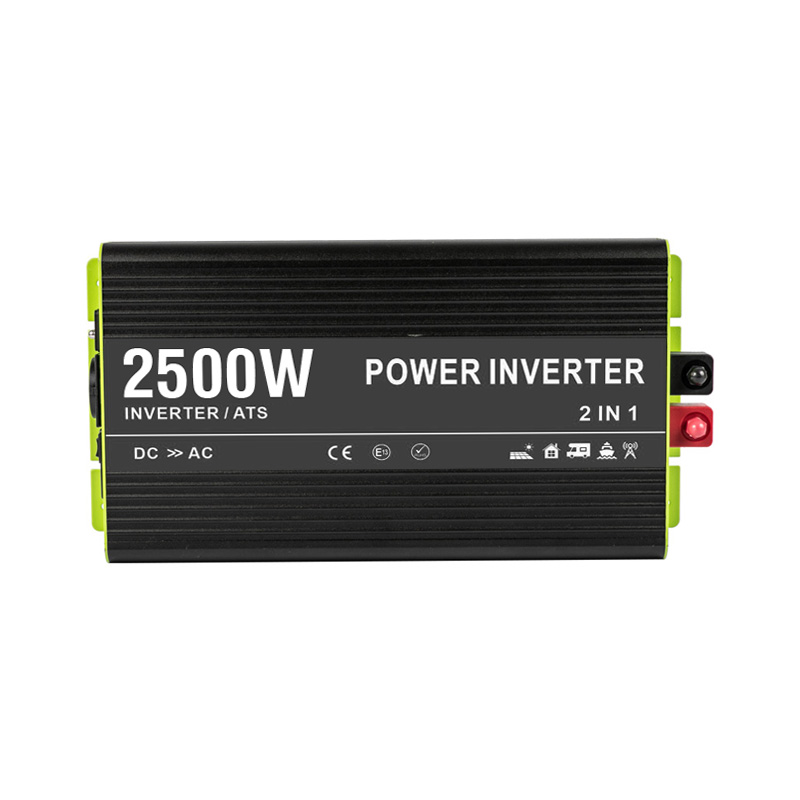

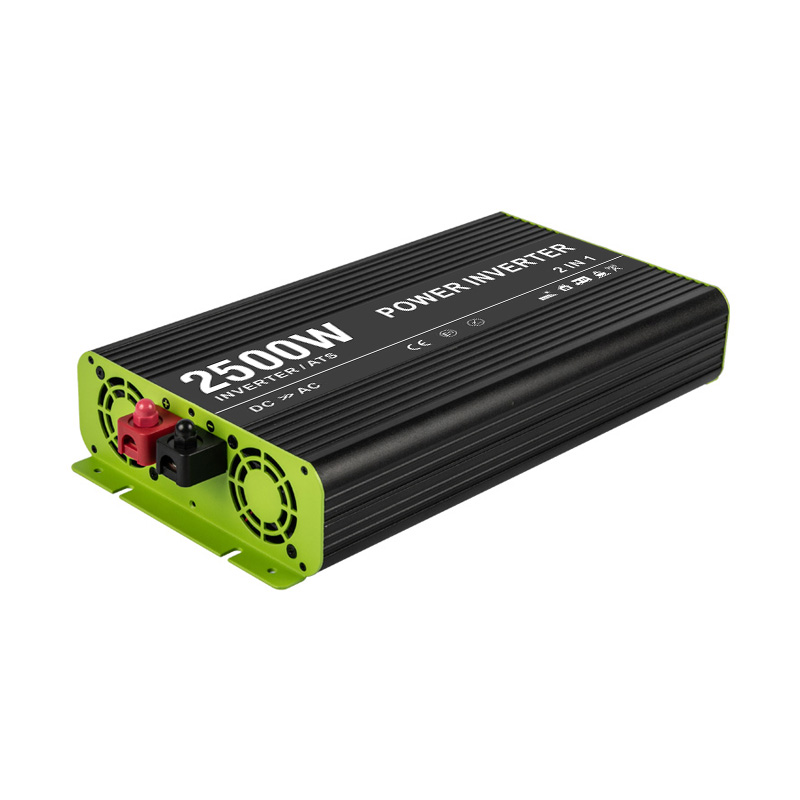

KOSUN new design pure sine wave 2500w inverter with ATS function set with inverter & by-pass function from AC mains for the constant electricity of the appliances. The inverters produce with double-layer PCB board which do with the latest matured technical principle and choose the good quality mosfet for the high efficiency,KOSUN match the plastic terminals TP-67 for more safety operation consideration,the round aluminium shell and 2.00mm plates make the inverters & converters look more attractive and impressed to the people.
KOSUN factory has built over 10 years for reliable quality 2500w inverter with ATS function which purchase modern auto-machine assembly working line to ensure the accurate test and produce,thus,KOSUN inverters could meet more markets with special requirement for various usages like off grid solar system,emergency power supply,home/office application as well as other electrical vehicles,the competitive factory price supply for the power converter.
Product parameter(Specification) of the 2500w inverter with ATS transformer
|
Pure Sine Wave Inverter With ATS Function |
|||||||
|
★★★★★ Highly recommended products |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
RST2500P-112 |
RST2500P-124 |
RST2500P-148 |
RST2500P-212 |
RST2500P-224 |
RST2500P-248 |
|
OUTPUT |
RATED POWER |
2500W |
|||||
|
SURGE POWER |
5000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Ture sine wave(THD<3%) at rated input voltage |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
|
|
DC CURRENT |
250A |
125A |
62.5A |
250A |
125A |
62.5A |
|
|
NO LOAD CURRENT DRAW |
<1.1A |
<0.98A |
<0.77A |
<1.1A |
<0.98A |
<0.77A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.5±0.2V |
21±0.3V |
42±0.5V |
10.5±0.2V |
21±0.3V |
42±0.5V |
|
BAT.LOW SHUTDOWN |
10.2±0.2V |
20±0.3V |
40±0.5V |
10.2±0.2V |
20±0.3V |
40±0.5V |
|
|
BAT.OVER SHUTDOWN |
16±0.2V |
32±0.3V |
64±0.5V |
16±0.2V |
32±0.3V |
64±0.5V |
|
|
REVERSE POLARITY |
yes |
||||||
|
by pass |
ATS transfer |
The power switch to battery within 2s if the city power cut off. |
|||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
430*220*90 |
||||||
|
PACKING(cm) |
54*32*36 ;2pcs/CTN,15KG |
||||||
Product feature and application of the 2500w pure sine wave inverter with ATS function
①. Fuse：built-in
②. 1.5 times rated power for 10s,2 times for 2s(inverter)
③. USB:5V/2.1A
④. Plastic terminal TP-56 for more safety operation
⑤. Protection:LED indicator & Audible alarm
⑥. Input voltage range:‐15%~+25%
⑦. Output voltage regulation:±10%
⑧. auto-transfer switch by pass function
⑨. .protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑩. Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.
Product Qualification of the 2500w pure sine wave inverter with ATS Function
A. CE Compliance to EN55032
B. RoHS Compliance to EN50581
C. LVD Compliance to EN60950-1
D. E-Mark E13
E. IATF 16969
F. REACH/UL/TUV report
Deliver,Shipping And Serving of the 2500w pure sine wave inverter with ATS function
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.2500w pure sine wave inverter with ATS function pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of your company?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
The advantages to choose our team:
1. Our sellers have with experienced and professional for the technical information by continuous training and practicing which they have the ability to serve you more satisfied service between the both parties friendly cooperate;
2. The company produce with modern equipment for automated production line;
3. Training professional technical staff is essential process to improve the quality of produce;
4. Pre-production meeting discuss with production department to confirm the clearing and special requirement from customers which will save more time and reduce the error output during the whole process of produce.
5. Strict quality control(incoming inspection/semi-finished product inspection/finished product test/casual inspection on-line/sampling test before shipment);
6. OEM/ODM accepted;
7. Good after-sales service for long-term development.
