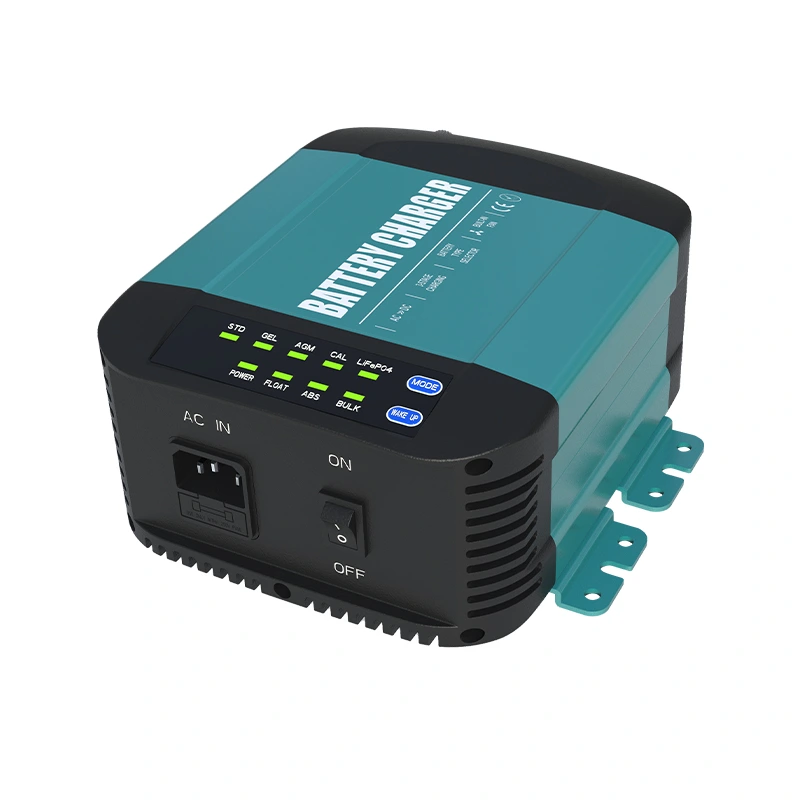

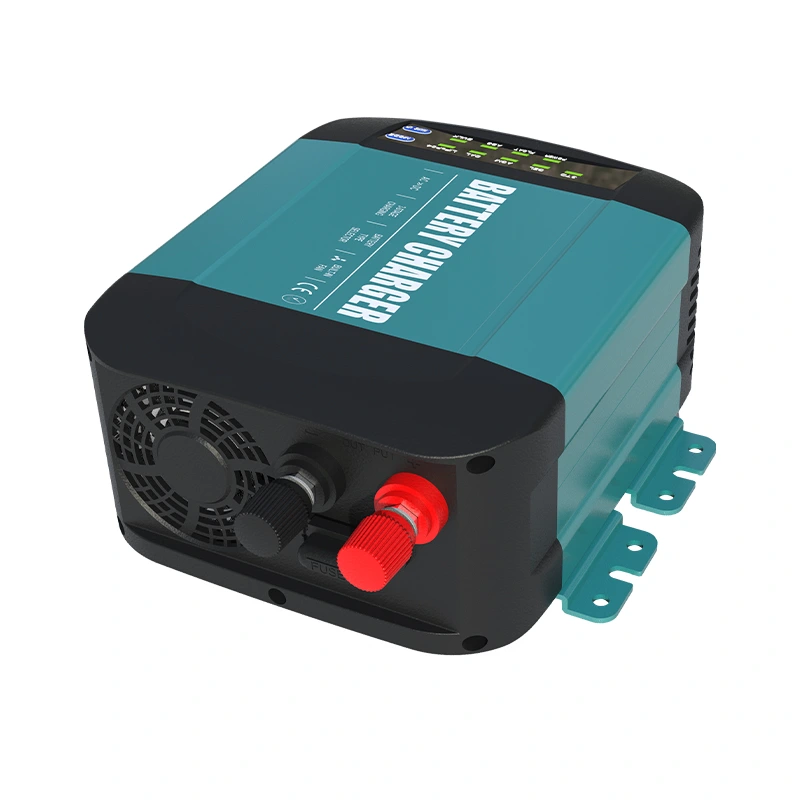

12v 10A Smart Battery Charger

MODEL

HK1210B-110

HK1210B-220

Output

Battery Type

STD/GEL/AGM/CAL/LifePO4

Standard Boost Charge Voltage

14.6V+/-0.2V

Standard Float Charge Voltage

13.8V+/-0.2V

Main Rated Current

10A

10A

Main Output

0-10A

0-10A

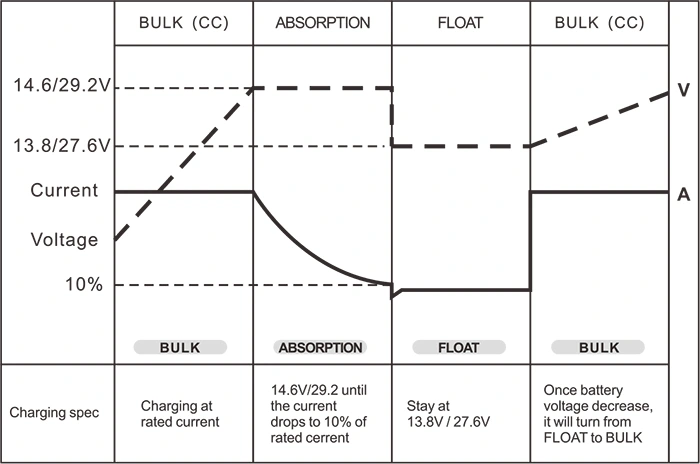

Battery Charging Mode

3-stage charging capability (IUOU)

Input

Voltage Range

90-130VAC(refer to de-rating curve)

180-260V

Frequency Range

47-63Hz

47-63Hz

Efficiency(Typ.)at 230VAC

85%

85%

AC Current(Typ.)

1.55A

0.78A

Protection

Battery Reverse

yes

Over Voltage

yes

Over Temperature

Battery Over Temperature 75℃

Function

LED Signal

Show the battery type and working status

Charging Mode

By Touch switch to choose difference battery type

Environment

Working Temp.

0~60℃(refer to de-rating curve)

Working Humidity

20~90%RH non-condensing

Storage Temp.,Humidity

0-+85℃,20-90%RH

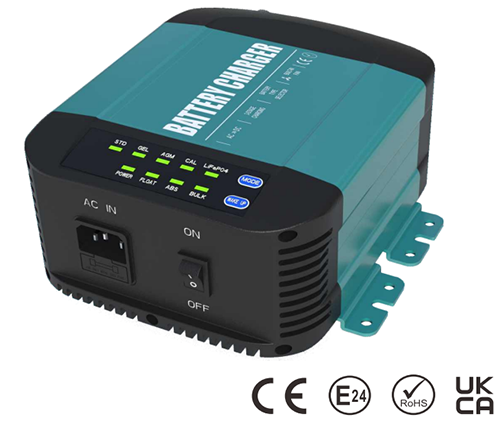

Safety&EMC

Safety Standards

LVD Directive 2014/35/EU

E-mark

EN61000-3-3:2013+A1:2019+A2:2021

ROHs

RoHS Directive(EU)2015/863 amending Annex II to Directive 2011/65/EU

EMC Standards

EN IEC55014-1:2021

EN IEC55014-2:2021

EN IEC6100-3-2:2019/A1:2021;EN61000-3-3:2013/A2:2021;

Others

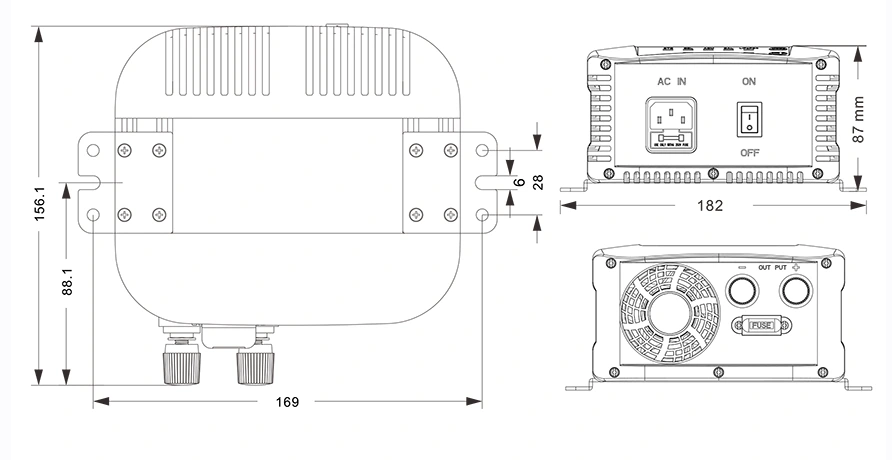

Dimension(W×H×D)

156.1×182×87mm

Packing

Per Carton 12pcs/21.4kg

Note

1.All parameters not specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2.The charger is considered a component which will be installed into final equipment.

3.Before charging,make sure the battery charger and the battery specifications are compatible.

12V Charger Setting

Battery Type

Bulk/Absorption

Float

LiFePO4

14.6V

AGM

14.8V

13.8V

Calcium

15.0V

13.8V

STD

14.4V

13.4V

GEL

14.2V

13.2V
