1000w Pure Sine Wave Inverter
  • 1000w Pure Sine Wave Inverter1000w Pure Sine Wave Inverter
  • 1000w Pure Sine Wave Inverter1000w Pure Sine Wave Inverter
  • 1000w Pure Sine Wave Inverter1000w Pure Sine Wave Inverter
  • 1000w Pure Sine Wave Inverter1000w Pure Sine Wave Inverter

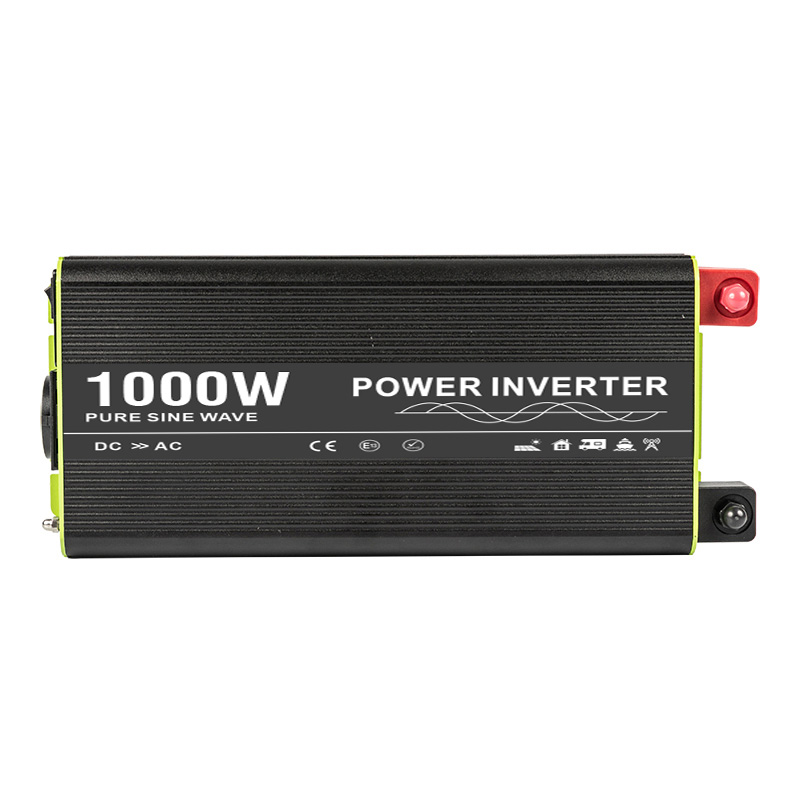

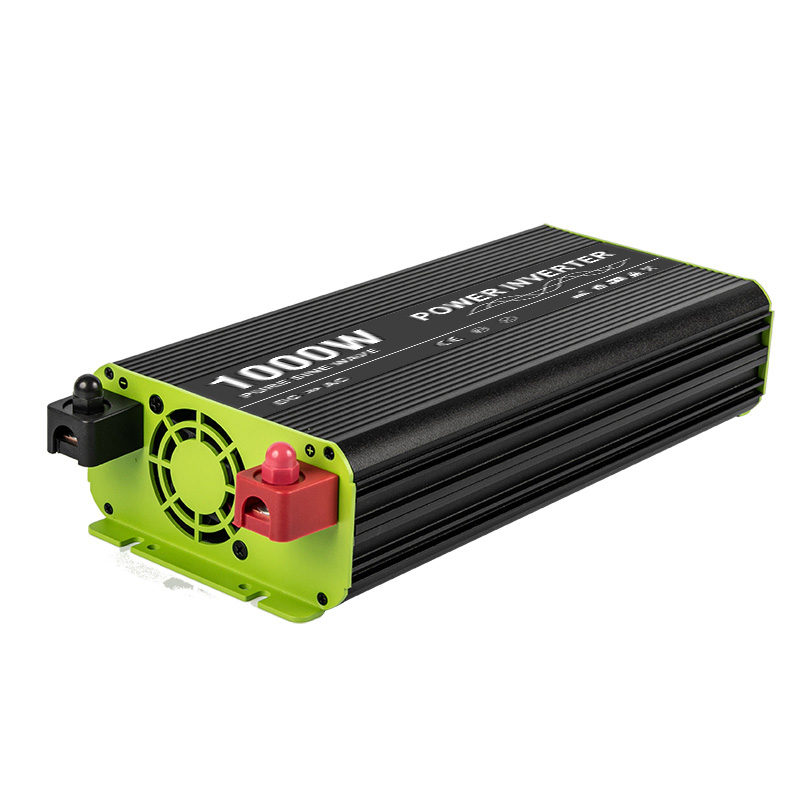

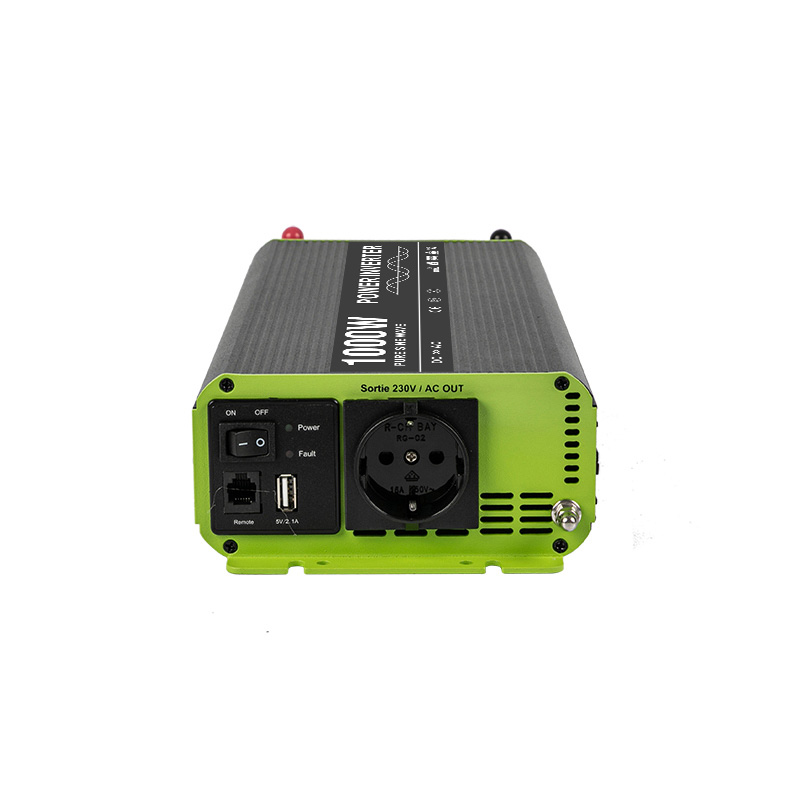

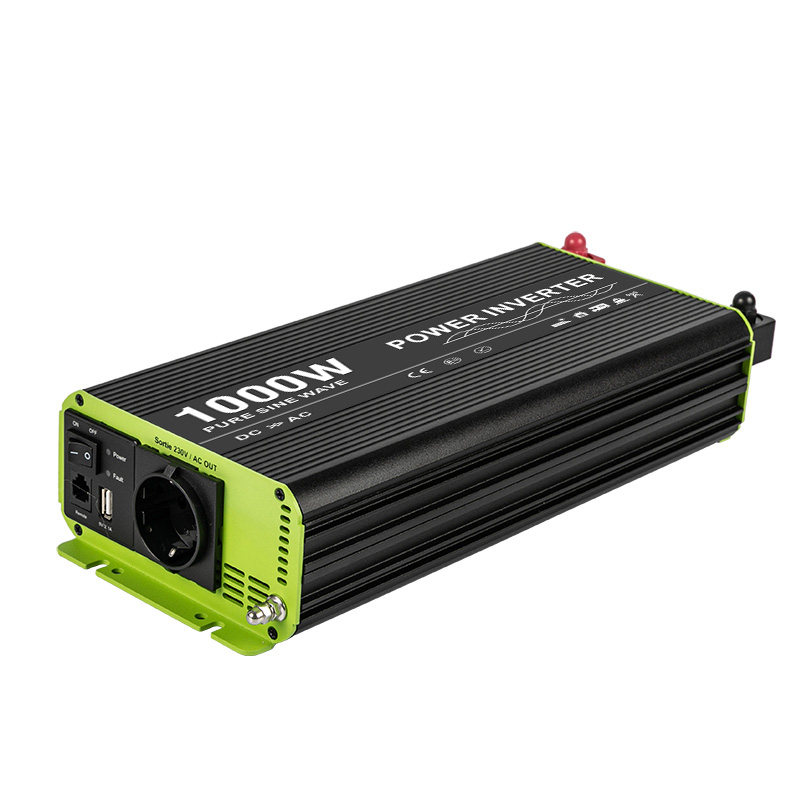

1000w Pure Sine Wave Inverter

Portable 12V to 220V KOSUN 1000W pure sine wave inverter with factory reasonable price and 18 months warranty for popular market,real loading power is 1000w converter which surge power is 2000w ,the 1000w pure sine wave power inverter match with various types of sockets for more market selling.KOSUN 1000w power invert has a standard process of produce and a strict QC system which ensure the high quality for OEM ODM produce,all the inverters test with vibration test,salty spray test,,high & low temperature alternating test to confirm the reliable quality.

Model:KS1000P

Send Inquiry    PDF Download

Product Description

KOSUN 12v to 220v Pure sine wave inverter 1000w design with high technology convert dc to ac emergency power supply for different applications like OA equipment,home electronic application,electronic vehicles,RV,camping power supply. The portable inverters make people sharing a green life.


Product Parameter (Specification) of the 1000w pure sine wave inverter

MODEL


RS1000P-112

RS1000P-124

RS1000P-148

RS1000P-212

RS1000P-224

RS1000P-248

OUTPUT

RATED POWER

1000W

SURGE POWER

2000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

100A

50A

25A

100A

50A

25A

NO LOAD CURRENT DRAW

<0.6A

<0.48A

<0.39A

<0.6A

<0.48A

<0.39A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

310*150*70

PACKING(cm)

43.5*41.5*29 ;4pcs/CTN,14.5KG


Product Feature And Application of the KOSUN 1000W continue loading pure sine wave power inverter

①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;

⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 1000w pure sine wave inverter

A. CE,RoHS,LVD,E-Mark;

B. IATF 16969

C. REACH/UL/TUV report


Deliver,Shipping And Serving of the 1000w pure sine wave inverter

Workshop arrange the order after confirming the goods with customers,300w pure sine wave inverter pack with customized color box or neutral packages for various orders,here are various methods to ship by express/vessel/air ect.


FAQ

A. What character of the manufacture?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Do you accept OEM produce?

Yes,of course.KOSUN accept the OEM ODM for clients to improve the market share and ideal benefits for the clients in local market.

C. Whether KOSUN accept small order?

Yes,small trial order,bulk order all supply to you according to your real requirement.Please contact with us by free for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.
