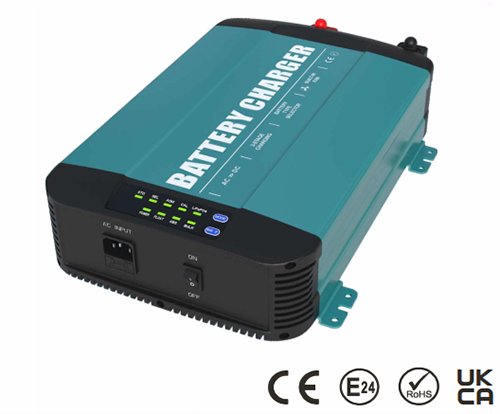

12v 100A Smart Battery Charger

Model:HK12100B

You can rest assured to buy customized 12v 100A Smart Battery Charger from Kosun. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry PDF DownLoad

Product Description

The following is the introduction of high quality Battery Charger, hoping to help you better understand 12v 100A Smart Battery Charger. Welcome new and old customers to continue to cooperate with us to create a better future!

Features:

●Universal Ac input 90- 140V/180V-260V

●Compatible with Lead Acid, Li-ion, Gel and AGM batteries

●High eficiency and high reliability

●Battery type choose

●Protection: Over Voltage /Over Temperature/ Over Current

●E13/CE/RoHs approved

MODEL		HK12100B-110	HK12100B-220
Output	Battery Type	STD/GEL/AGM/CAL/LifePO4
	Standard Boost Charge Voltage	14.6V+/-0.2V
	Standard Float Charge Voltage	13.8V+/-0.2V
	Main Rated Current	100A	100A
	Main Output	0-100A	0-100A
	Battery Charging Mode	3 -stage charging capability (IUOU)
Input	Voltage Range	90-130VAC (refer to de-rating curve)	180-260V
	Frequency Range	47-63Hz	47-63Hz
	Efficiency (Typ.) at 230VAC	85%	85%
	AC Current(Typ.)	12.49A	6.24A
Protection	Battery Reverse	yes
	Over Voltage	yes
	Over Temperature	Battery Over Temperature 75℃
Function	LED Signal	Show the battery type and working status
	Charging Mode	By Touch switch to choose difference battery type
Environment	Working Temp.	0-60℃(refer to de-rating curve)
	Working Humidity	20-90%RH non-condensing
	Storage Temp.,Humidity	0-+85*℃,20-90% RH
Safety & EMC	Safety Standards	LVD Dire ctive 2014/35/EU
	E-mark	EN 61000-3-3:2013+A1:2019+A2:2021
	ROHs	RoHS Directive (EU)2015/863 amending Annex II to Directive 2011/65/EU
	EMC Standards	EN IEC 55014-1:2021
		EN IEC 55014-2:2021
		EN IEC 6100-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021;
Others	Dimension(WxHxD)	289x252x88mm
	Packing	Per Carton 2 pcs/16kg
Note	1.All parameters not specially mentioned a re mea sured at 230VAC input, rated load and 25*C of ambient temperature. 2.The charger is conside red a component which will be installed into final equipment. 3.Before charging, make sure the battery charger and the battery specifications are compatible.

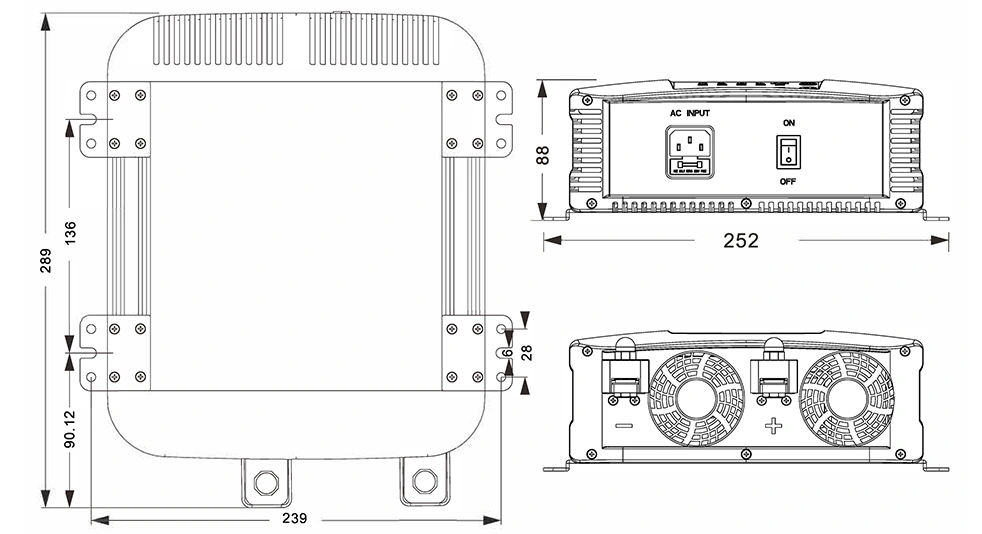

Mechanical Drawings:(289x252x88mm)

MODEL:HK12100B

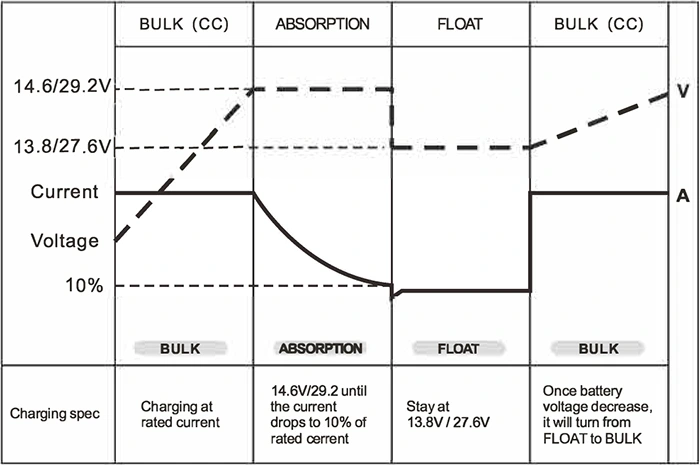

Charging Curve

Charging Setting

12V Charger Setting
Battery Type	Bulk/ Absorption	Float
LiFePO4	14.6V
AGM	14.8V	13.8V
Calcium	15.0V	13.8V
STD	14.4V	13.4V
GEL	14.2V	13.2V
