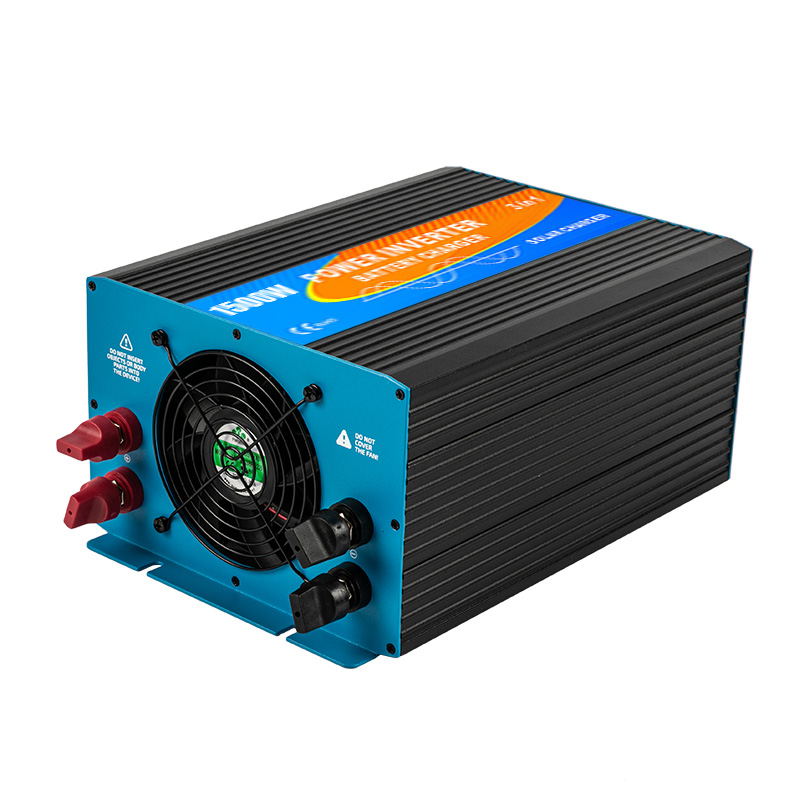

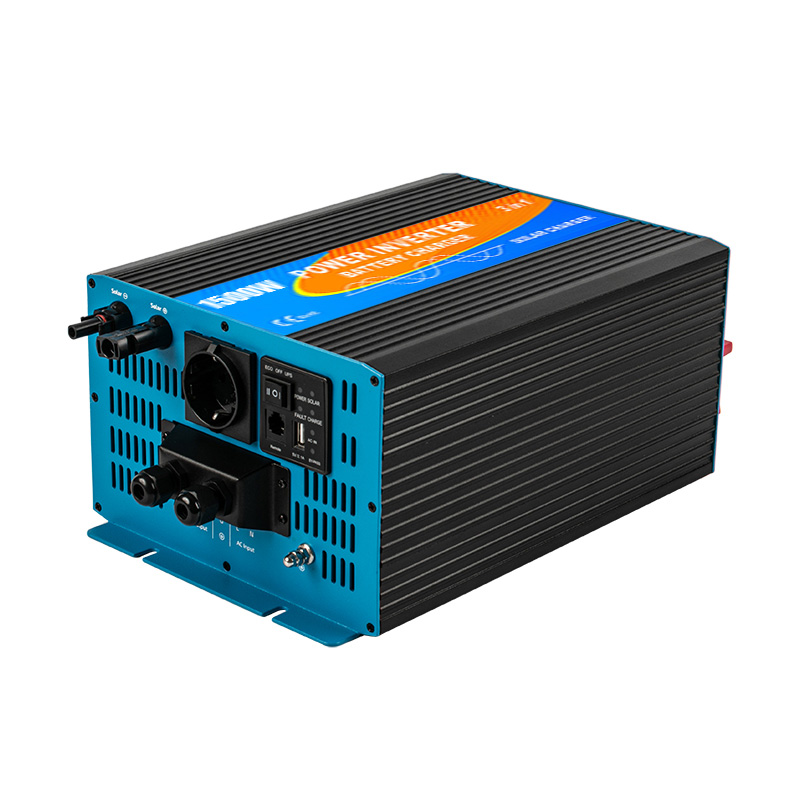

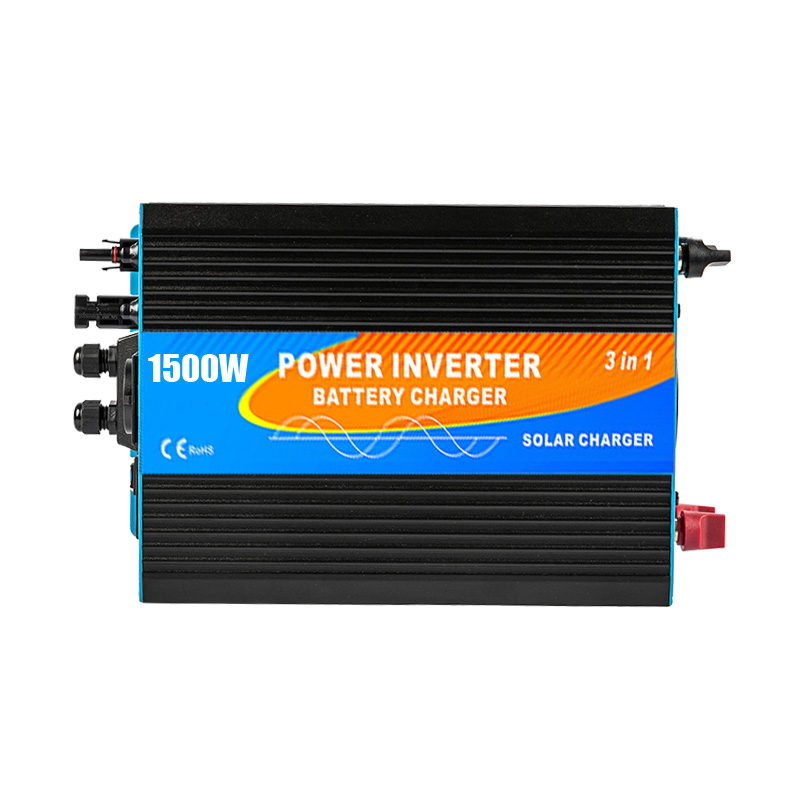

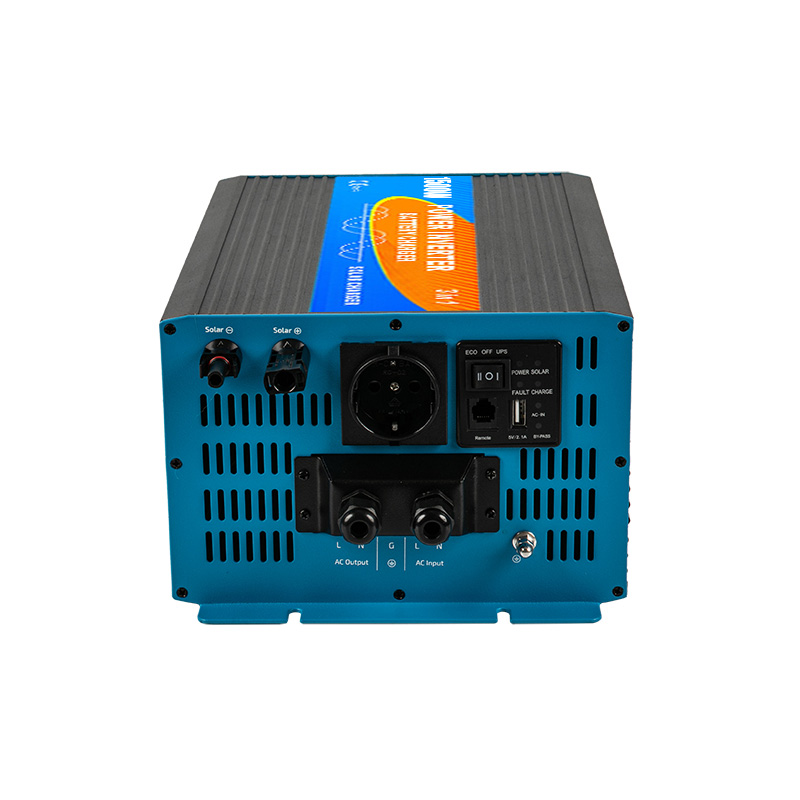

Pure sine wave power inverter provides a voltage of 120V/230V with a waveform equal to the domestic electricity.KOSUN 1500w MPPT inverter with 1500w continue power and peak power 3000w.The inversor could work with multi power supply by solar energy,battery power,AC main to the appliances for the interruption operating.
KOSUN 1500w MPPT solar power inverter DC to AC single phase hybrid pure sine wave converter apply to the off grid solar power system,we design the Inverter,battery charger, solar controller integrated together which directly connect with the solar panels for power supply to applications and charger to the battery,when there is not solar power,the inverter immediately transfer to the battery,then,battery discharge to load application,finally,the battery power use out,main power works at once for uninterrupted power to regular operation of device.KOSUN factory has built over 10 years and equipped with advanced machines for the standard process of produce like SMD,wave soldering,reflow soldering,AOI,spray paint.The inverters must pass the strict test before packing such as vibration test,high & low temperature alternating test,salty spray test etc,and the converter paint with auto machine for more popular labels.KOSUN converters have passed various certifications CE/LVD/RoHS/E-Mark/TUV and the UL/REACH/SGS report,as well as the IATF 16949 which is important for you to operate the inversor for the RV,electronic vehicles,camping emergency power,truck and so on.The reasonable factory inverter price supply to you with OEM,ODM produce,welcome to negotiate with us for more information.
Product parameter(Specification) of the 1500w MPPT inverter
|
Pure Sine Wave Inverter With MPPT Function |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
KSC1500PPT |
KSC1500PPT |
KSC1500PPT |
KSC1500PPT |
KSC1500PPT |
KSC1500PPT |
|
INVERTER |
RATED PPOWER |
1500W |
|||||
|
SURGE POWER |
3000W |
||||||
|
AC VOLTAGE |
110V |
230V |
|||||
|
FREQUENCY |
60±1Hz |
50±1Hz |
|||||
|
WAVEFORM |
Pure sine wave inverter (THD<5%) |
||||||
|
AC REGULATION |
10% |
||||||
|
BAT.VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
VOLTAGE RANGE |
10.5-15V |
21-30V |
42-60V |
10.5-15V |
21-30V |
42-60V |
|
|
NO LOAD CURRENT DRAW |
0.65A |
0.32A |
0.16A |
0.65A |
0.32A |
0.16A |
|
|
EFFICIENCY |
87% |
88% |
89% |
88% |
89% |
90% |
|
|
AC CHARGER |
CHAGER CURRENT |
15A |
8A |
4A |
15A |
8A |
4A |
|
INPUT VOLTAGE RANGE |
80-130VAC |
170-260VAC |
|||||
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
MPPT SOLAR CHARGER |
MPPT CHARGER EFFICIENCY |
97% |
97% |
||||
|
INPUT VOLTAGE RANGE |
15-70V |
24-70V |
48-70V |
15-70V |
24-70V |
48-70V |
|
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
SOLAR CHARGER CURRENT |
20A Max |
||||||
|
PROTECTIONS |
BAT.LOW ALARM(VDC) |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
|
BAT.LOW SHUTDOWN |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
|
|
BAT.OVER SHUTDOWN |
15.5+0.2 |
31+0.4 |
62+0.8 |
15.5+0.2 |
31+0.4 |
62+0.8 |
|
|
BAT.REVERSE POLARITY |
FUSE |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
360*220*150 |
||||||
|
PACKING(cm) |
55*35*26,1PC/CTN,8.5KGS |
||||||
Product feature and application of the1500w MPPT inverter
①. Optional UPS or Energy saving mode(ECO);
②. Pure sine wave output(THD<0.4%);
③. High efficiency up to 86%;
④. Complete LED indication for operating status;
⑤. Full digital controlled;
⑥. Solar charging current max 20A;
⑦. AC battery charger current max 20A;
⑧. Fast transfer time 16ms;
⑨. 3-step charge wary;
Deliver,Shipping And Serving of the 1500w MPPT inverter
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process. inverter pack with customized color box or neutral packages according to the customer demands.
FAQ
A. What character of your company?
KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
