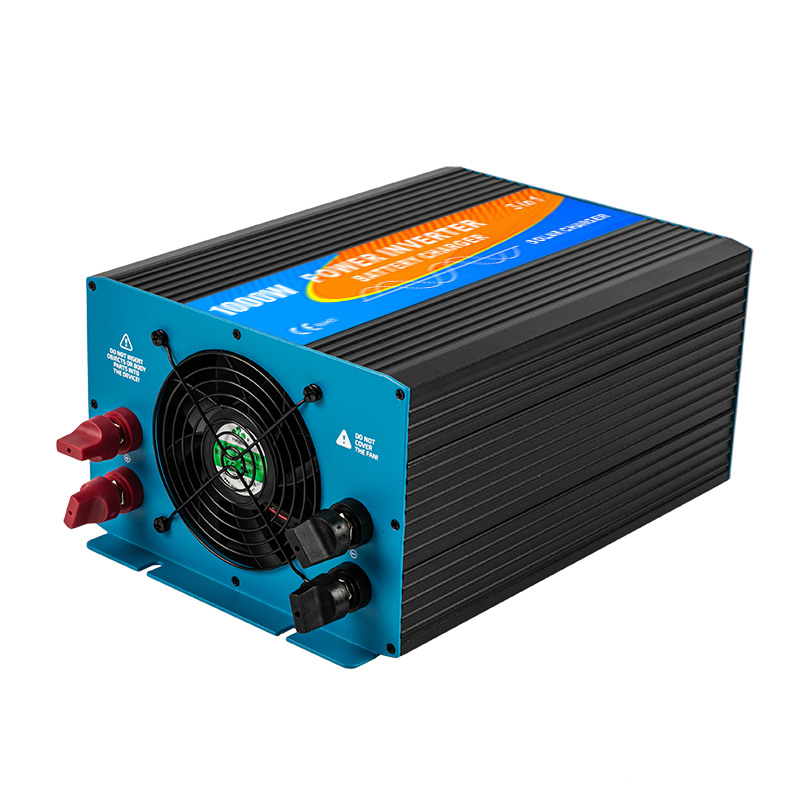

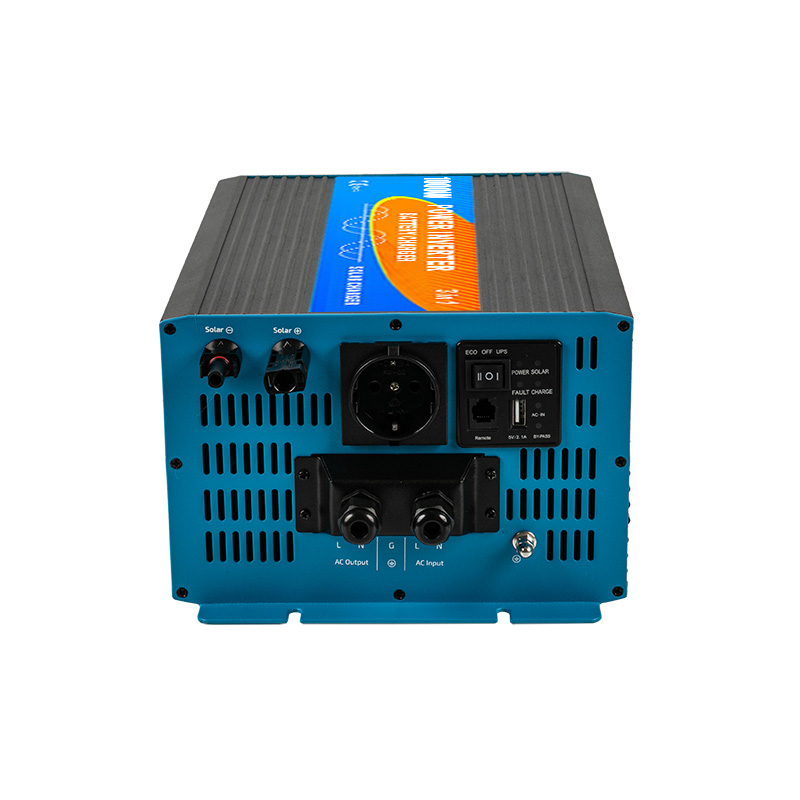

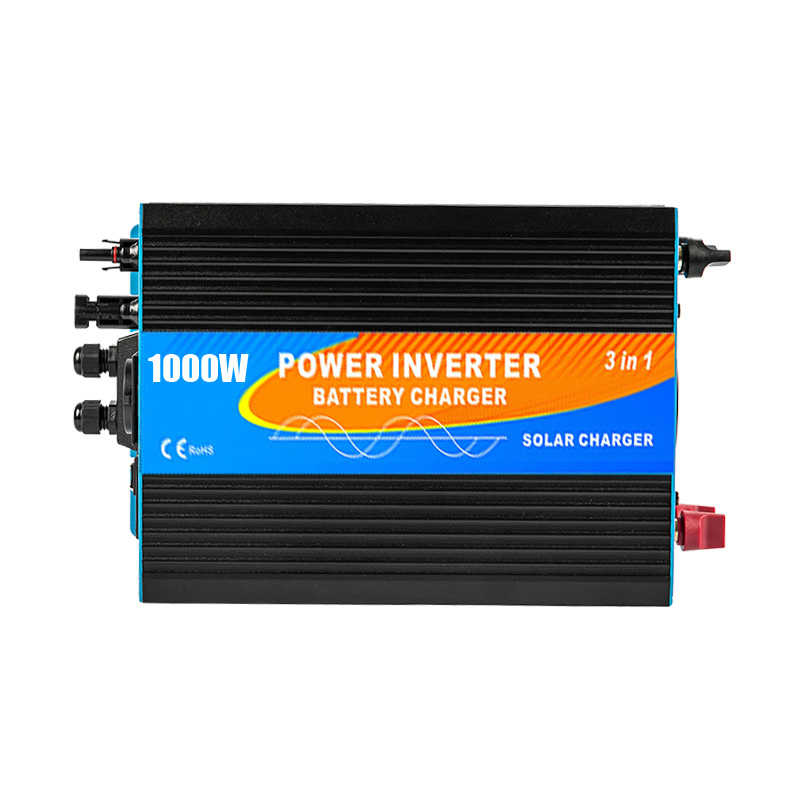

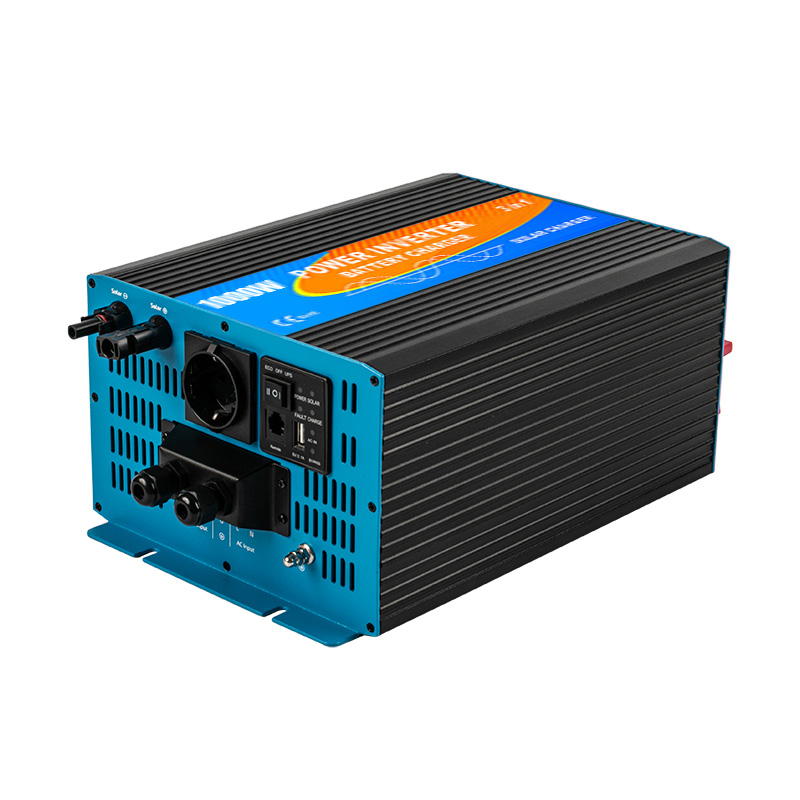

KOSUN 1000w MPPT inverter design with inverter,battery charger,solar controller integrity apply for the off grid solar system. The inverter 1000w MPPT continue power 1000w,peak power 2000w with multi protections.The MPPT inversor use for the cars/vans/boats/emergency power/household etc. Guarantees a waveform of the output current at 110V/230V as the normal power grid, so it is much safer and cleaner with immediate benefits
KOSUN 1000W MPPT solar power inverter fully digital controlled by an advanced CPU,the system is a pure sine wave inverter equipped with an AC charger and solar charger,it can also operate under UPS and energy saving mode.1000W MPPT inverter is capable of drawing energy from solar panel which provide uninterrupted power(UPS mode).Besides providing uninterrupted power,it also has user adjustable energy saving mode(ECO mode).The main purposes of energy reduction and building an independent sub power station are realized.We can say that this system is series is a multi-functional and designed to be environmentally friendly.The system will automatically detect the input sources(whether AC main or solar panels exist) and then adjust its internal setting.Users can also set up UPS and (ECO) by themselves based on their special needs,geographic area and environmental conditions.
Product parameter(Specification) of the 1000w MPPT inverter
|
Pure Sine Wave Inverter With MPPT Function |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
KSC1000PPT |
KSC1000PPT |
KSC1000PPT |
KSC1000PPT |
KSC1000PPT |
KSC1000PPT |
|
INVERTER |
RATED PPOWER |
1000W |
|||||
|
SURGE POWER |
2000W |
||||||
|
AC VOLTAGE |
110V |
230V |
|||||
|
FREQUENCY |
60+1Hz |
50+1Hz |
|||||
|
WAVEFORM |
Pure sine wave inverter (THD<5%) |
||||||
|
AC REGULATION |
10% |
||||||
|
BAT.VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
VOLTAGE RANGE |
10.5-15V |
21-30V |
42-60V |
10.5-15V |
21-30V |
42-60V |
|
|
NO LOAD CURRENT DRAW |
0.65A |
0.32A |
0.16A |
0.65A |
0.32A |
0.16A |
|
|
EFFICIENCY |
87% |
88% |
89% |
88% |
89% |
90% |
|
|
AC CHARGER |
CHAGER CURRENT |
15A |
8A |
4A |
15A |
8A |
4A |
|
INPUT VOLTAGE RANGE |
80-130VAC |
170-260VAC |
|||||
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
MPPT SOLAR CHARGER |
MPPT CHARGER EFFICIENCY |
97% |
97% |
||||
|
INPUT VOLTAGE RANGE |
15-70V |
24-70V |
48-70V |
15-70V |
24-70V |
48-70V |
|
|
OUTPUT VOLTAGE |
12V |
24V |
48V |
12V |
24V |
48V |
|
|
SOLAR CHARGER CURRENT |
20A Max |
||||||
|
PROTECTIONS |
BAT.LOW ALARM(VDC) |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
10.8+02 |
21.6+0.4 |
43.2+0.8 |
|
BAT.LOW SHUTDOWN |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
10.2+02 |
20.4+0.4 |
40.8+0.8 |
|
|
BAT.OVER SHUTDOWN |
15.5+0.2 |
31+0.4 |
62+0.8 |
15.5+0.2 |
31+0.4 |
62+0.8 |
|
|
BAT.REVERSE POLARITY |
FUSE |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
0～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
30～+70℃/22～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
290*220*150 |
||||||
|
PACKING(cm) |
55*35*26,1PC/CTN,6.5KGS |
||||||
Product feature and application of the1000w MPPT inverter
①. Optional UPS or Energy saving mode(ECO);
②. Pure sine wave output(THD<0.4%);
③. High efficiency up to 90%;
④. Complete LED indication for operating status;
⑤. Full digital controlled;
⑥. Solar charging current max 20A;
⑦. AC battery charger current max 20A;
⑧. Fast transfer time 16ms;
⑨. Multi stages charge way;
⑩. MPPT solar charger;
⑪. 18 month global warranty.
Deliver,Shipping And Serving of the 1000w MPPT inverter
It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc. The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.For the small orders,we will pack with neutral packages.The OEM products will pack with customer’s color package.
FAQ
A. What character of your 1000w MPPT inverter?
Real loading power 1000w with surge power 2000w inverter,the unit could work with ECO mode:charge to battery and load appliances by the solar power,then,the battery discharge to the appliances when there is lack of solar energy.finally,the AC main load appliances for interruption operation if the battery is full discharge.
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for the 1000w MPPT inverter to meet popular market demands which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service,the small order will do with neutral sticker and pack with neutral packages;
D. How about the warranty?
Warranty is 18 months for 1000w MPPT inverter.
