1500w Pure Sine Wave Inverter

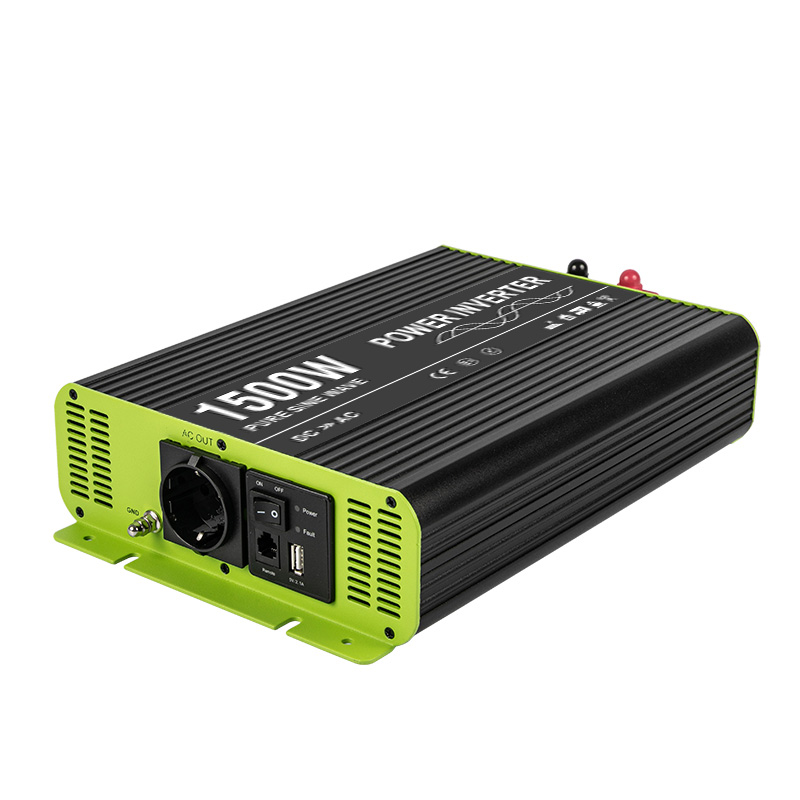

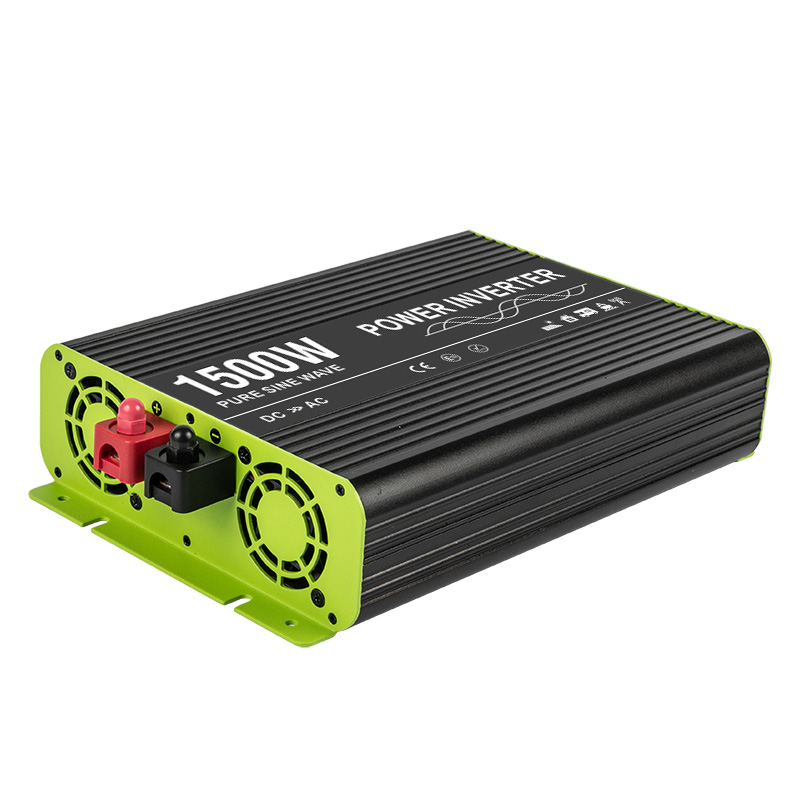

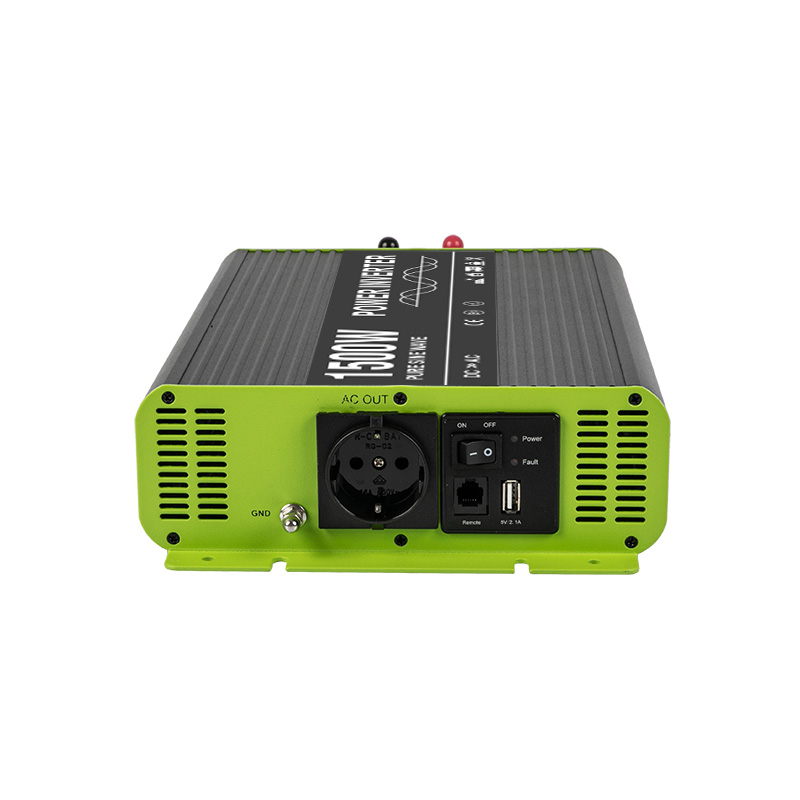

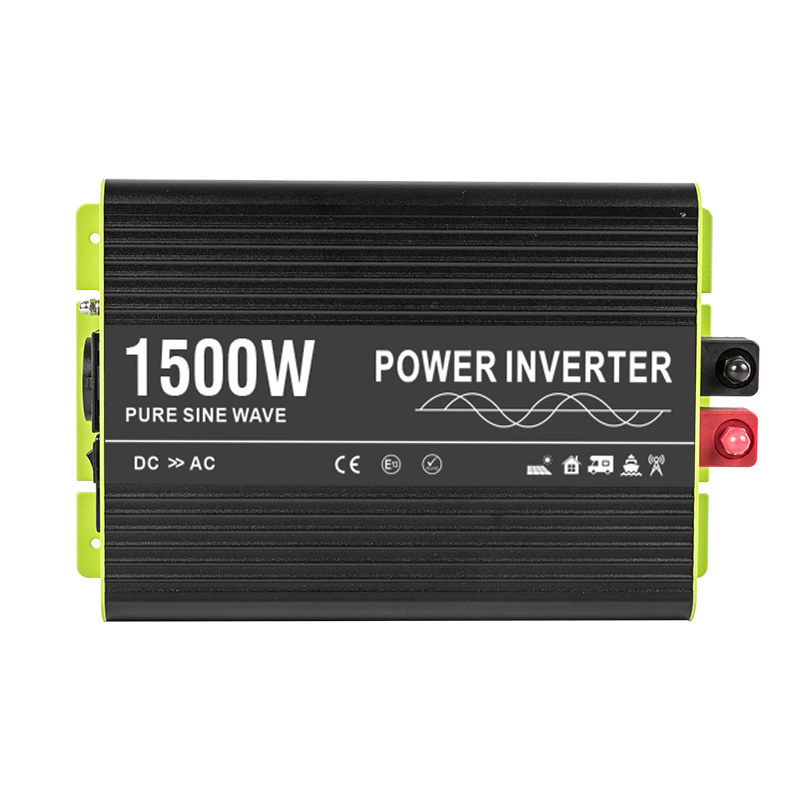

KOSUN DC to AC power inverter 1500w Pure Sine Wave Inverter real loading 1500w,peak power 3000w ,power inverter 1500w design with aluminum shell and plastic terminals for safety operation,,KOSUN converter win a higher reputation for the good quality with multi advantages.

Model:KS1500P

Send Inquiry    PDF Download

Product Description

KOSUN solar power inverter dc to ac 1500w pure sine wave converter provide with factory competitive price for the bulk orders,supply by professional manufacture and supplier which has built over 10 years and developed with advanced equipment for the strict and standard process of produce,KOSUN converter have more protections like low voltage,over voltage,over loading,high temperature,short circuit,reverse polarity test when produce them on the standard data sheet of each unit.KOSUN inverters must pass the vibration test,high & low temperature alternating test,salty spray test for all solar power inverter,thus,KOSUN factory could support the client with OEM ODM to develop the business in local region.Welcome to share your special requirement to us for further teamwork.


Product Parameter (Specification) of the 1500w pure sine wave inverter

MODEL


RS1500P-112

RS1500P-124

RS1500P-148

RS1500P-212

RS1500P-224

RS1500P-248

OUTPUT

RATED POWER

1500W

SURGE POWER

3000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

150A

75A

37.5A

150A

75A

37.5A

NO LOAD CURRENT DRAW

<0.8A

<0.65A

<0.55A

<0.8A

<0.65A

<0.55A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

290*220*90

PACKING(cm)

43*30.5*37 ;2pcs/CTN,11.5KG


Product Feature And Application of the KOSUN 15000W continue loading pure sine wave power inverter

①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;

⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 1500w pure sine wave inverter

A. CE Compliance to EN55032

B. RoHS Compliance to EN50581

C. LVD Compliance to EN60950-1

D. E-Mark E13

E. IATF 16969

F. REACH/UL/TUV report

G. each unit has a specific test report during whole process of test

E.every orders do the casual inspections and do the report during the produce and before shipment.


Deliver,Shipping And Serving of the 1500w pure sine wave inverter

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.1500w pure sine wave inverter pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of the manufacture?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Do you accept OEM produce?

Yes,of course.KOSUN accept the OEM ODM for clients to improve the market share and ideal benefits for the clients in local market.

C. Whether KOSUN accept small order?

Yes,small trial order,bulk order all supply to you according to your real requirement.Please contact with us by free for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.
