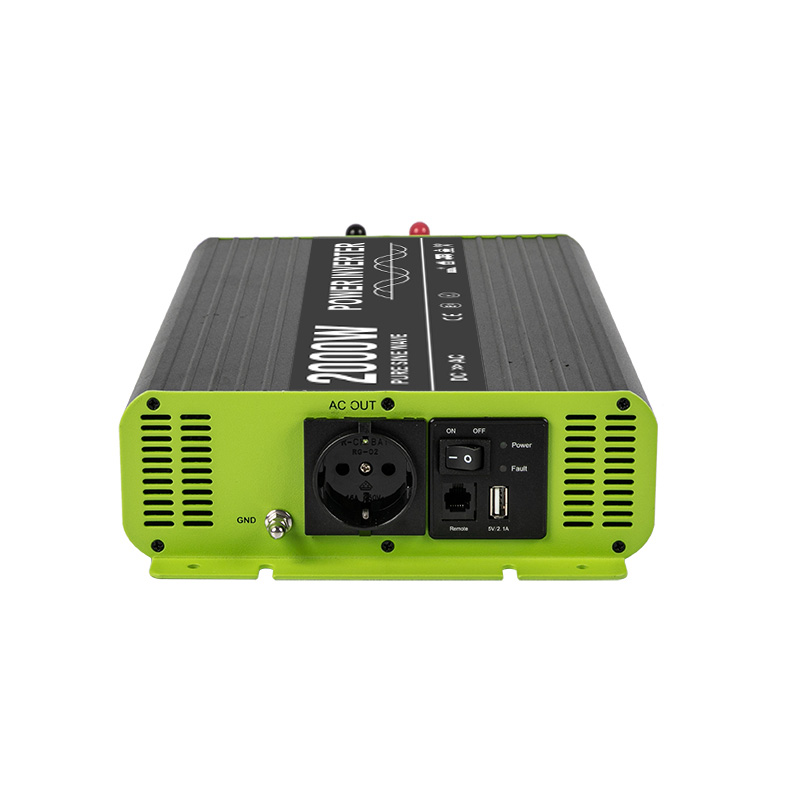

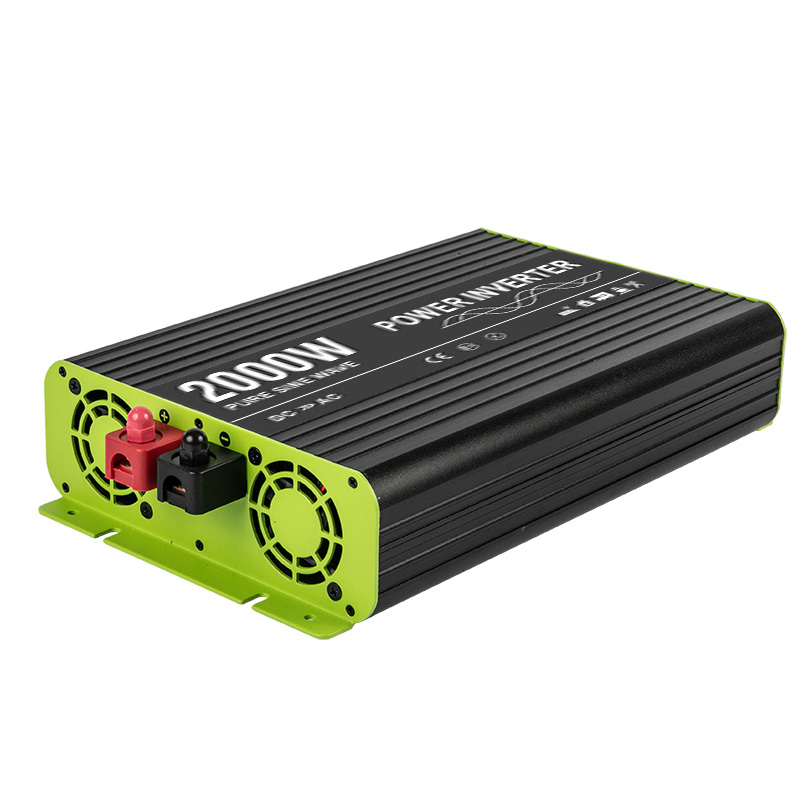

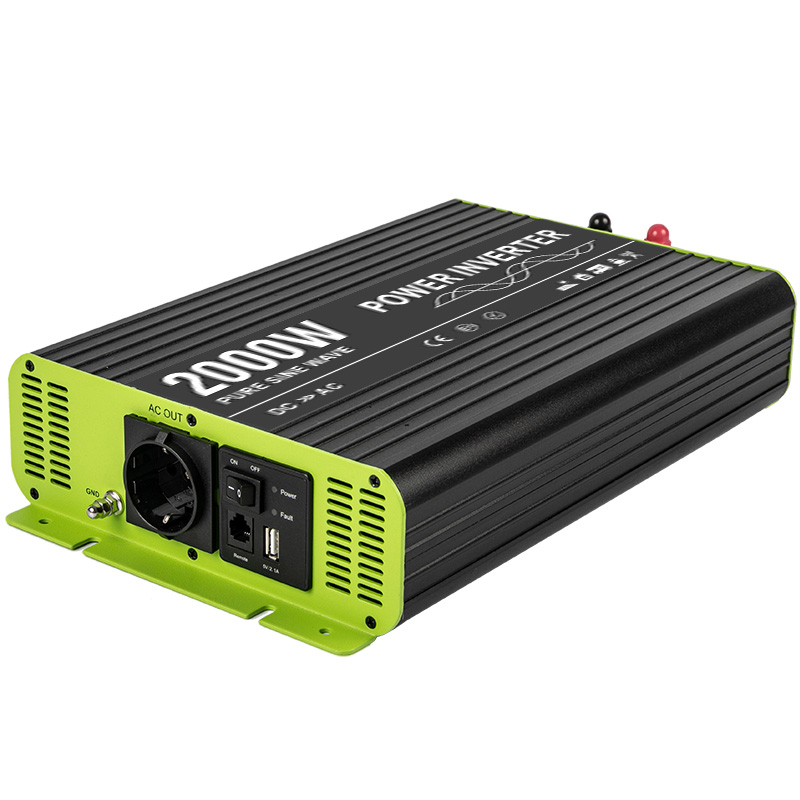

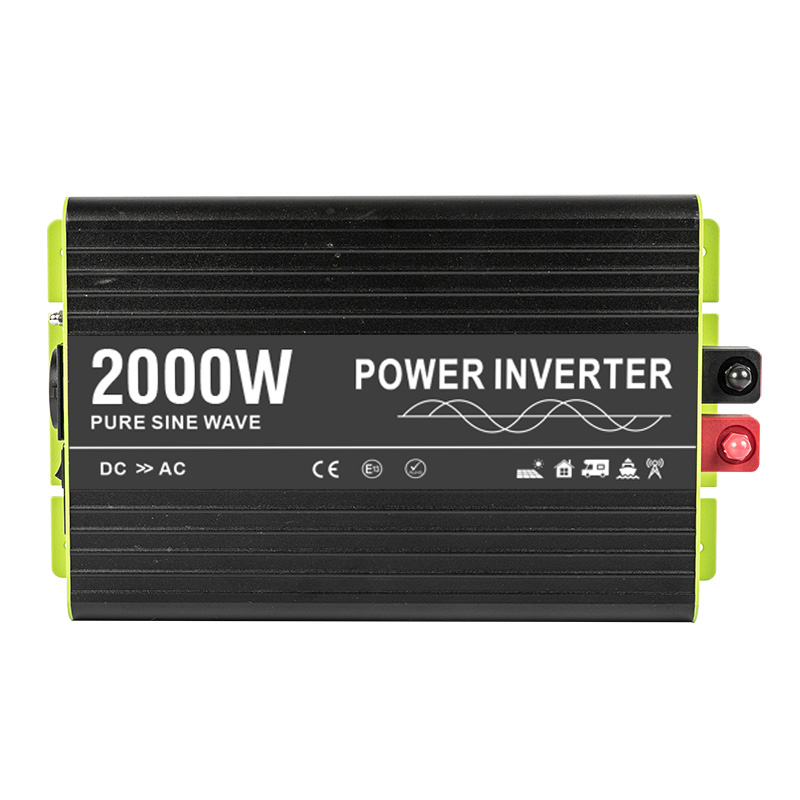

KOSUN high efficiency dc to ac portable power inversor 2000w pure sine wave inverter with multi advantages for the OEM/ODM to customers.KOSUN supply the inverters & converters with modern auto machine by SMT, wave soldering,reflow soldering,mounter,painting spray machine,the strict test by vibration test,high & low temperature alternating test,salty spray test etc,thus,KOSUN converter sale bulk inverters to all over the world with high reputation.
KOSUN factory build over 10 years with reasonable factory price and reliable quality as well as high reputation,the converter has an accurate test report for the whole produce which ensure the advanced-class from us,KOSUN solar power converter dc to ac 2000w pure sine wave inverter provide with factory competitive price for the bulk orders,KOSUN converter have more protections like low voltage,over voltage,over loading,high temperature,short circuit,reverse polarity test when produce them on the standard data sheet of each unit.KOSUN 2000w pure sine wave inverter must pass the vibration test,high & low temperature alternating test,salty spray test for all solar power inverter,thus,KOSUN factory could support the client with OEM ODM to develop the business in local region.Welcome to share your special requirement to us for further teamwork.
Product Parameter (Specification) of the 2000w pure sine wave inverter
|
New Series Pure Sine Wave Inverter |
|||||||
|
★★★★★ Highly recommended products |
|||||||
|
|
■ Pure sine wave output(THD<3%); |
||||||
|
MODEL |
|
RS2000P-112 |
RS2000P-124 |
RS2000P-148 |
RS2000P-212 |
RS2000P-224 |
RS2000P-248 |
|
OUTPUT |
RATED POWER |
2000W |
|||||
|
SURGE POWER |
4000W |
||||||
|
AC VOLTAGE |
Factory setting set at 100V/110V/120V AC |
Factory setting set at 220V/230V/240V AC |
|||||
|
FREQUENCY |
50Hz/60Hz optional |
||||||
|
WAVE FORM |
Ture sine wave(THD<3%) at rated input voltage |
||||||
|
AC REGULATION |
±10% |
||||||
|
STANDARD RECEPTACLES |
Schuko/UK/Australia/Universal/USA/France/JP/Brazile |
||||||
|
FRONT PANEL INDICATOR |
Operation and fault status |
||||||
|
INPUT |
BAT.VOLTAGE |
12V |
24V |
48V |
12v |
24V |
48V |
|
VOLTAGE RANGE |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
9.8-16.2VDC |
19.7-32.3VDC |
39.5-63.5VDC |
|
|
DC CURRENT |
200A |
100A |
50A |
200A |
100A |
50A |
|
|
NO LOAD CURRENT DRAW |
<0.9A |
<0.78A |
<0.65A |
<0.9A |
<0.78A |
<0.65A |
|
|
EFFICIENCY |
89% |
>90% |
92% |
88% |
90% |
91%% |
|
|
BATTERY TYPES |
Recommend use Open & sealed lead acid battery |
||||||
|
BATTERY INPUT PROTECTION |
BAT.LOW ALARM |
10.5±0.2V |
21±0.3V |
42±0.5V |
10.5±0.2V |
21±0.3V |
42±0.5V |
|
BAT.LOW SHUTDOWN |
10.2±0.2V |
20±0.3V |
40±0.5V |
10.2±0.2V |
20±0.3V |
40±0.5V |
|
|
BAT.OVER SHUTDOWN |
16±0.2V |
32±0.3V |
64±0.5V |
16±0.2V |
32±0.3V |
64±0.5V |
|
|
REVERSE POLARITY |
yes |
||||||
|
OUTPUT PROTECTION |
OVER TEMPERATURE |
≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off. |
|||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
OUTPUT SHORT |
Protection type:Shut down o/p voltage;re-power on to recover |
||||||
|
OVER LOAD |
100%-120% rated load for 10 sec. |
||||||
|
Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor |
|||||||
|
ENVIRONMENT |
WORKING TEMP. |
-15℃～+40℃@100% load;60℃ @50% load |
|||||
|
WORKING HUMIDITY |
20%90% RH non-condensing |
||||||
|
STORAGE TEMP. |
-30℃～+70℃/-22℉～+158℉ |
||||||
|
STORAGE HUMIDITY |
10%95% RH non-condensing |
||||||
|
SAFETY |
CE |
Compliance to EN55032 |
|||||
|
LVD |
Compliance to EN60950-1 |
||||||
|
ROHS |
Compliance to EN50581 |
||||||
|
E-MARK |
E13 |
||||||
|
OTHERS |
ISO9001/IATF16949/BSCI |
||||||
|
UL test |
Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7 |
||||||
|
REACH |
No.:1907/2006 |
||||||
|
certificate of registration |
IATF 16949:2016 |
111458/A/0001/SM/En |
|||||
|
OTHERS |
USB port |
5V/2.1A |
|||||
|
DIMENSION L*W*H (mm) |
320*220*90 |
||||||
|
PACKING(cm) |
45.5*30*36 ;2pcs/CTN,13.5KG |
||||||
Product Feature And Application of the KOSUN 15000W continue loading pure sine wave power inverter
①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.
Product Qualification of the 2000w pure sine wave inverter
A. CE Compliance to EN55032
B. RoHS Compliance to EN50581
C. LVD Compliance to EN60950-1
D. E-Mark E13
E. IATF 16969
F. REACH/UL/TUV report
Deliver,Shipping And Serving of the 2000w pure sine wave inverter
Workshop will arrange the order after confirming the goods with customers,2000w pure sine wave solar power inverter pack with customized color box or neutral packages for various orders;
here are various methods to transport by express/vessel/air/train for clients choice.
As the professional manufacture,KOSUN develop with the outstanding engineers for the technical department,thus,KOSUN can solve the problems for the customers according to the real requirement.
FAQ
A. What character of your company?
We are one of professional manufacture for various types of inverter:modified sine wave types and pure sine wave types from 2011;
B. Do you accept OEM produce?
Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.
C. Whether you accept small order?
Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;
D. How about the warranty?
Warranty is 18 months for all goods.
