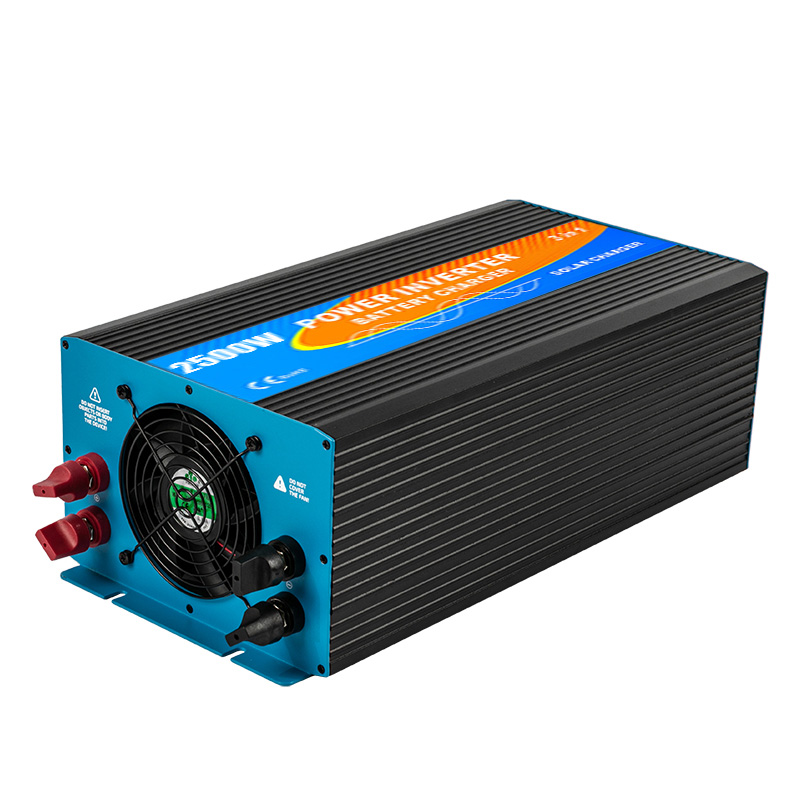

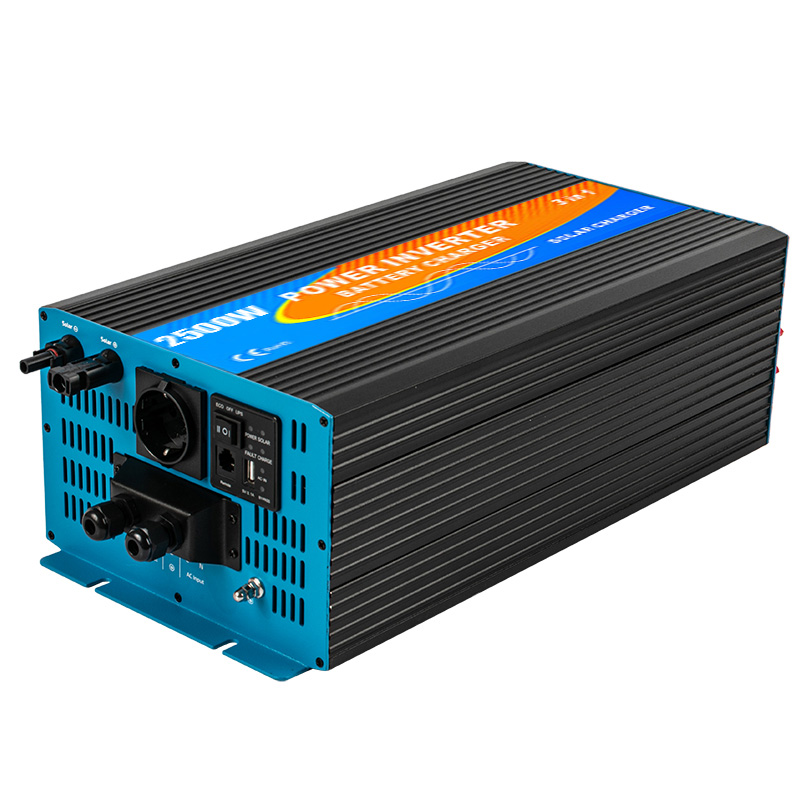

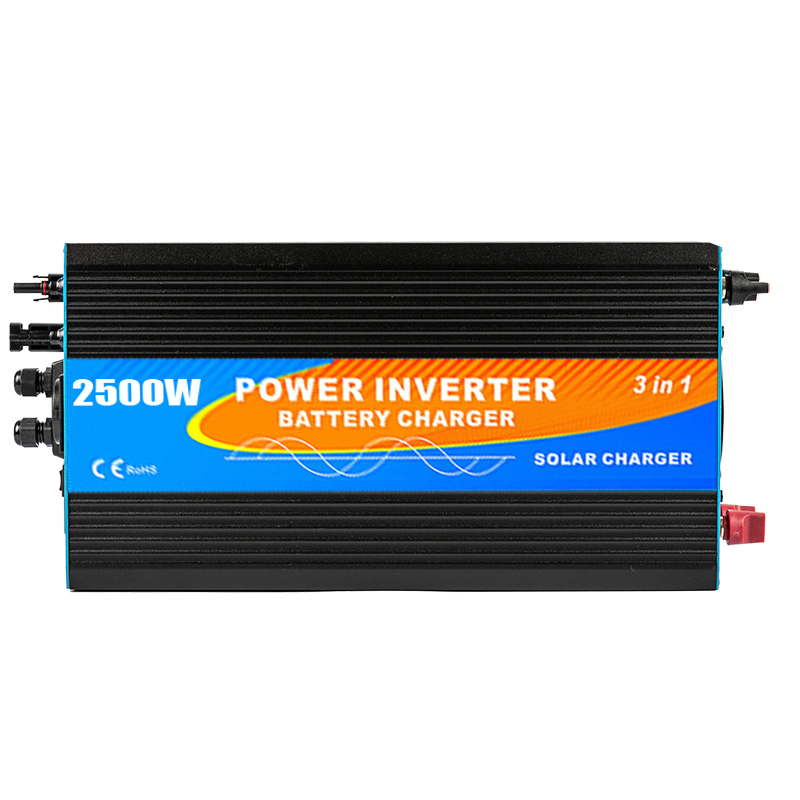

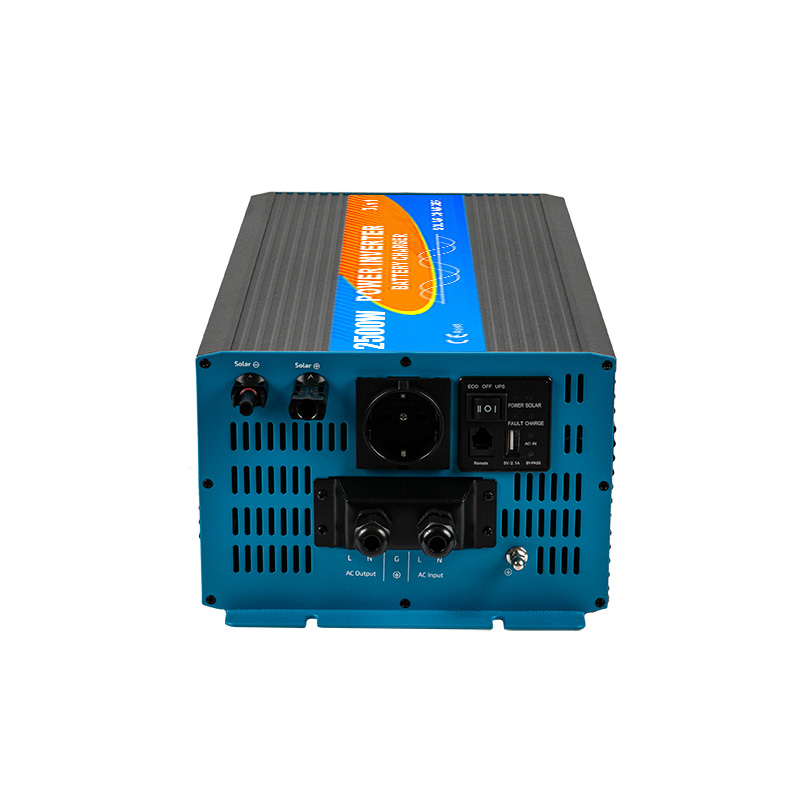

2500W Mppt Inverter

Hot sale factory price of 2500w MPPT inverter with real loading power 2500w and peak power 5000w pure sine wave converter is an integrity unit for the inverter,battery charger,solar controller which use for the off grid solar system, it is easy to operate with solar panels,using the green solar power could save more energy

Send Inquiry

Product Description

A. KOSUN has built over 10 years and a mature technical system for the 2500W MPPT solar power pure sine wave inverter, inverters equipped with an AC charger and solar controller,it can also operate under UPS and ECO mode.2500W MPPT inverter is capable of drawing energy from solar panel which provide uninterrupted power(UPS mode).Besides providing uninterrupted power,it also has user adjustable energy saving mode(ECO mode).The main purposes of energy reduction and building an independent sub power station are realized.We can say that this system is series is a multi-functional and designed to be environmentally friendly.The system will automatically detect the input sources(whether AC main or solar panels exist) and then adjust its internal setting.Users can also set up UPS and (ECO) by themselves based on their special needs,geographic area and environmental conditions.KOSUN factory have equipped with advanced machines for the standard process of produce like SMD,wave soldering,reflow soldering,AOI,spray paint.The inverters design with various protections(12V input inverter sample):

Input low voltage protection:when the battery voltage is below 10.5± 0.5Vbuzzer sount 2 times which indicates DC power supply voltage is descending and batteries need to recharge;

When input voltage is below 10.0±0.5v,buzzer sound 3 times and red light turn on,AC output will be automatically shut off.

Input over voltage protection:When input voltage reach 16.0v±0.5v,buzzer sound 4 times and red light turn on,the AC output will be shut off automatically;

Short Circuit protection: when short circuit occur,buzzer sound 11 times and red light turn on,output will be shut off;

Over load protection: When overloads occur,buzzer constantly sound and red light turn on,output will be shut off.

Reverse polarity protection:when battery terminals are reverse connected,the inverter won’t work until the correct connect.

Over temperature protection:when heat sink temperature exceeds 45℃,the inner cooling fan will automatically turn on to cool the inverter;when inner temperature exceeds 75℃,buzzer sound 5 times and red light turn on,AC output will automatically shut off.


Product parameter(Specification) of the 2500w MPPT inverter

Pure Sine Wave Inverter With MPPT Function

■ Pure sine wave output(THD<3%);
■ High surge power up to 2 times of real loading power;
■ Loading 1.5times rated power for 10s,2times for 2s;
■ High efficiency up to 92%;
■ Power ON-OFF switch;
■ Soft start;
■ Built-in fuse;
■ More stable working functions
■ Front panel indicator for operation status;
■ Thermostatically and load controlled cooling fan;
■ Protections:Bat. low alarm/Bat. low shutdown/Bat. over shutdown/output short/input reverse protection/overload/over Temp.
■ 18 months wattanty

MODEL


KSC2500PPT
-112

KSC2500PPT
-124

KSC2500PPT
-148

KSC2500PPT
-212

KSC2500PPT
-224

KSC2500PPT
-248

INVERTER

RATED PPOWER

2500W

SURGE POWER

5000W

AC VOLTAGE

110V

230V

FREQUENCY

60±1Hz

50±1Hz

WAVEFORM

Pure sine wave inverter (THD<5%)

AC REGULATION

10%

BAT.VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE

10.5-15V

21-30V

42-60V

10.5-15V

21-30V

42-60V

NO LOAD CURRENT DRAW

0.65A

0.32A

0.16A

0.65A

0.32A

0.16A

EFFICIENCY

87%

88%

89%

88%

89%

90%

AC CHARGER

CHAGER CURRENT

15A

8A

4A

15A

8A

4A

INPUT VOLTAGE RANGE

80-130VAC

170-260VAC

OUTPUT VOLTAGE

12V

24V

48V

12V

24V

48V

MPPT SOLAR CHARGER

MPPT CHARGER EFFICIENCY

97%

97%

INPUT VOLTAGE RANGE

15-70V

24-70V

48-70V

15-70V

24-70V

48-70V

OUTPUT VOLTAGE

12V

24V

48V

12V

24V

48V

SOLAR CHARGER CURRENT

20A Max

PROTECTIONS

BAT.LOW ALARM(VDC)

10.8+02

21.6+0.4

43.2+0.8

10.8+02

21.6+0.4

43.2+0.8

BAT.LOW SHUTDOWN

10.2+02

20.4+0.4

40.8+0.8

10.2+02

20.4+0.4

40.8+0.8

BAT.OVER SHUTDOWN

15.5+0.2

31+0.4

62+0.8

15.5+0.2

31+0.4

62+0.8

BAT.REVERSE POLARITY

FUSE

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

430*220*150

PACKING(cm)

55*35*26,1PC/CTN,11.2KGS


Product feature and application of the 2500w MPPT inverter

①. Real power 2500w,surge power 5000w pure sine wave

②. Optional UPS or Energy saving mode(ECO);

③. High efficiency up to 85%;

④. Complete LED indication for operating status;

⑤. Full digital controlled;

⑥. Solar charging current max 20A;

⑦. AC battery charger current max 20A;

⑧. Fast transfer time 16ms;

⑨. 3-step charge wary;


Deliver,Shipping And Serving of the 2500w MPPT inverter

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process. inverter pack with customized color box or neutral packages according to the customer demands.


6.FAQ

A. What character of your company?

KOSUN are one of professional manufacture with two factories built in 2011 which equip with advanced auto-machine and modern assembly line for the standard process of produce,the products are more stable for the long time operation.The main products include pure sine wave inverter,inverter with charger,modified sine wave inverter,battery charger and power station etc,thus,welcome to negotiate with us for more information you want.

B. Do you accept OEM produce?

Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service,do with the neutral stickers and packages,OEM produce will do color package for the clients;

D. How about the warranty?

Warranty is 18 months for 2500w MPPT inverter under the regular operation according to the manual guidance.
