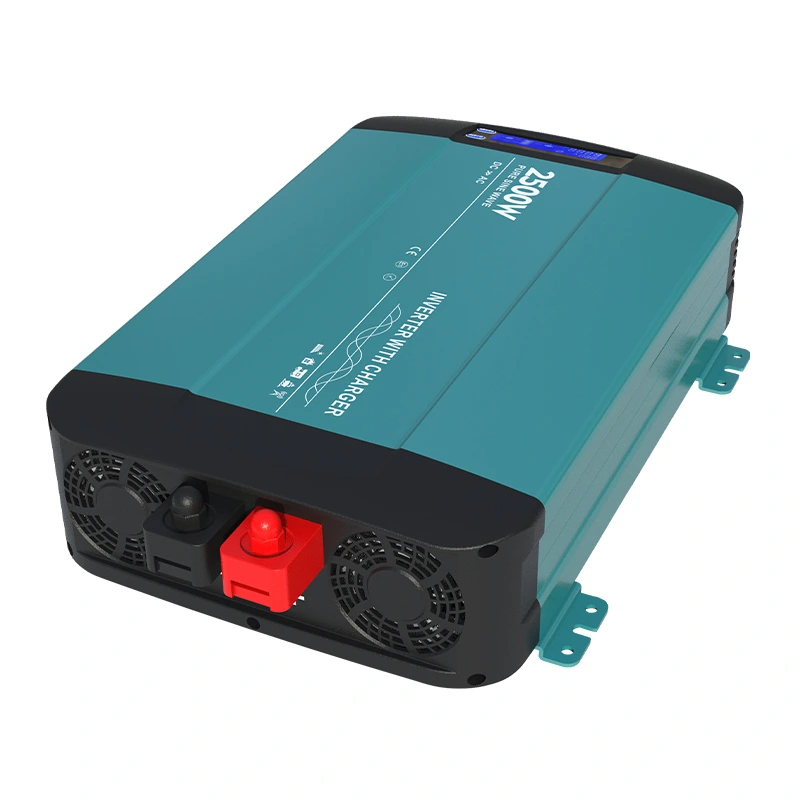

2500w Pure Sine Wave Inverter With Charger HK2500PC

Model:HK2500PC

As the professional manufacture, we would like to provide you high quality 2500w Pure Sine Wave Inverter With Charger HK2500PC. And we will offer you after-sale service and timely delivery.

Send Inquiry PDF DownLoad

Product Description

The following is the introduction of high quality 2500w Pure Sine Wave Inverter With Charger HK2500PC, hoping to help you better understand of our this charger. Welcome new and old customers to continue to cooperate with us to create a better future!

Features:

●Pure sine wave output (THD<5%)

●POWER ON/OFF Switch

●High Eficiency Up to 92%

●Built-in ATS and AC circuit breaker

●Transfer time less than 16ms

●USB:5V /2.1A / Type-C:Max 35W

●RS-485 communication

●Input & Output fully isolation

●Input Protection: Reverse Polarity (Fuse)/ Under Voltage / Over Voltage .

●Output Protection: Short Circuit/ Overload / Over Temperature / Over Voltage

MODEL		HKC2500P-112	HKC2500P-124	HKC2500P-212	HKC2500P-224
Inverter Mode
Input	Normal Voltage	12VDC	12VDC	12VDC	12VDC
	Input Voltage Range(±0.5V)	10.8~16VDC	21.6~32.0VDC	10.8~16VDC	21.6~32.0VDC
	Input Over-Voltage Protection(±0.5V)	16VDC	32VDC	16VDC	32VDC
	Input Under-Voltage Protection(±0.5V)	10VDC	20VDC	10VDC	20VDC
	Input Under-Voltage Warning(±0.5V)	10.8VDC	21.6VDC	10.8VDC	21.6VDC
	No Load Current	<0.72A	<0.36A	<0.72A	<0.36A
Output	Continuous Output Power	2500W±5%
	Surge Power	Load 5000W(2 Sec)
	Frequency	50/60Hz±1Hz(setting by factory)
	Output Voltage	100/110/115/120VAC±10%		200/220/230/240VAC±10%
	Min.Efficiency(Full Load)	89%	89%	89%	89%
	Output Wave form	Pure Sine Wave(THD<5%)
Protection	Input Protection	Over/Under Voltage,Reverse Polarity(Internal Fuse)
	AC Output Protection	Short-Circuit,Overload
	AC Input Protection	30 Amp Circuit Breaker		16 Amp Circuit Breaker
	Temperature protection	Shutdown
Charger Mode
AC input	Nominal Voltage/Frequency	110VAC,50/60Hz(setting by factory)		230VAC,50/60Hz(setting by factory)
	Input Voltage Range	90~130VAC		180~260VAC
	Input Frequency Range	50Hz:47~53Hz/60Hz:57~63 Hz
	Efficiency(Max.)	>88%
	Power Factor Correction(PFC)	>0.95(Max.)
DC Output	Charging Current Range	Max.40A	Max.20A	Max.40A	Max.20A
	Max.Output Voltage	14.4VDC	28.8VDC	Max.14.4VDC	Max.28.8CDC
	Battery Control (3-stage Battery Chargers)	Bulk /Absorption /Float
Signal and Control	Remote Control Panel (Optional)	LCD display
	Remote Control Terminal	RS485
	LCD display	voltage,wattage
	Relay Specification	30 Amp/120VAC@110V system		16Amp/250VAC@230V system
Environment
Temperature Range	Full Load	0~+40℃;60℃@70%power load
	Storage	0℃~70℃
Humidity Range		Max93%,Non-condensing
Cooling		Temperature &Load Controlled Cooling Fan
Others	Dimension (W×H×D)	439×252×88mmmm
	Weight	7.2KG
	Communication Port	RS-485(RJ-11 type connector),Ethernet(optional)

Mechanical Drawings:(439x252x88mm)

MODEL :HKC2500P

Charging Curve
