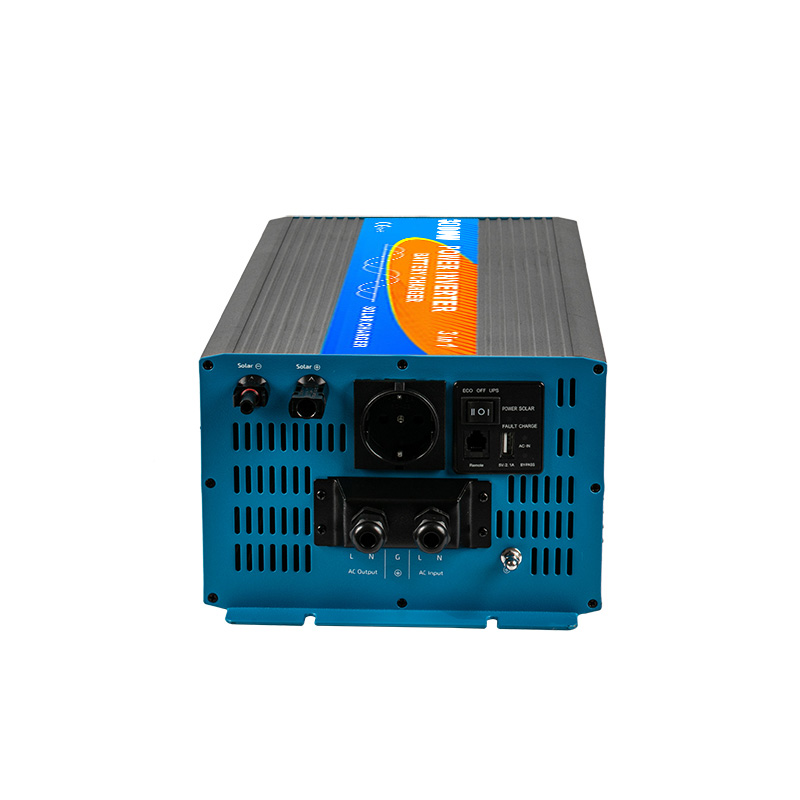

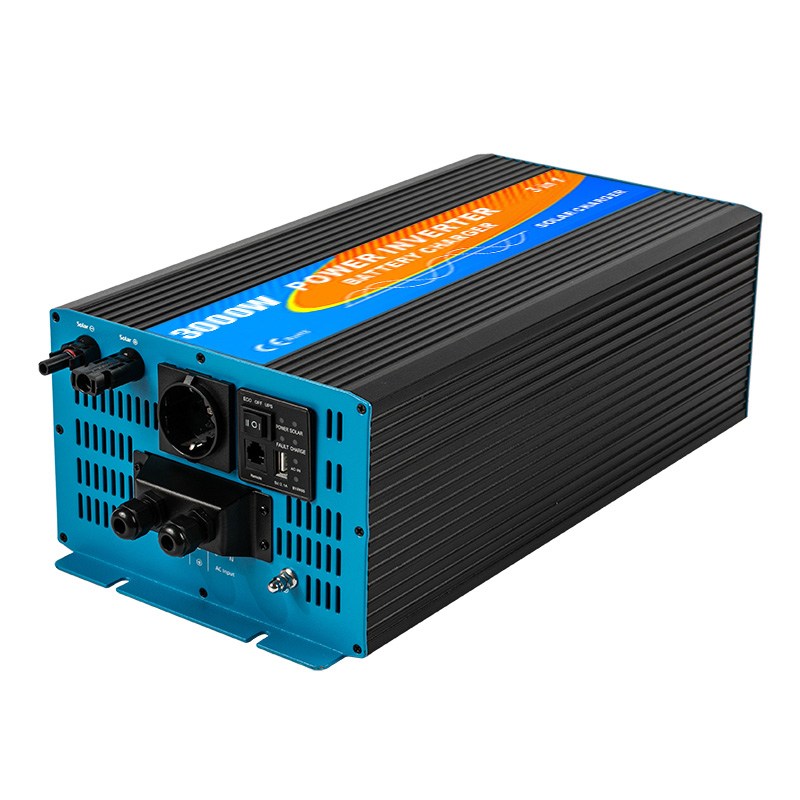

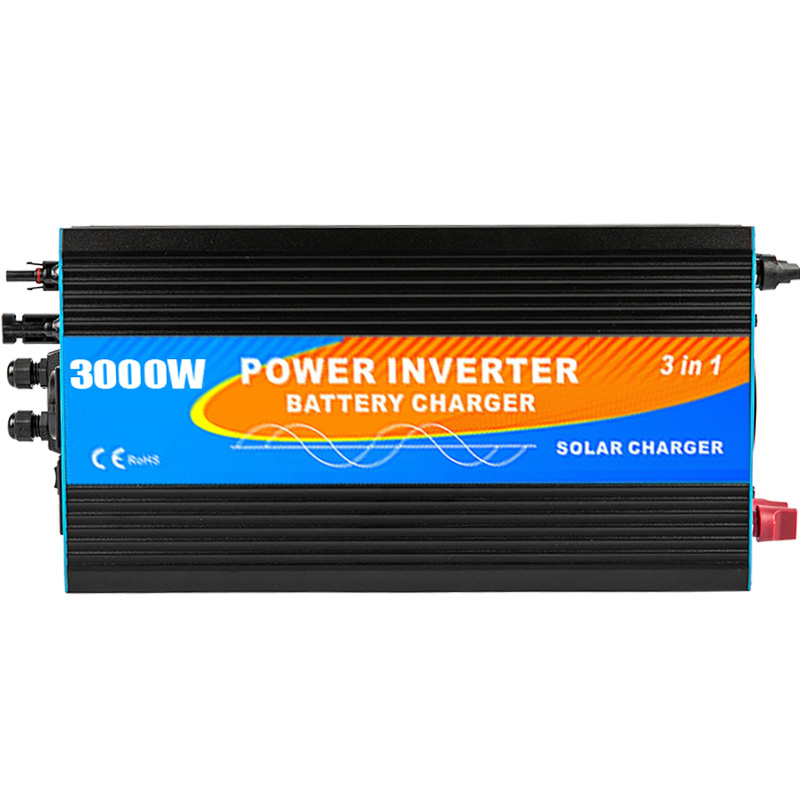

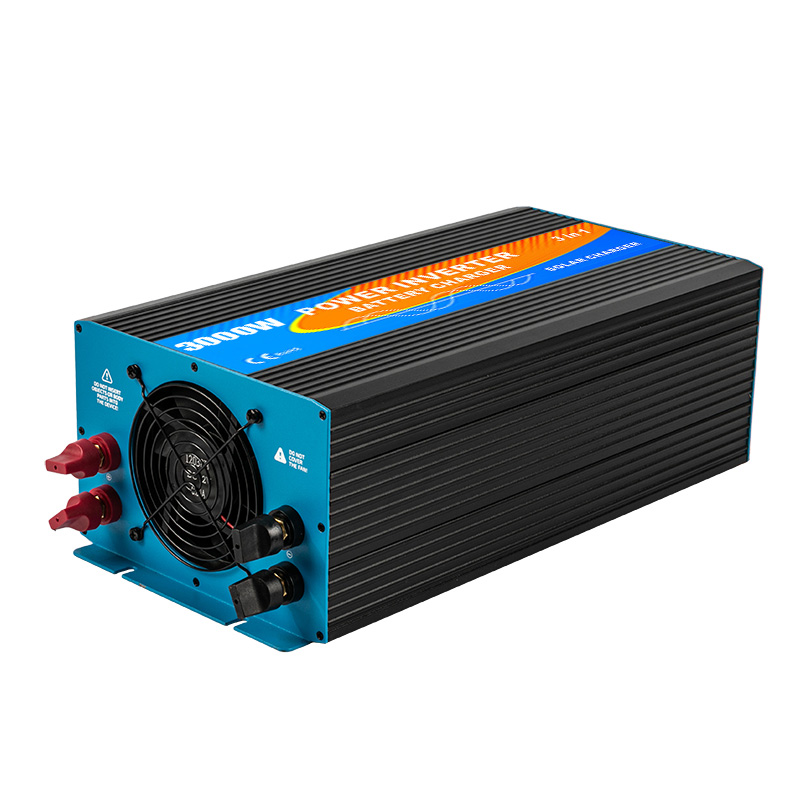

3000W MPPT Inverter
  • 3000W MPPT Inverter3000W MPPT Inverter
  • 3000W MPPT Inverter3000W MPPT Inverter
  • 3000W MPPT Inverter3000W MPPT Inverter
  • 3000W MPPT Inverter3000W MPPT Inverter

3000W MPPT Inverter

You can rest assured to buy customized 3000W MPPT Inverter from us. KOSUN pure sine wave solar power inverter 3000w MPPT with 3000w continue power and surge power 6000w,DC to AC single phase hybrid inverter use for RV/Truck/Vans etc.It designs with integrity solar controller,battery charger,and AC main for the appliances uninterrupted operation all the time.

Send Inquiry

Product Description

KOSUN 3000w MPPT solar power inverter DC to AC single phase hybrid pure sine wave converter use for off grid solar power system,emergency power supply,the 3000W MPPT inverter operating principle is that Inverter,battery charger, solar controller integrated together which directly connect with the solar panels for power supply to applications and charge to the battery,when there is no solar power,the inverters immediately transfer to the battery which battery discharge to load application for continue working,finally,AC main power works at once for uninterrupted power to regular operation of device when the battery fully discharged.

KOSUN factory has built over 10 years and a mature technical system for the stable quality inverters 3000w MPPT.The workshop has equipped with advanced machines for the standard process of produce like SMD,wave soldering,reflow soldering,AOI,spray paint.The inverters must pass the strict test before packing such as vibration test,high & low temperature alternating test,salty spray test etc,and the converter paint with auto machine for more popular labels.KOSUN converters have passed various certifications CE/LVD/RoHS/E-Mark/TUV and the UL/REACH/SGS report,as well as the IATF 16949 which is important for you to operate the inversor for the RV,electronic vehicles,camping emergency power,truck and so on.The reasonable factory inverter price supply to you with OEM,ODM produce,welcome to negotiate with us for more information.


Product parameter(Specification) of the 3000w MPPT inverter

Pure Sine Wave Inverter With MPPT Function

■ Pure sine wave output(THD<3%);
■ High surge power up to 2 times of real loading power;
■ Loading 1.5times rated power for 10s,2times for 2s;
■ High efficiency up to 92%;
■ Power ON-OFF switch;
■ Soft start;
■ Built-in fuse;
■ More stable working functions
■ Front panel indicator for operation status;
■ Thermostatically and load controlled cooling fan;
■ Protections:Bat. low alarm/Bat. low shutdown/Bat. over shutdown/output short/input reverse protection/overload/over Temp.
■ 18 months wattanty

MODEL


KSC3000PPT
-112

KSC3000PPT
-124

KSC3000PPT
-148

KSC3000PPT
-212

KSC3000PPT
-224

KSC3000PPT
-248

INVERTER

RATED PPOWER

3000W

SURGE POWER

6000W

AC VOLTAGE

110V

230V

FREQUENCY

60±1Hz

50±1Hz

WAVEFORM

Pure sine wave inverter (THD<5%)

AC REGULATION

10%

BAT.VOLTAGE

12V

24V

48V

12V

24V

48V

VOLTAGE RANGE

10.5-15V

21-30V

42-60V

10.5-15V

21-30V

42-60V

NO LOAD CURRENT DRAW

0.65A

0.32A

0.16A

0.65A

0.32A

0.16A

EFFICIENCY

87%

88%

89%

88%

89%

90%

AC CHARGER

CHAGER CURRENT

15A

8A

4A

15A

8A

4A

INPUT VOLTAGE RANGE

80-130VAC

170-260VAC

OUTPUT VOLTAGE

12V

24V

48V

12V

24V

48V

MPPT SOLAR CHARGER

MPPT CHARGER EFFICIENCY

97%

97%

INPUT VOLTAGE RANGE

15-70V

24-70V

48-70V

15-70V

24-70V

48-70V

OUTPUT VOLTAGE

12V

24V

48V

12V

24V

48V

SOLAR CHARGER CURRENT

20A Max

PROTECTIONS

BAT.LOW ALARM(VDC)

10.8+02

21.6+0.4

43.2+0.8

10.8+02

21.6+0.4

43.2+0.8

BAT.LOW SHUTDOWN

10.2+02

20.4+0.4

40.8+0.8

10.2+02

20.4+0.4

40.8+0.8

BAT.OVER SHUTDOWN

15.5+0.2

31+0.4

62+0.8

15.5+0.2

31+0.4

62+0.8

BAT.REVERSE POLARITY

FUSE

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

410*220*150

PACKING(cm)

55*35*26,1PC/CTN,12.2KGS


Product feature and application of the 3000w MPPT inverter

①. Optional UPS or Energy saving mode(ECO);

②. Pure sine wave output(THD<0.4%);

③. High efficiency up to 90%;

④. Complete LED indication for operating status;

⑤. Full digital controlled;

⑥. Solar charging current max 20A;

⑦. AC battery charger current max 20A;

⑧. Fast transfer time 16ms;

⑨. 3-step charge wary;

⑩. MPPT solar charger;

⑪. 15 month global warranty.


Deliver,Shipping And Serving of the 3000w MPPT inverter

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process. inverter pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your 3000w MPPT inverter?

KOSUN 3000W MPPT inverter design with multi protections:low voltage, over-voltage, over-load, short circuit, reverse polarity connection,high-temperature,the inversor works with real loading 3000w power and peak power 6000w for the devices.

B. Do you accept OEM for 3000w MPPT inverter?

Yes,of course. We would like to provide you the OEM,ODM produce for 3000w MPPT inverter to get into popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;

D. How about the warranty for the 3000w MPPT inverter?

Warranty is 18 months for the 3000W MPPT inverters and the customers need to operate the devices with correct guidance from manual.
