●Pure sine wave output (THD<5%)
●POWER ON/OFF Switch
●High Efficiency Up to 92%
●Built-in ATS and AC circuit breaker
●Transfer time less than 1 6ms
●USB:5V /2.1A / Type-C:Max 35W
●RS-485 communication
●Input & Output fully isolation
●Input Protection: Reverse Polarity (Fuse)/ Under Voltage/ Over Voltage
●Output Protection: Short Circuit/ Overload/ Over Temperature / Over Voltage
| MODEL | HKC3000P-112 | HKC3000P-124 | HKC3000P-212 | HKC3000P-224 | ||
| Inverter Mode | ||||||
| Input | Normal Voltage | 12VDC | 12VDC | 12VDC | 12VDC | |
| Input Voltage Range(±0.5V) | 10.8~16VDC | 21.6~32.0VDC | 10.8~16VDC | 21.6~32.0VDC | ||
| Input Over-Voltage Protection(±0.5V) | 16VDC | 32VDC | 16VDC | 32VDC | ||
| Input Under-Voltage Protection(±0.5V) | 10VDC | 20VDC | 10VDC | 20VDC | ||
| Input Under-Voltage Warning(±0.5V) | 10.8VDC | 21.6VDC | 10.8VDC | 21.6VDC | ||
| No Load Current | <0.78A | <0.39A | <0.78A | <0.39A | ||
| Output | Continuous Output Power | 3000W±5% | ||||
| Surge Power | Load 6000W(2 Sec) | |||||
| Frequency | 50/60Hz±1Hz(setting by factory) | |||||
| Output Voltage | 100/110/115/120VAC±10% | 200/220/230/240VAC±10% | ||||
| Min.Efficiency(Full Load) | 89% | 89% | 89% | 89% | ||
| Output Waveform | Pure Sine Wave(THD<5%) | |||||
| Protection | Input Protection | Over/Under Voltage,Reverse Polarity(Internal Fuse) | ||||
| AC Output Protection | Short-Circuit,Overload | |||||
| AC Input Protection | 30 Amp Circuit Breaker | 16 Amp Circuit Breaker | ||||
| Temperature protection | Shutdown | |||||
| Charger Mode | ||||||
| AC input | Nominal Voltage/Frequency | 110VAC,50/60Hz(setting by factory) | 230VAC,50/60Hz(setting by factory) | |||
| Input Voltage Range | 90~130VAC | 180~260VAC | ||||
| Input Frequency Range | 50Hz:47~53Hz/60Hz:57~63 Hz | |||||
| Efficiency(Max.) | >88% | |||||
| Power Factor Correction(PFC) | >0.95(Max.) | |||||
| DC Output | Charging Current Range | Max.40A | Max.20A | Max.40A | Max.20A | |
| Max.Output Voltage | 14.4VDC | 28.8VDC | Max.14.4VDC | Max.28.8CDC | ||
| Battery Control (3-stage Battery Chargers) | Bulk /Absorption /Float | |||||
|
Signal and Control |

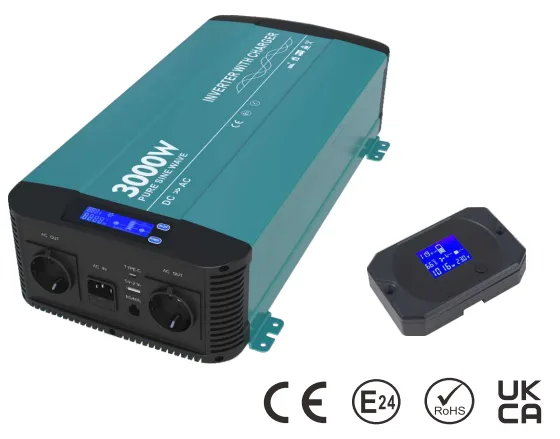

Remote Control Panel (Optional) | LCD display | ||||
| Remote Control Terminal | RS485 | |||||
| LCD display | voltage,wattage | |||||
| Relay Specification | 30 Amp/120VAC@110V system | 16Amp/250VAC@230V system | ||||
| Environment | ||||||
|
Temperature Range |
Full Load | 0~+40℃;60℃@70%power load | ||||
| Storage | 0℃~70℃ | |||||
| Humidity Range | Max93%,Non-condensing | |||||
| Cooling | Temperature&Load Controlled Cooling Fan | |||||
| Others | Dimension (W×H×D) | 489×252×118mmmm | ||||
| Weight | 8.8KG | |||||
| Communication Port | RS-485(RJ-11 type connector),Ethernet(optional) | |||||

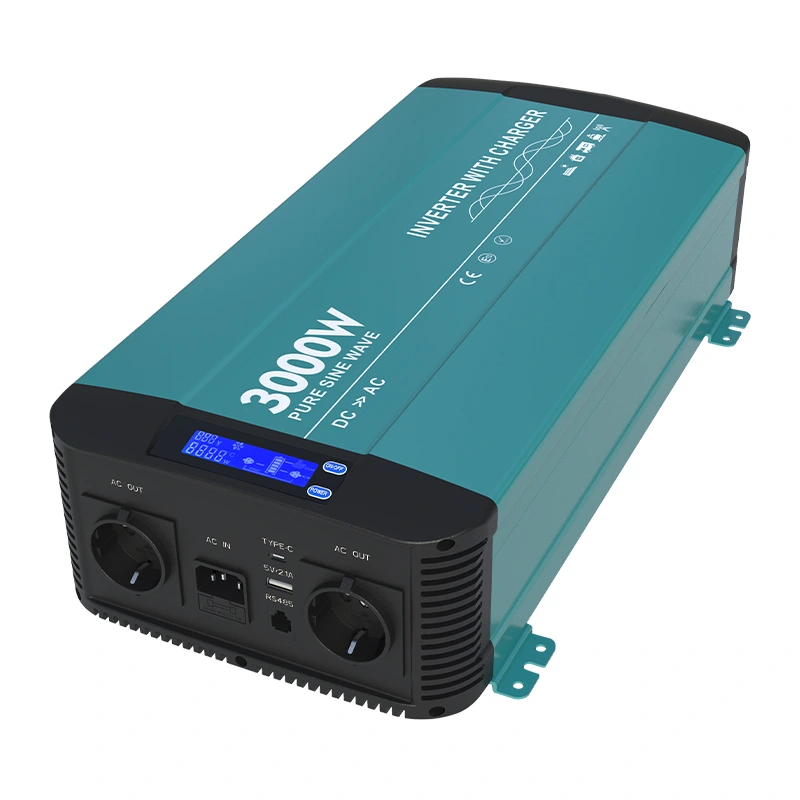

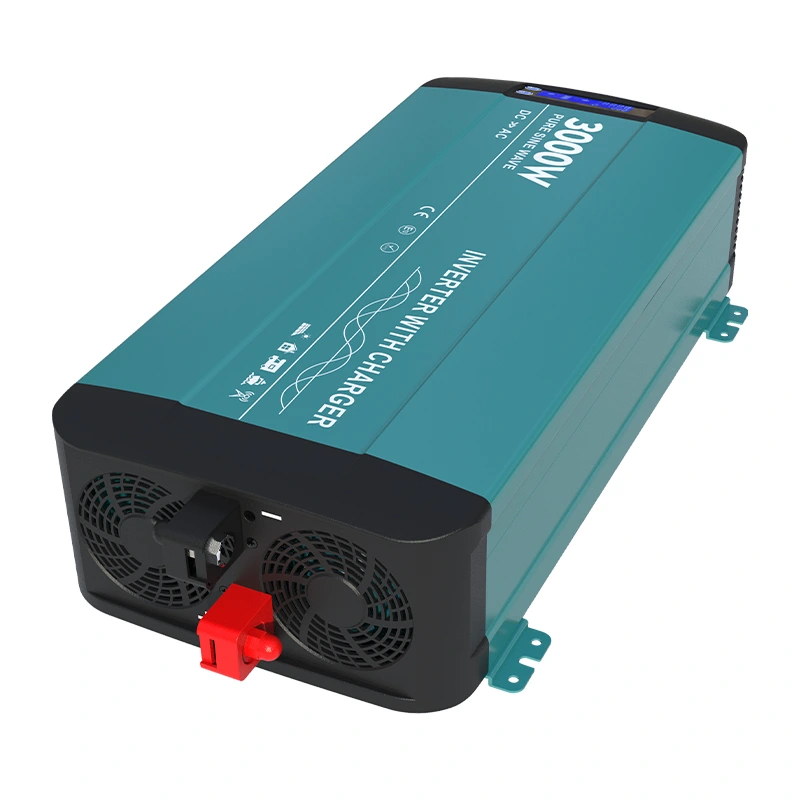

MODEL :HKC3000P
