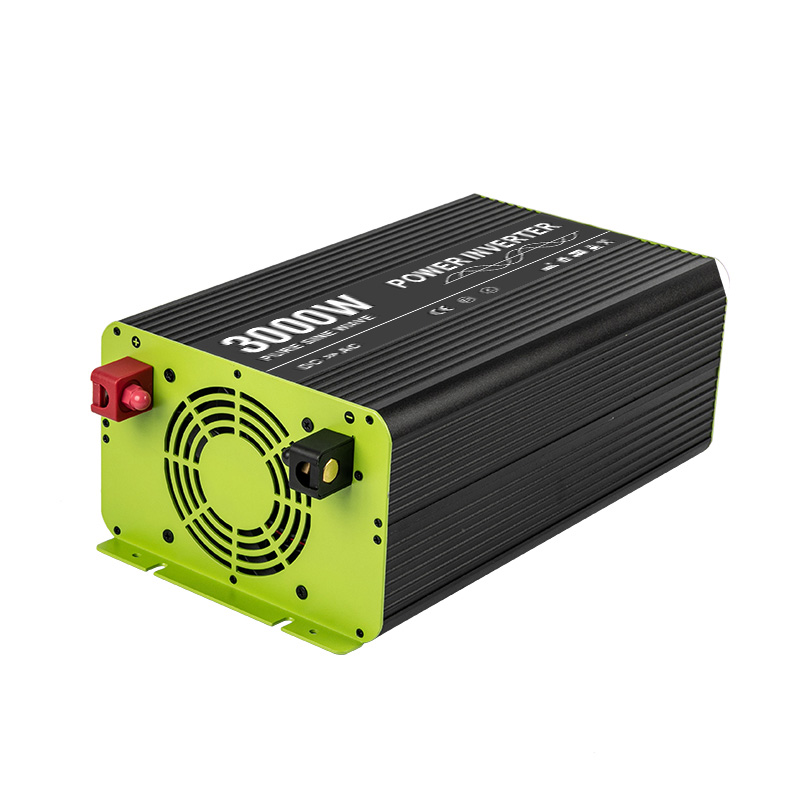

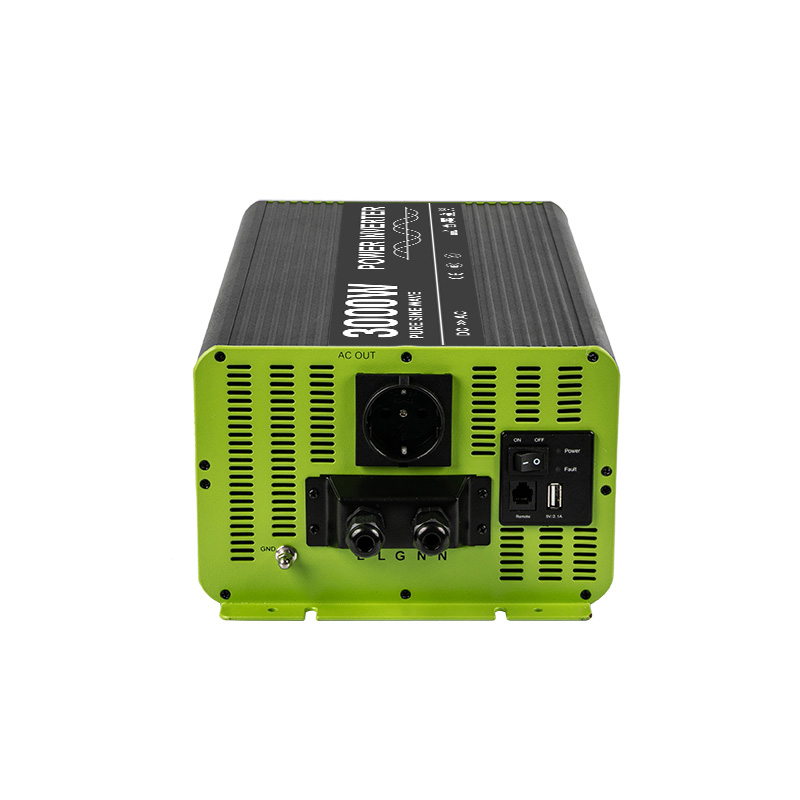

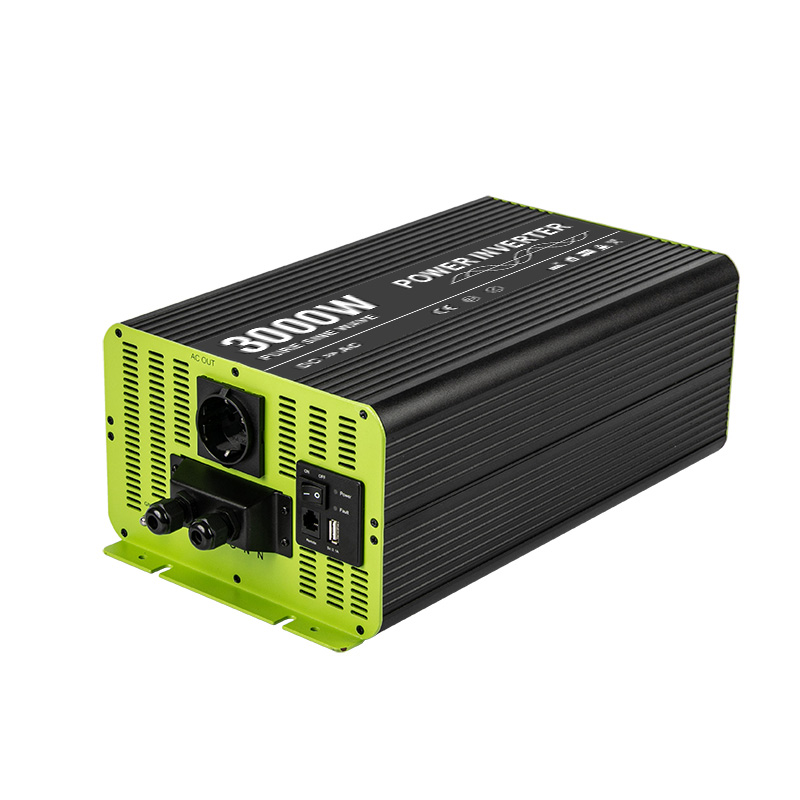

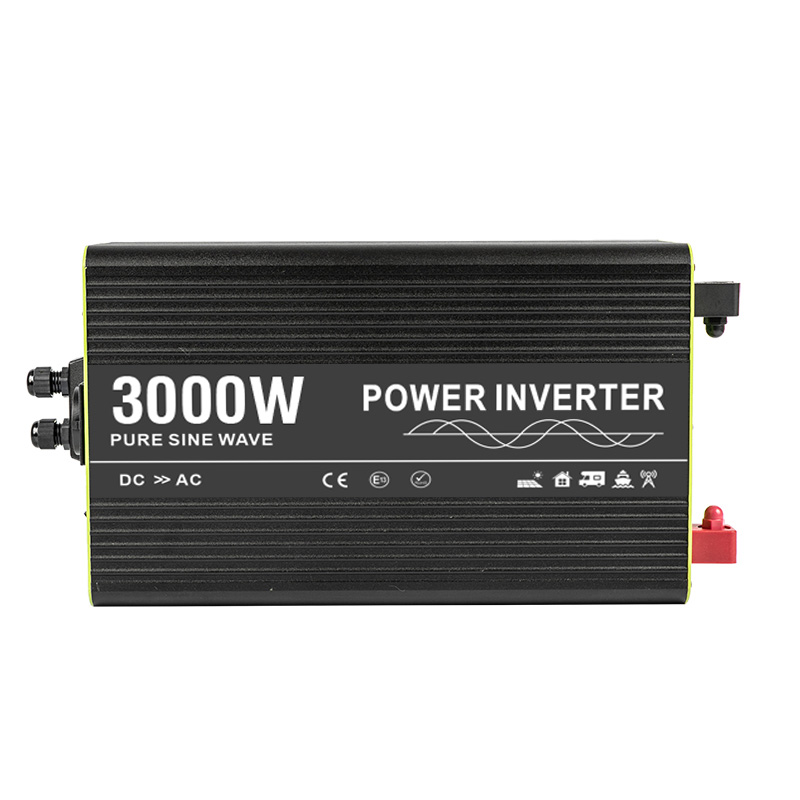

3000w Pure Sine Wave Inverter

Economic 3000w pure sine wave inverter with multi advantages and functions for the green energy,please refer as follow:
A.Continue power:3000w;
B.Surge power:6000w(2s);
C.DC input 12V,24V,48V(Optional);
D.AC output:110v,120v,220v,230v,240v(optional);
E.Frequency:50Hz,60Hz(optional;
F.LED indicators show the condition of the inverter

Model:RS3000P

Send Inquiry    PDF Download

Product Description

A. Portable 3000w pure sine wave inverter dc to ac off grid power converter supply by professional manufacture and supplier which has built over 10 years and developed with advanced equipment for the strict and standard process of produce with factory competitive price for the bulk orders,KOSUN converter have multi protections Protection feature(12V input inverter sample):

Input low voltage protection:when the battery voltage is below 10.5± 0.5Vbuzzer sount 2 times which indicates DC power supply voltage is descending and batteries need to recharge;

When input voltage is below 10.0±0.5v,buzzer sound 3 times and red light turn on,AC output will be automatically shut off.

Input over voltage protection:When input voltage reach 16.0v±0.5v,buzzer sound 4 times and red light turn on,the AC output will be shut off automatically;

Short Circuit protection: when short circuit occur,buzzer sound 11 times and red light turn on,output will be shut off;

Over load protection: When overloads occur,buzzer constantly sound and red light turn on,output will be shut off.

Reverse polarity protection:when battery terminals are reverse connected,the inverter won’t work until the correct connect.

Over temperature protection:when heat sink temperature exceeds 45℃,the inner cooling fan will automatically turn on to cool the inverter;when inner temperature exceeds 75℃,buzzer sound 5 times and red light turn on,AC output will automatically shut off.

3000w pure sine wave inverters must pass the vibration test,high & low temperature alternating test,salty spray test for all solar power inverter. Each unit has an accurate test report when the QC test the inverter and all the inverters do with aluminum shell and plastic terminals for safety operation.


Product Parameter (Specification) of the 3000w pure sine wave inverter

MODEL


RS3000P-112

RS3000P-124

RS3000P-148

RS3000P-212

RS3000P-224

RS3000P-248

OUTPUT

RATED POWER

3000W

SURGE POWER

6000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

300A

150A

75A

300A

150A

75A

NO LOAD CURRENT DRAW

<1.3A

<1.18A

<0.97A

<1.3A

<1.18A

<0.97A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

Test report No.C 8 1 1 5 2072 ; UL order No.1 3 5 8 2 0 0 7

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

360*220*150

PACKING(cm)

55*34*25 ;1pc/CTN,10.5KG


Product Feature And Application of the KOSUN 15000W continue loading pure sine wave power inverter

①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 3000w pure sine wave inverter

A. CE Compliance to EN55032

B. RoHS Compliance to EN50581

C. LVD Compliance to EN60950-1

D. E-Mark E13

E. IATF 16969

F. REACH/UL/TUV report


Deliver,Shipping And Serving of the 3000w pure sine wave inverter

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.3000w pure sine wave inverter pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your company?

We are one of professional manufacture for various types of inverter:modified sine wave types and pure sine wave types from 2011;

B. Do you accept OEM produce?

Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.
