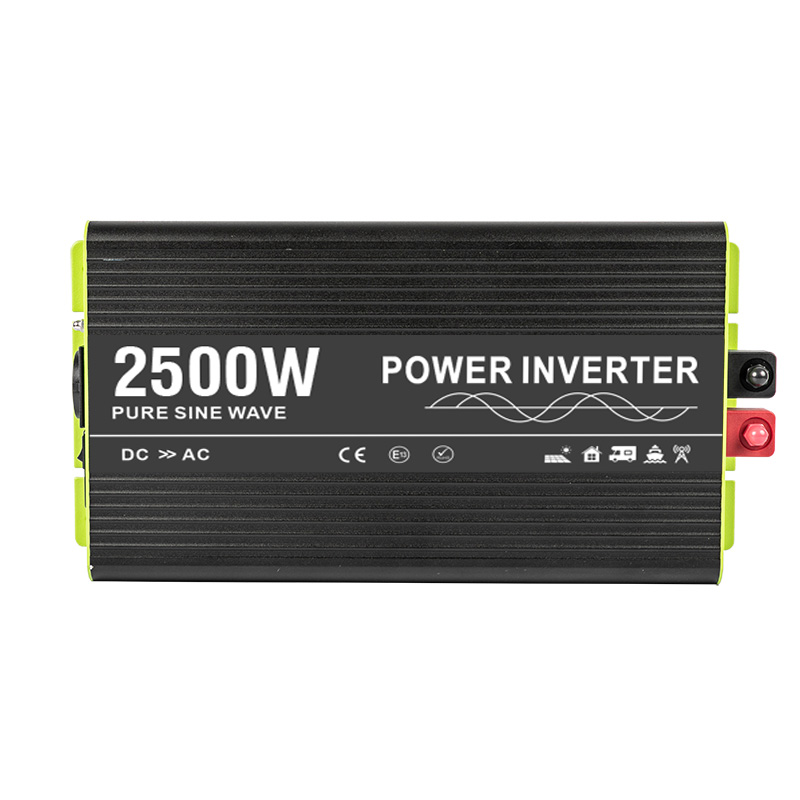

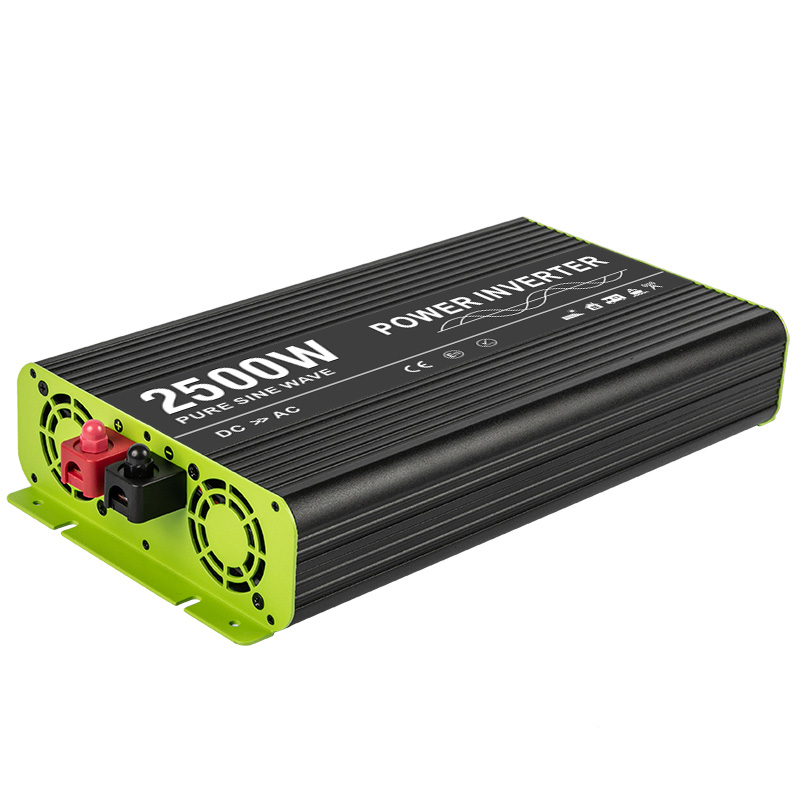

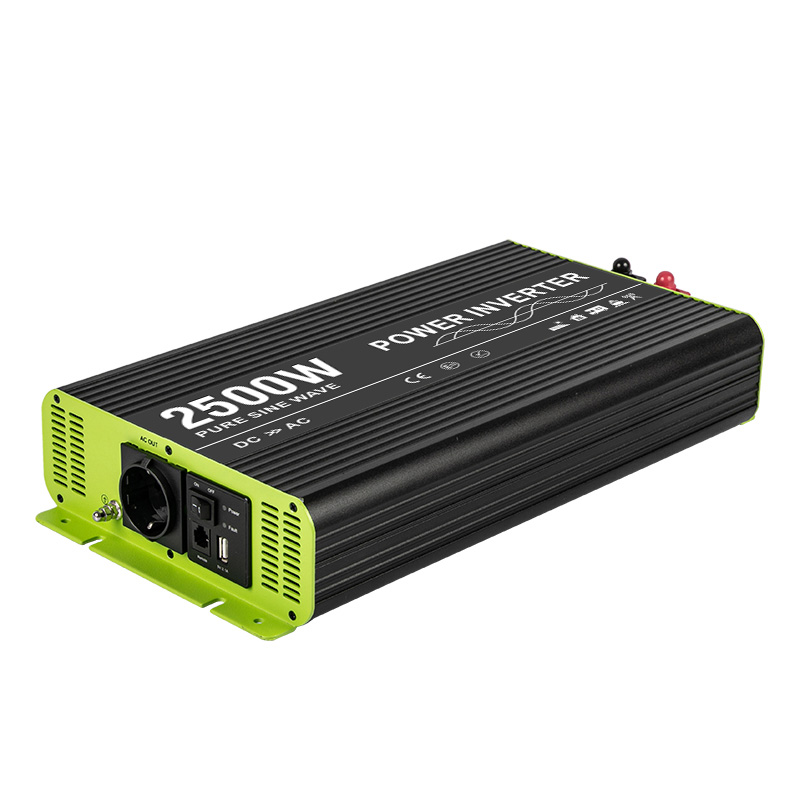

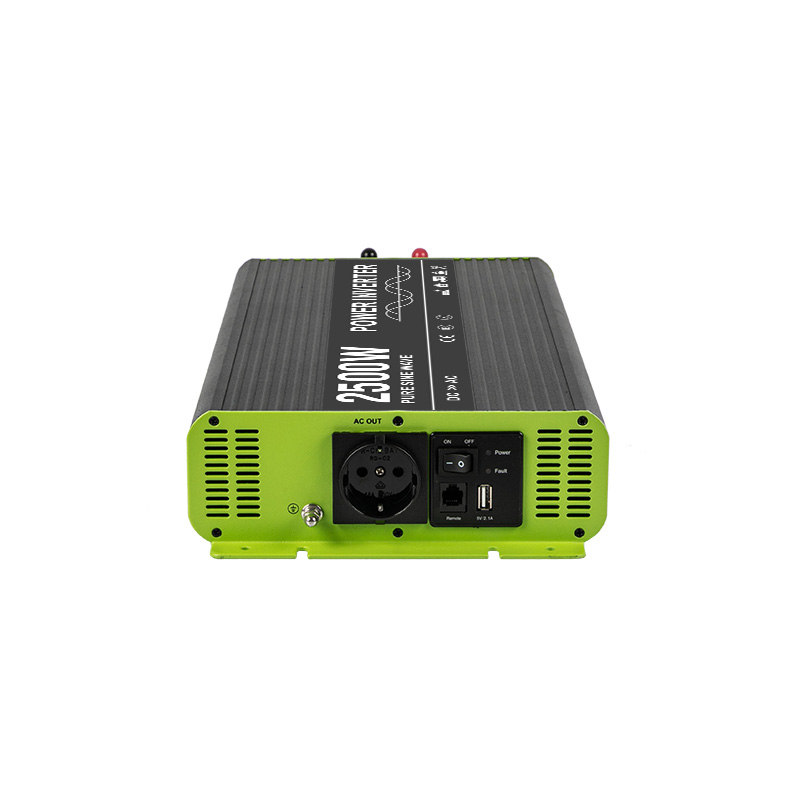

2500w Pure Sine Wave Inverter
  • 2500w Pure Sine Wave Inverter2500w Pure Sine Wave Inverter
  • 2500w Pure Sine Wave Inverter2500w Pure Sine Wave Inverter
  • 2500w Pure Sine Wave Inverter2500w Pure Sine Wave Inverter
  • 2500w Pure Sine Wave Inverter2500w Pure Sine Wave Inverter

2500w Pure Sine Wave Inverter

KOSUN 2500w pure sine wave inverter dc to ac single phase converter with multi protections:low-voltage,over-voltage,over-loading,high-temperature,short circuit, reverse polarity connection which ensure the stable quality of the inverters for the high efficiency loading appliances.Promise the real loading 2500w and peak power 5000w for the working condition.Main function of soft start confirm the devices start to work regularly.

Model:KS2500P

Send Inquiry    PDF DownLoad

Product Description

KOSUN solar power inverter dc to ac 2500w pure sine wave converter provide with factory reasonable quotation for the trial order,small order and bulk orders,professional manufacture and supplier which has built over 10 years and developed with advanced equipment for the strict and standard process of produce,solar power inverter 2500w pure sine wave design with aluminum shell and plastic terminals for safety operation,KOSUN inverters sale to all over the world on the basis of multi advantages of each unit,KOSUN converter win a higher reputation for the good quality.


Product Parameter (Specification) of the 2500w pure sine wave inverter

New Series Pure Sine Wave Inverter

★★★★★ Highly recommended products

■ Pure sine wave output(THD<3%);
■ High surge power up to 2 times of real loading power;
■ Loading 1.5times rated power for 10s,2times for 2s;
■ High efficiency up to 92%;
■ Power ON-OFF switch;
■ Soft start;
■ Built-in fuse;
■ More stable working functions with TP56 safety terminals
■ Front panel indicator for operation status;
■ Thermostatically and load controlled cooling fan;
■ Protections:Bat. low alarm/Bat. low shutdown/Bat. over shutdown/output short/input reverse protection/overload/over Temp.
■ 18 months wattanty

MODEL


RS2500P-112

RS2500P-124

RS2500P-148

RS2500P-212

RS2500P-224

RS2500P-248

OUTPUT

RATED POWER

2500W

SURGE POWER

5000W

AC VOLTAGE

Factory setting set at 100V/110V/120V AC

Factory setting set at 220V/230V/240V AC

FREQUENCY

50Hz/60Hz optional

WAVE FORM

Ture sine wave(THD<3%) at rated input voltage

AC REGULATION

±10%

STANDARD RECEPTACLES

Schuko/UK/Australia/Universal/USA/France/JP/Brazile

FRONT PANEL INDICATOR

Operation and fault status

INPUT

BAT.VOLTAGE

12V

24V

48V

12v

24V

48V

VOLTAGE RANGE

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

9.8-16.2VDC

19.7-32.3VDC

39.5-63.5VDC

DC CURRENT

250A

125A

62.5A

250A

125A

62.5A

NO LOAD CURRENT DRAW

<1.1A

<0.98A

<0.77A

<1.1A

<0.98A

<0.77A

EFFICIENCY

89%

>90%

92%

88%

90%

91%%

BATTERY TYPES

Recommend use Open & sealed lead acid battery

BATTERY INPUT PROTECTION

BAT.LOW ALARM

10.5±0.2V

21±0.3V

42±0.5V

10.5±0.2V

21±0.3V

42±0.5V

BAT.LOW SHUTDOWN

10.2±0.2V

20±0.3V

40±0.5V

10.2±0.2V

20±0.3V

40±0.5V

BAT.OVER SHUTDOWN

16±0.2V

32±0.3V

64±0.5V

16±0.2V

32±0.3V

64±0.5V

REVERSE POLARITY

yes

OUTPUT PROTECTION

OVER TEMPERATURE

≥45ºC or ≥60% rated power, cooling fan open;≥70ºC,Shut off.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

OUTPUT SHORT

Protection type:Shut down o/p voltage;re-power on to recover

OVER LOAD

100%-120% rated load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover; by internal Thermistor detect on heatsink of power transistor

ENVIRONMENT

WORKING TEMP.

-15℃~+40℃@100% load;60℃ @50% load

WORKING HUMIDITY

20%90% RH non-condensing

STORAGE TEMP.

-30℃~+70℃/-22~+158℉

STORAGE HUMIDITY

10%95% RH non-condensing

SAFETY

CE

Compliance to EN55032

LVD

Compliance to EN60950-1

ROHS

Compliance to EN50581

E-MARK

E13

OTHERS

ISO9001/IATF16949/BSCI

UL test

B08H52NN2M/ B08H54PCDT/ B08H4TMTJC/ B08H51DTM8

REACH

No.:1907/2006

certificate of registration

IATF 16949:2016

111458/A/0001/SM/En

OTHERS

USB port

5V/2.1A

DIMENSION L*W*H (mm)

380*220*90

PACKING(cm)

50*30.5*36 ;2pcs/CTN,15KG


Product Feature And Application of the KOSUN 15000W continue loading pure sine wave power inverter

①.1.5 times rated power for 10s,2 times for 2s;
②.digital display for current and voltage
③.Fuse:built-in;
④.Round shell and plastic terminals TP-56 for safety operating;
⑤.cooling fan:temperature and load controlled;
⑥.USB:5V/2.1A
⑦.protections:Over temperature/over load/short circuit/reverse polarity protection/earth leakage;
⑧.Applications:electrical applications like TV/microwave/washing-machine /air-conditioner /hair dryer /oven;electrical vehicles,truck,yacht,outside portable power source for lighting,charging etc.


Product Qualification of the 2500w pure sine wave inverter

A. CE Compliance to EN55032

B. RoHS Compliance to EN50581

C. LVD Compliance to EN60950-1

D. E-Mark E13

E. IATF 16969

F. REACH/UL/TUV report


Deliver,Shipping And Serving of the 2500w pure sine wave inverter

It is a flexible transportation for the power inverter to clients such as express/train/ocean/air etc which could meet different customers choice.The factory manage the materials in advance after confirming the order,and then,produce the cargoes which save more time for the whole process.2500w pure sine wave inverter pack with customized color box or neutral packages according to the customer demands.


FAQ

A. What character of your company?

We are one of professional manufacture for various types of inverter:modified sine wave types and pure sine wave types from 2011;

B. Do you accept OEM produce?

Yes,of course. We would like to provide you the OEM,ODM produce for popular market which will improve the market share on your region.

C. Whether you accept small order?

Yes,small trial order is welcomed,contact with us for more information you want,we are glad to offer you satisfied service;

D. How about the warranty?

Warranty is 18 months for all goods.
